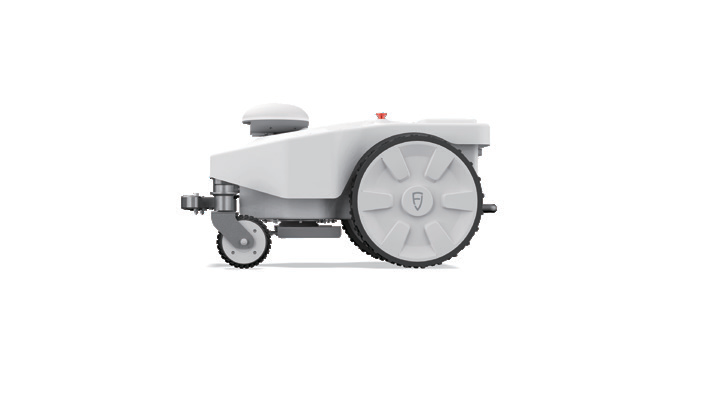

FJD FRX Robotic Lawn Mower
Professional Lawn Management Made Affordable

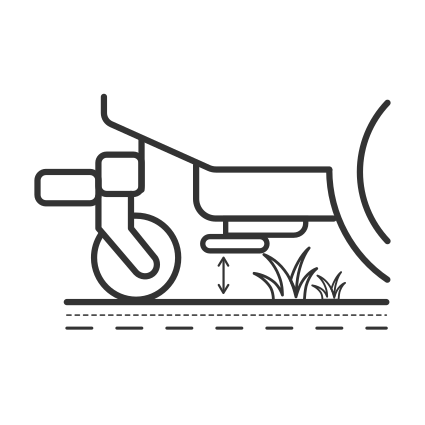

Adjustable Cutting Height
10-100mm

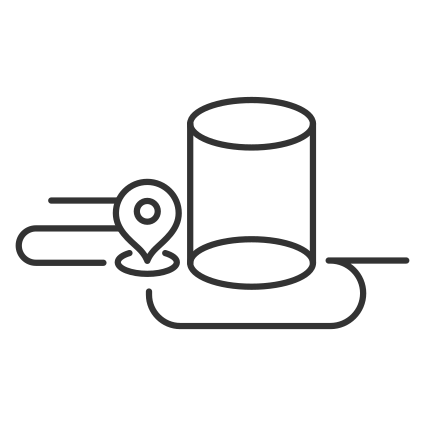

Vision-Based Object
Avoidance
96,000 m² in 3 Days
(Fast Battery Swapping)
Virtual Boundary with Network RTK and 25mm accuracy
RTK+Vision Navigation
Fast Battery Swapping
24x7 Mowing
Smart Path Planning
Fleet Management
& Multi-Field Management
Professional Mowing Solution For Golf Courses
Fleet Management
Cloud maps control for multi-field, multi-mower operation.
Up to 96,000㎡ in 3 Days
*Calculated based on 24-hour operation. Actual coverage depends on user working hours.

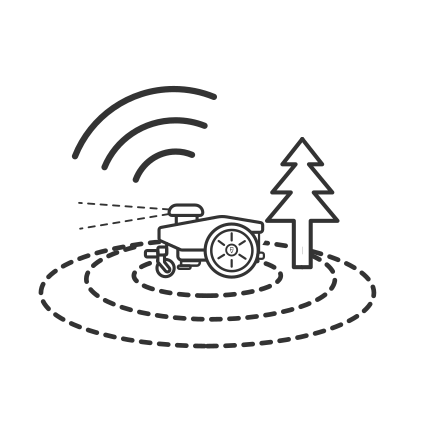

RTK + Vision Navigation
Stable mowing performance even under the tree shades.

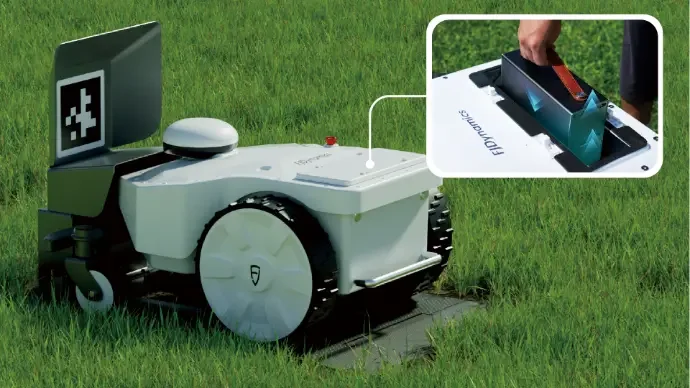

Flexible Charging Options
Fast battery swapping for 24/7 mowing.

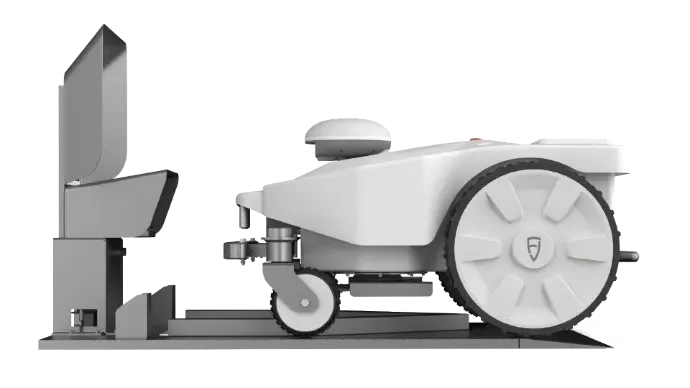

Auto-charging for fully unmanned operation.
Damage-Free Unmanned Mowing
Lightweight & turf-friendly design

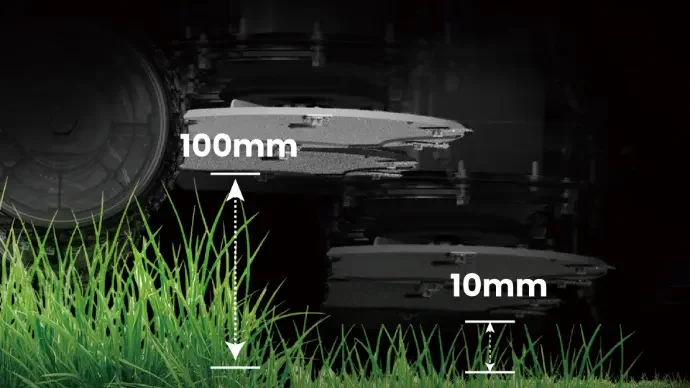

Ultra-Wide Cutting Height Range
Adjustable from 10mm to 100mm — perfect for both fairways and roughs.

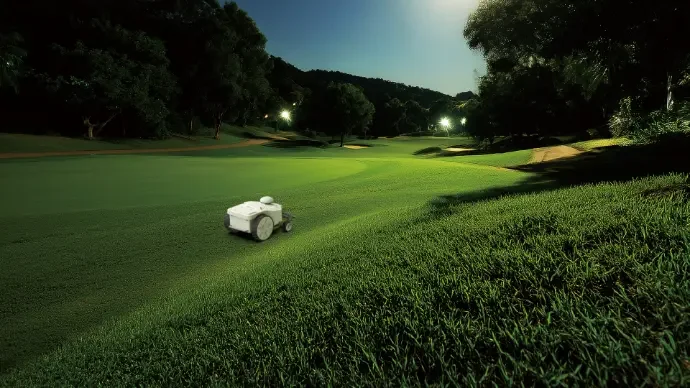

Nighttime Quiet Operation
Area Free up the course during the day
Professional Mowing Solution For Sports Fields

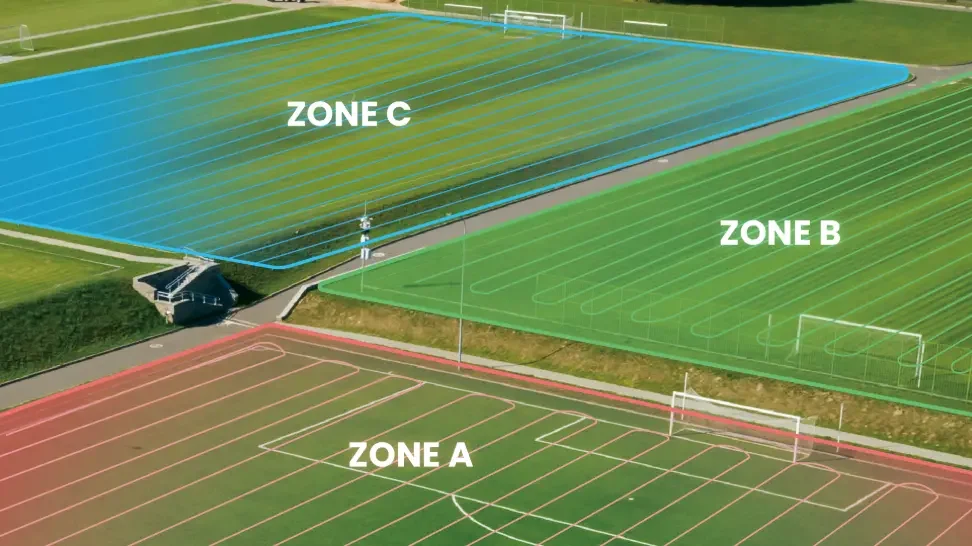

Multi-Field Management for Efficient Mowing
Achieve simultaneous mowing on multiple sports fields and automatically go to the next field upon completion.
Hassle-Free Mowing and Precise Trimming
Support 10mm minimum height, ideal for sports fields. One full charge covers the whole field.

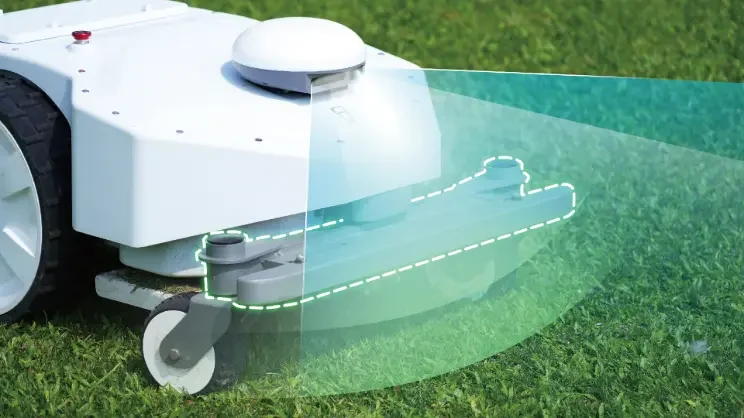

Safety First & Easy To Use
Dual Protection, Safety First
Effectively avoid obstacles and ensure safe operation.

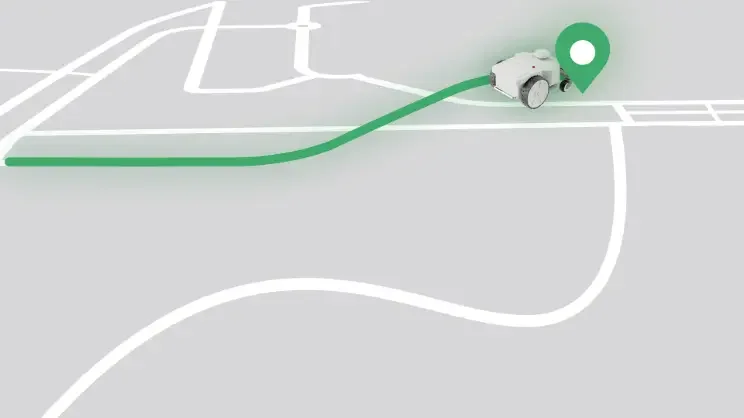

GPS Anti-Theft Tracking
Offer an optional anti-theft module for up to one month of theft protection during mower power-off.

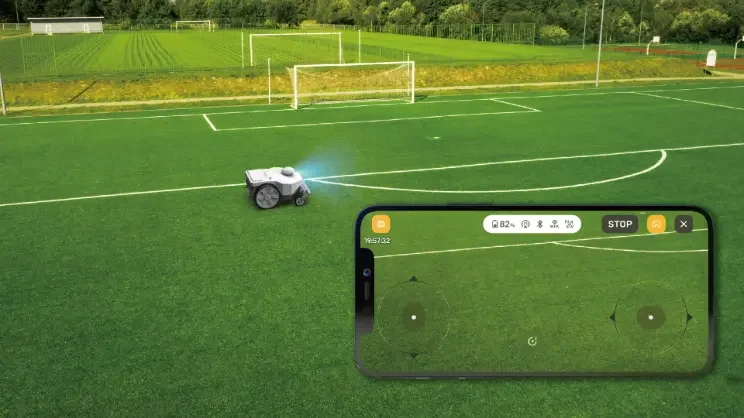

Remote App Control and Image Feed
Monitor the status of the mower and control the operation from far away. With image feed, you can check the situation of the field at any time without being on-site.

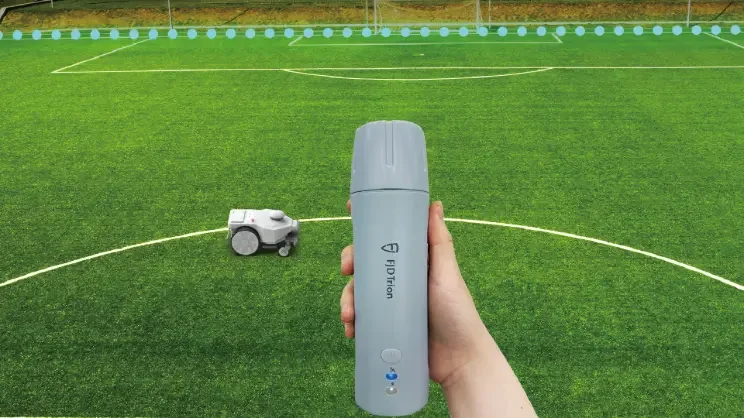

Quick Mapping with Handheld Marker
Optional handheld marker for fast mapping in minutes—no mower needed onsite.

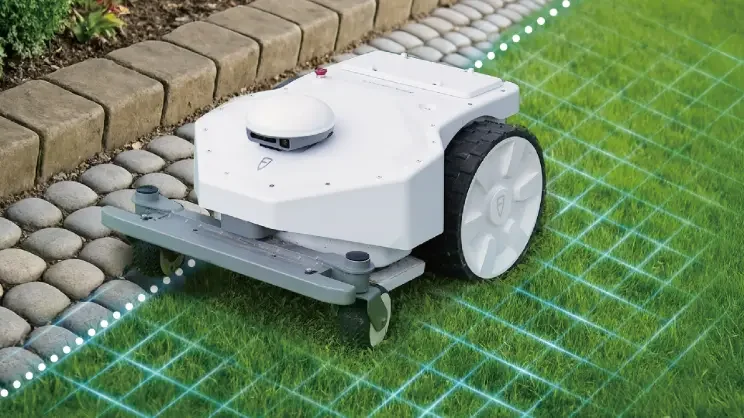

Automatic Boundary Recognition
Automatically follow edges for precise cuts, reducing the need for mapping.
*Future upgrades via OTA.
High-Performance Chassis

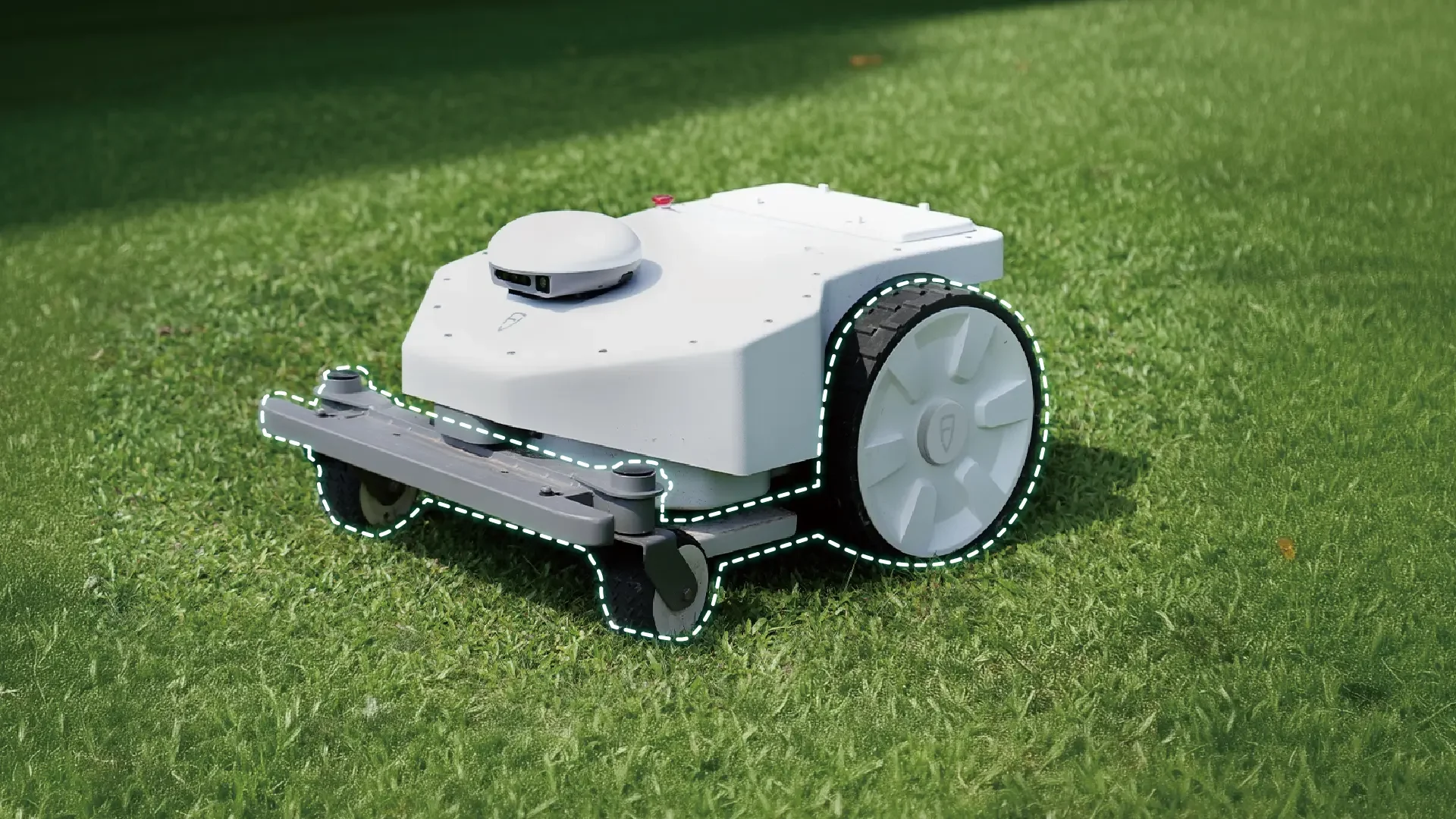

Ultra-Light Chassis for Easy Transportation
Ultra-light chassis design for effortless handling and easy transport by just two people.

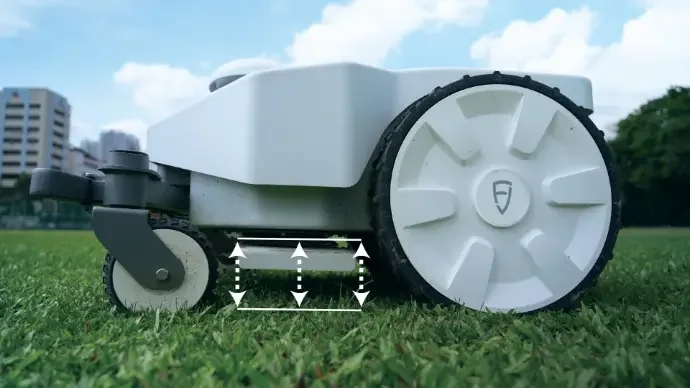

Cutting Disc Auto-Lifting
Adjust the mowing height in real time via remote control based on seasonal changes and mowing needs.

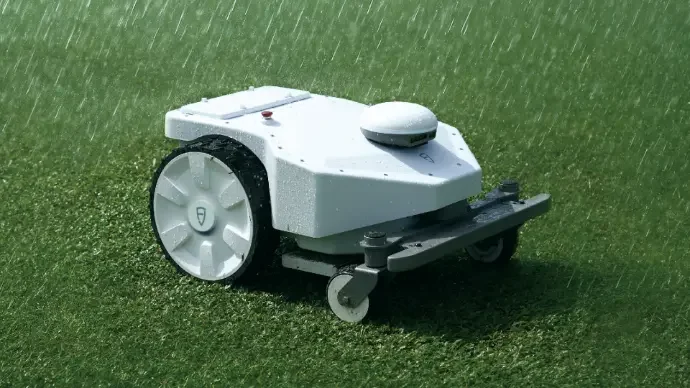

IPX5 Waterproof Design
Eliminate the worry of water immersion, whether it is rainy day operation or daily cleaning.

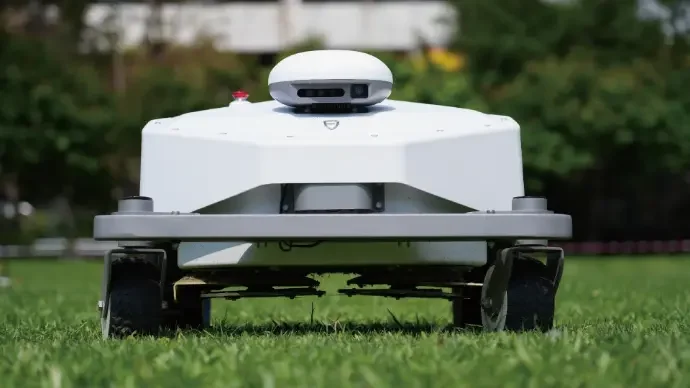

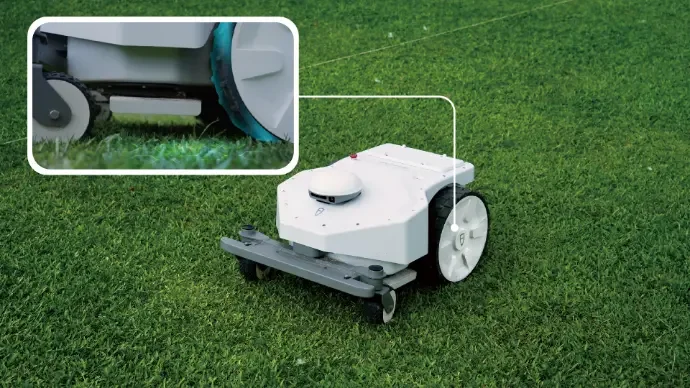

Front Suspension Chassis for Stable Operation
Ensure stable operation on uneven terrain, providing a smooth mowing
experience.
Suspension Cutting Disc
Feature an independent suspension unit for each cutting disc that automatically adapts to uneven terrain, ensuring a flawless mowing result without scalp damage.
Application Scenarios
SPORT FIELDS
PUBLIC GREEN SPACES
GOLF COURSES
Specifications
| Specifications | FRX Swap | FRX Stationary |
|---|---|---|
| Mowing Capacity | ||
| Automatic charging mode | - | |
| Max mowing area per charge | 4000m² (0.5 kWh) / 8000m² (1 kWh) | 4000m² (0.5 kWh) / 8000m² (1 kWh) |
| Max climbing ability | 20° | 20° |
| Max mowing slope | 15° | 15° |
| Front suspension chassis | ● | ● |
| Boundary type | Virtual wire | Virtual wire |
| Cutting mode | Custom angle mowing | Custom angle mowing |
| Fast battery swapping mode | ● | ● |
| *Calculated based on 24-hour operation. Actual coverage depends on user working hours. | ||
| 72h Maximum coverage | 96,000m² (23.7 acres) | 60,000m² (14.8 acres) |
| 24h Maximum coverage | 32,000m² (7.9 acres) | 20,000m² (4.9 acres) |
| Overall Dimensions | ||
| Weight | 62 kg | 83.7 kg |
| Dimensions | 967.6*757*513 mm / 38.1*29.8*20.2 in. | 1278*782*739.9 mm / 50.3*30.8*29.1 in. |
| Software update | OTA | OTA |
| Connectivity | 4G, Wi-Fi, & Bluetooth | 4G, Wi-Fi, & Bluetooth |
| IP rating | IPX5 | IPX5 |
| Cutting System | ||
| Cutting height | 10–100 mm / 0.4-4 in. | 10–100 mm / 0.4-4 in. |
| Cutting width | 520 mm / 20.5 in. | 520 mm / 20.5 in. |
| Travel speed | 0–4 km / h | 0–4 km / h |

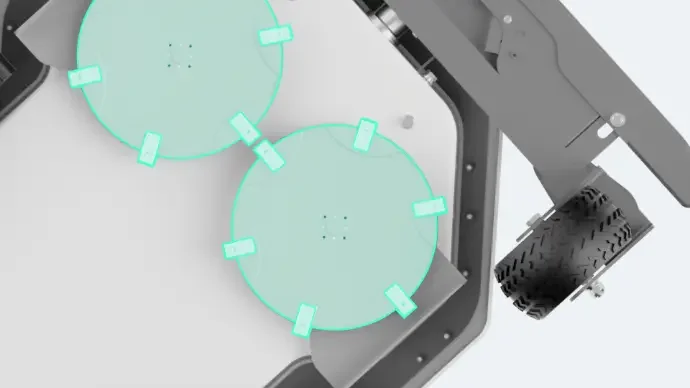

| Cutting disc (6 pivoting razor blades per disc) | 2 | 2 |
| Battery & Charging | ||
| Charging mode | Manual (only) | Manual & automatic |
| Fast battery swapping | ● | ● |
| Battery life | 160 min | 160 min |
| Charging time | 120 min | 120 min |
| Positioning and Navigation | ||
| Positioning | RTK & vision | RTK & vision |
| NTRIP | ● | ● |
| FJD base station & CORS station | ● | ● |
| Factory Configuration | ||
| Complete mower | ● | ● |
| Portable charger | ● | ○ |
| Auto-charging station | - | ● |
| 0.5 kWh battery | ● | ○ |
| 1 kWh battery | ○ | ● |
| High-strength cutting blade | ● | ● |
| Handheld point maker | ○ | ○ |
| FJD base station | ○ | ○ |
| Independent anti-theft module | ○ | ○ |
*○ Optional / ● Standard / - Unavailable
