Professional Lawn Management Made Affordable.
RTK & Vision Precision Navigation

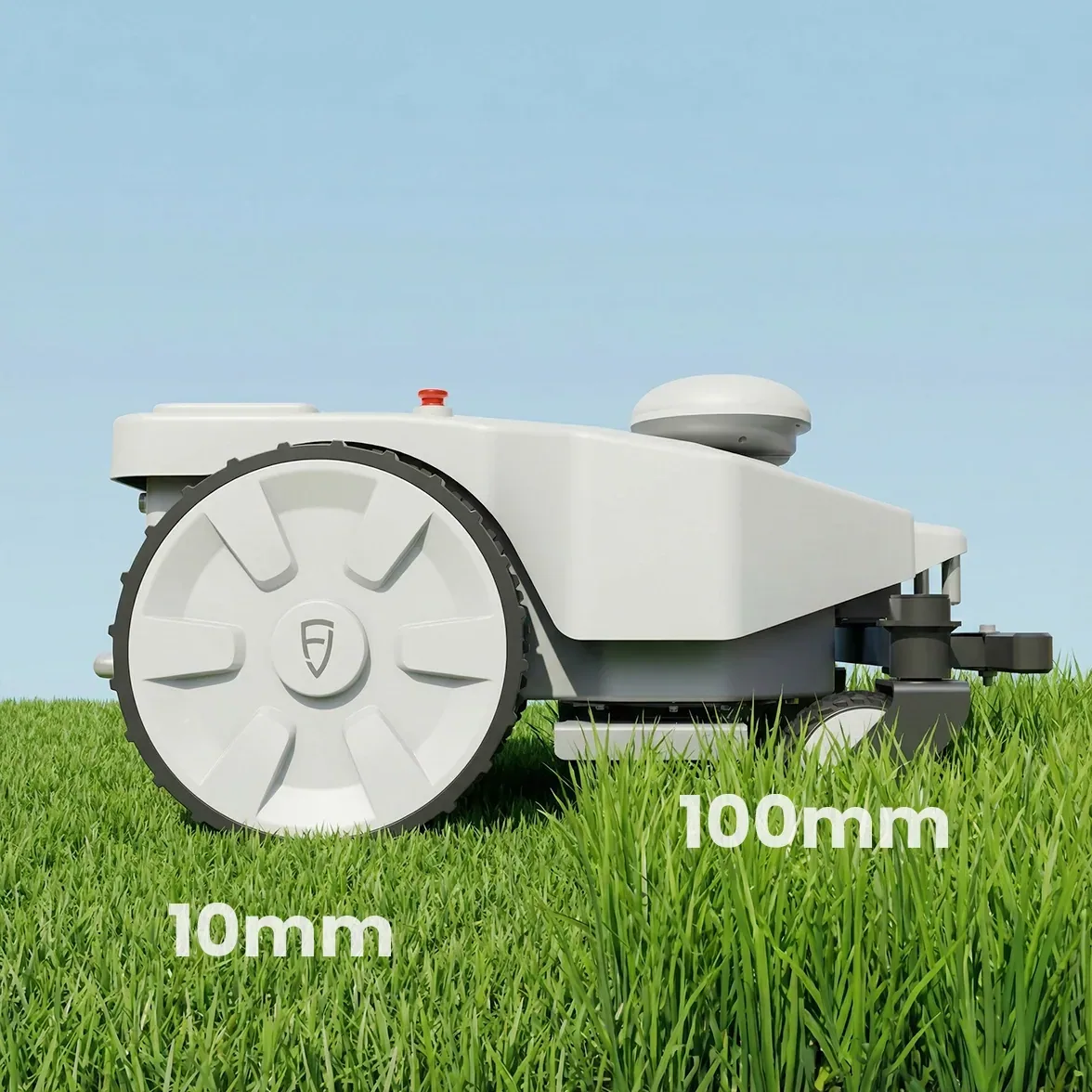

Precision Cutting 10-100 mm
Multi-Zone Management
Remote App Control
All-Day Autonomous Mowing
Mowing Area 96,000m²
Equipped with a 1 kWh battery, it can mow up to 8,000 ㎡ (2 acres) on a single charge, covering up to 96,000 ㎡ (23.7 acres) over 3 days.

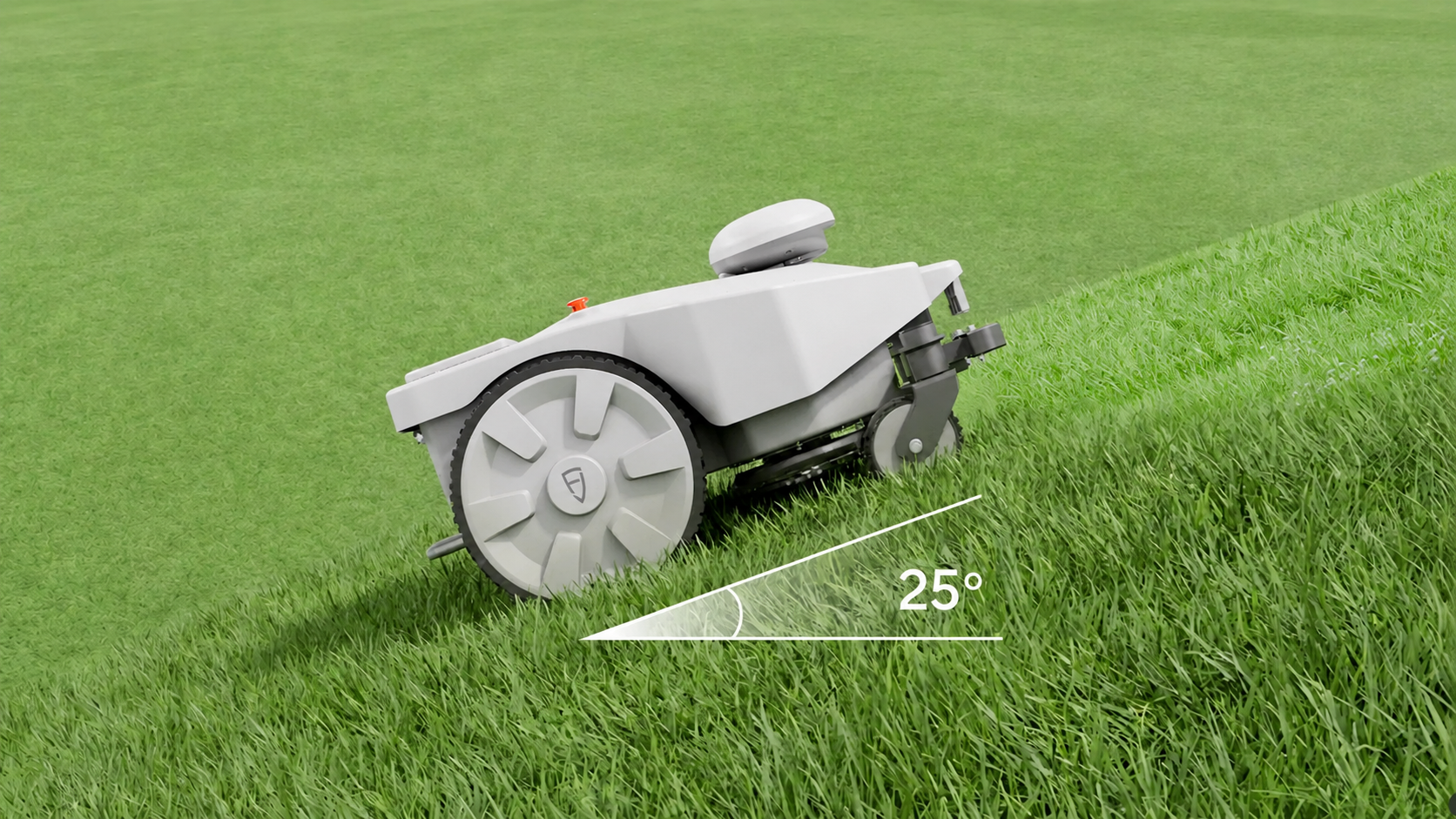

Conquer 25° Slopes with Ease
Combining a high-performance motor with a compact chassis, FRX masters 25° hillsides as easily as flat ground.

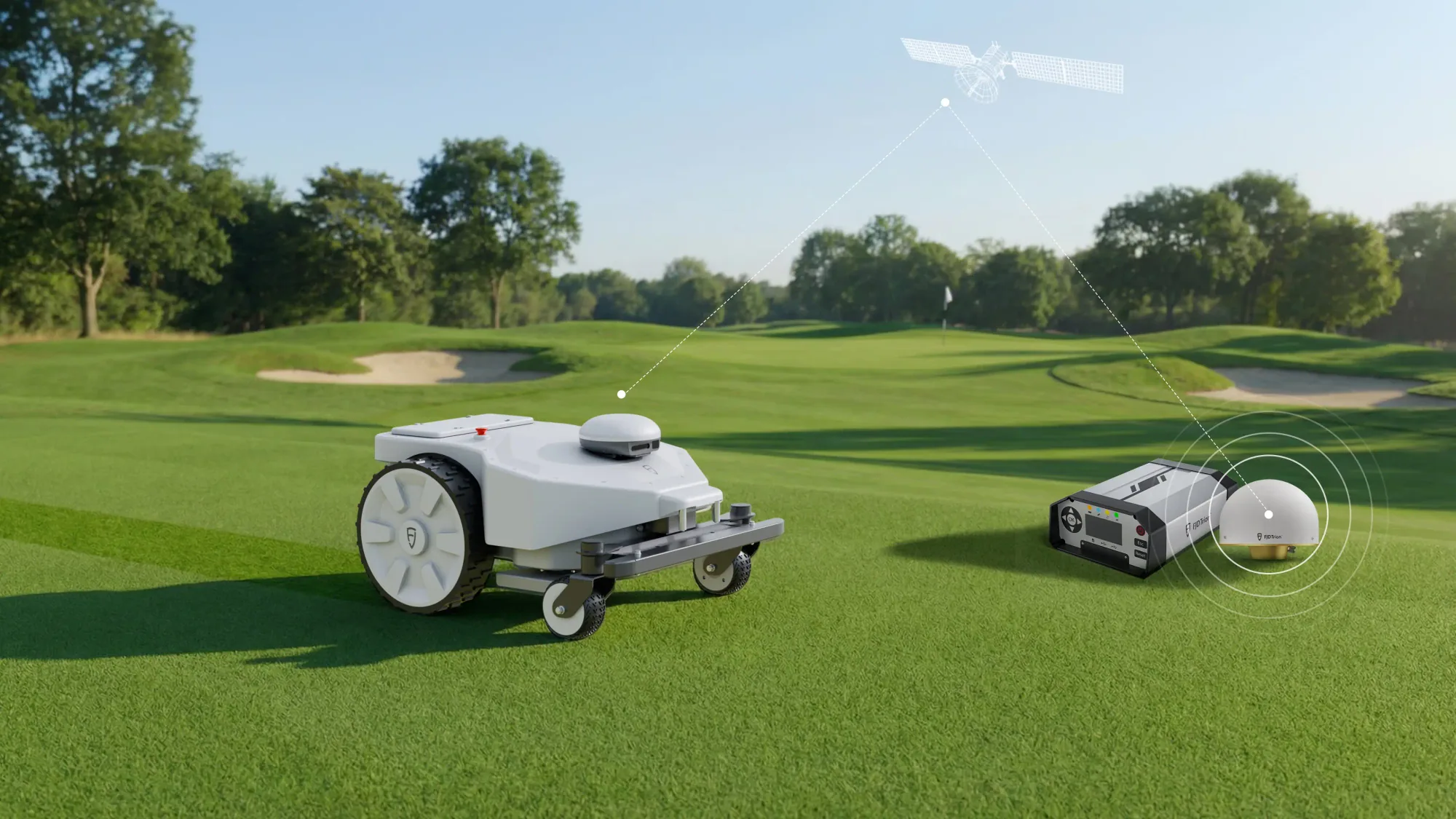

RTK + Vision Navigation
RTK + Vision navigation helps FRX maintain stable mowing performance across open fields, tree-shaded areas, and complex turf environments.

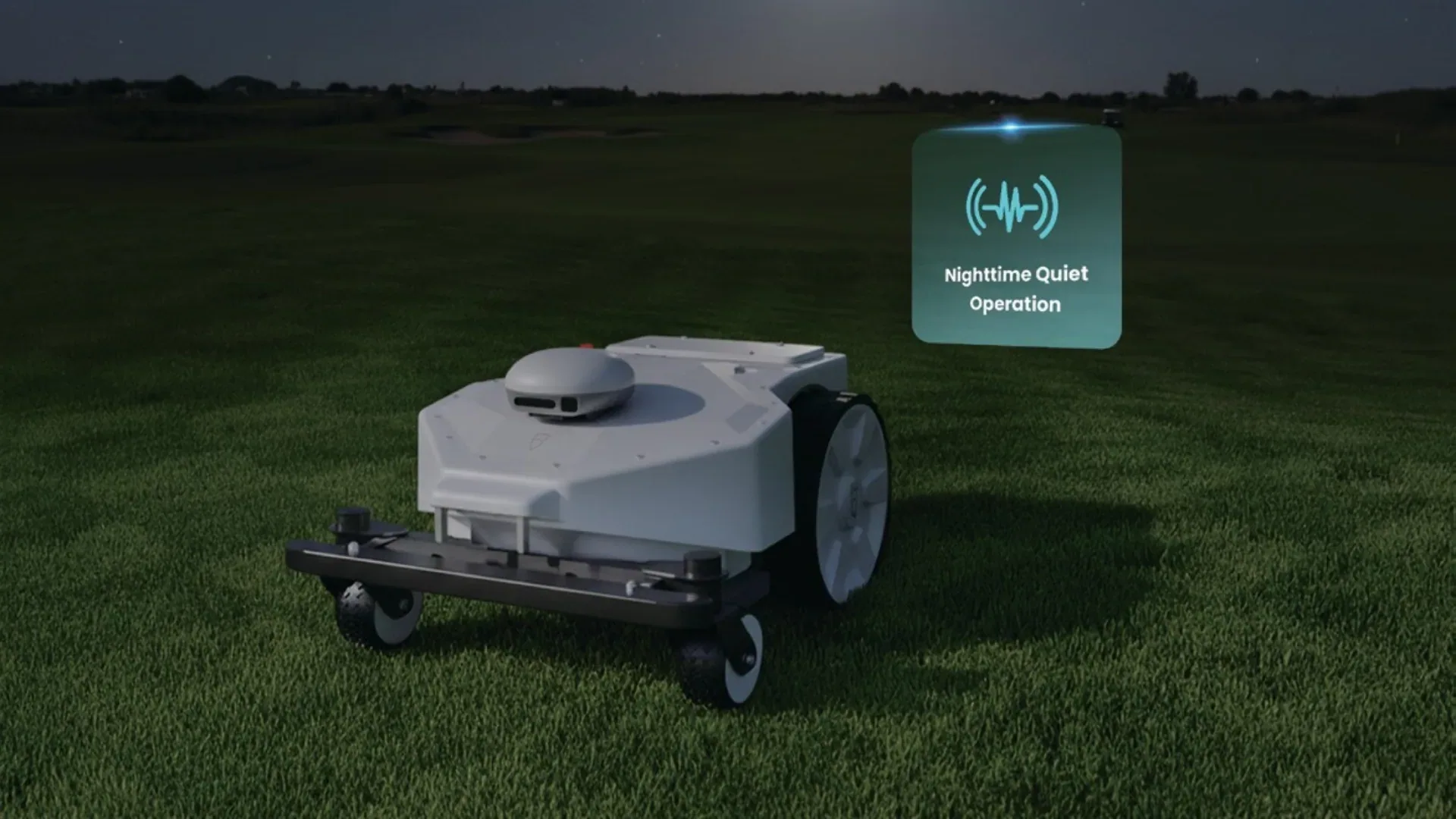

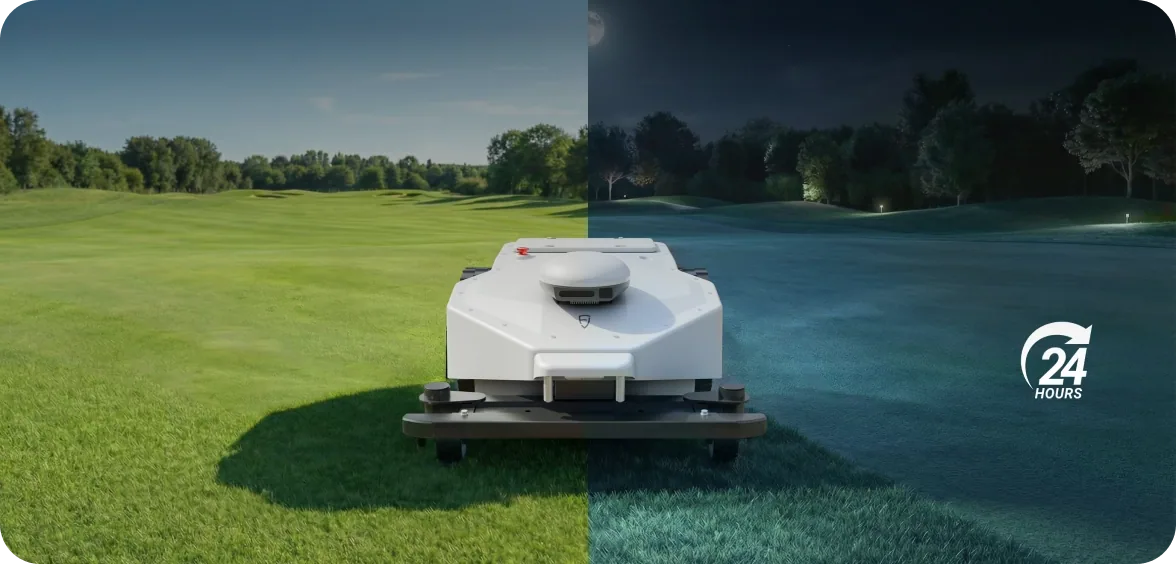

Nighttime Quiet Operation
Allow for silent mowing at night to maximize course availability during the day.
Flexible Charging Options

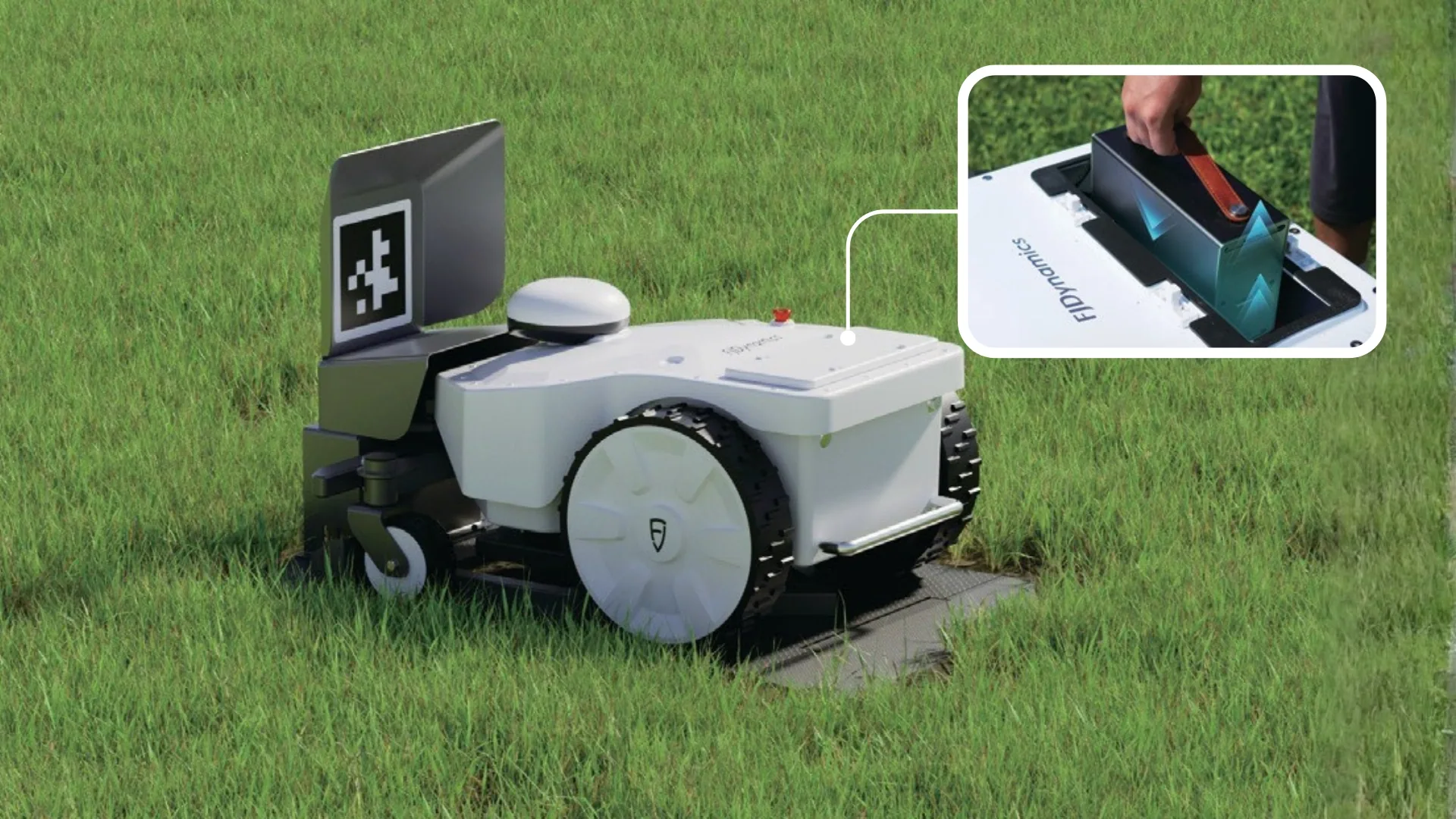

Choose fast battery swapping for 24/7 mowing or auto-charging for fully unmanned daily operation.

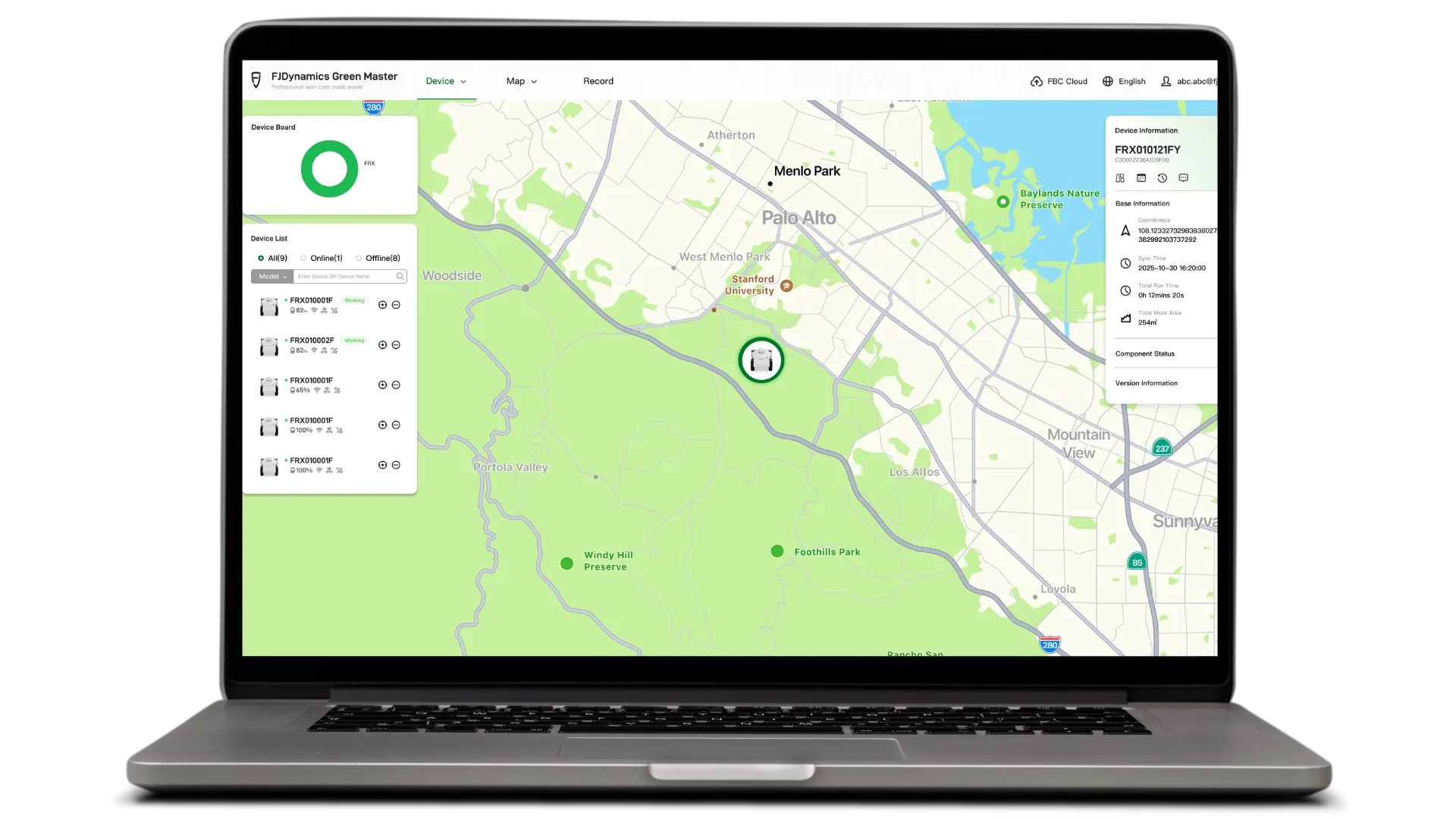

Smarter Management, Safer Autonomy

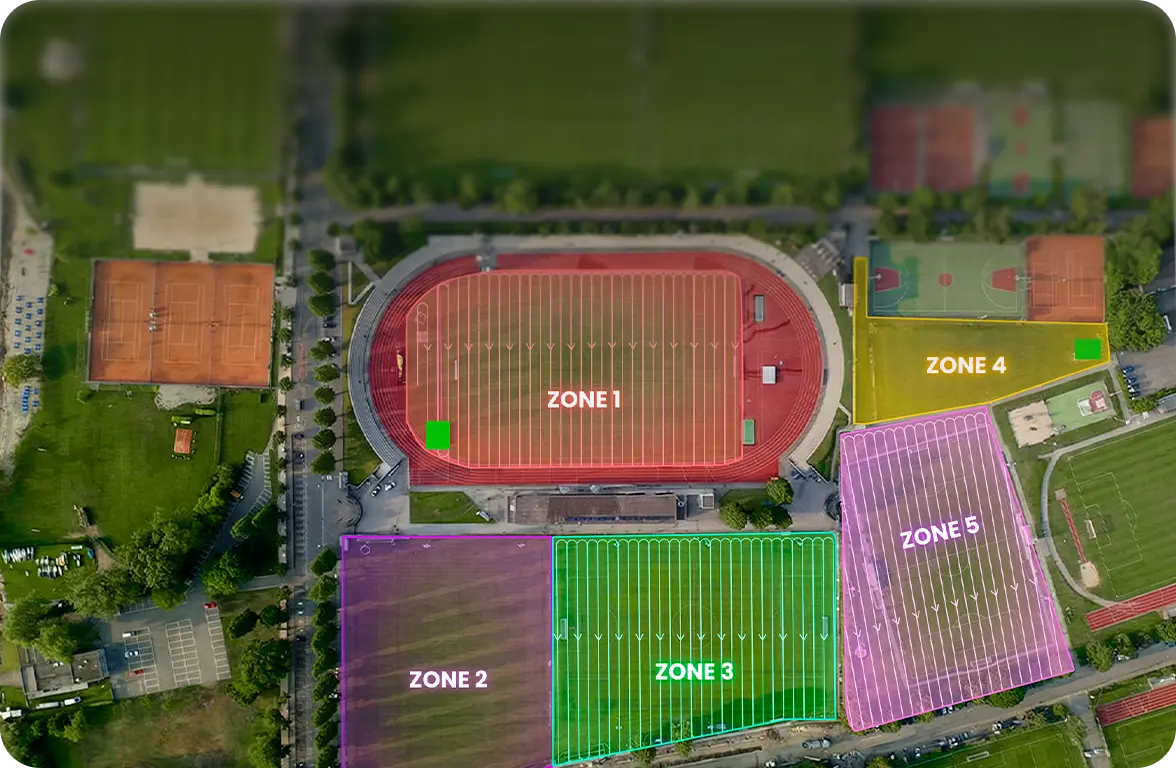

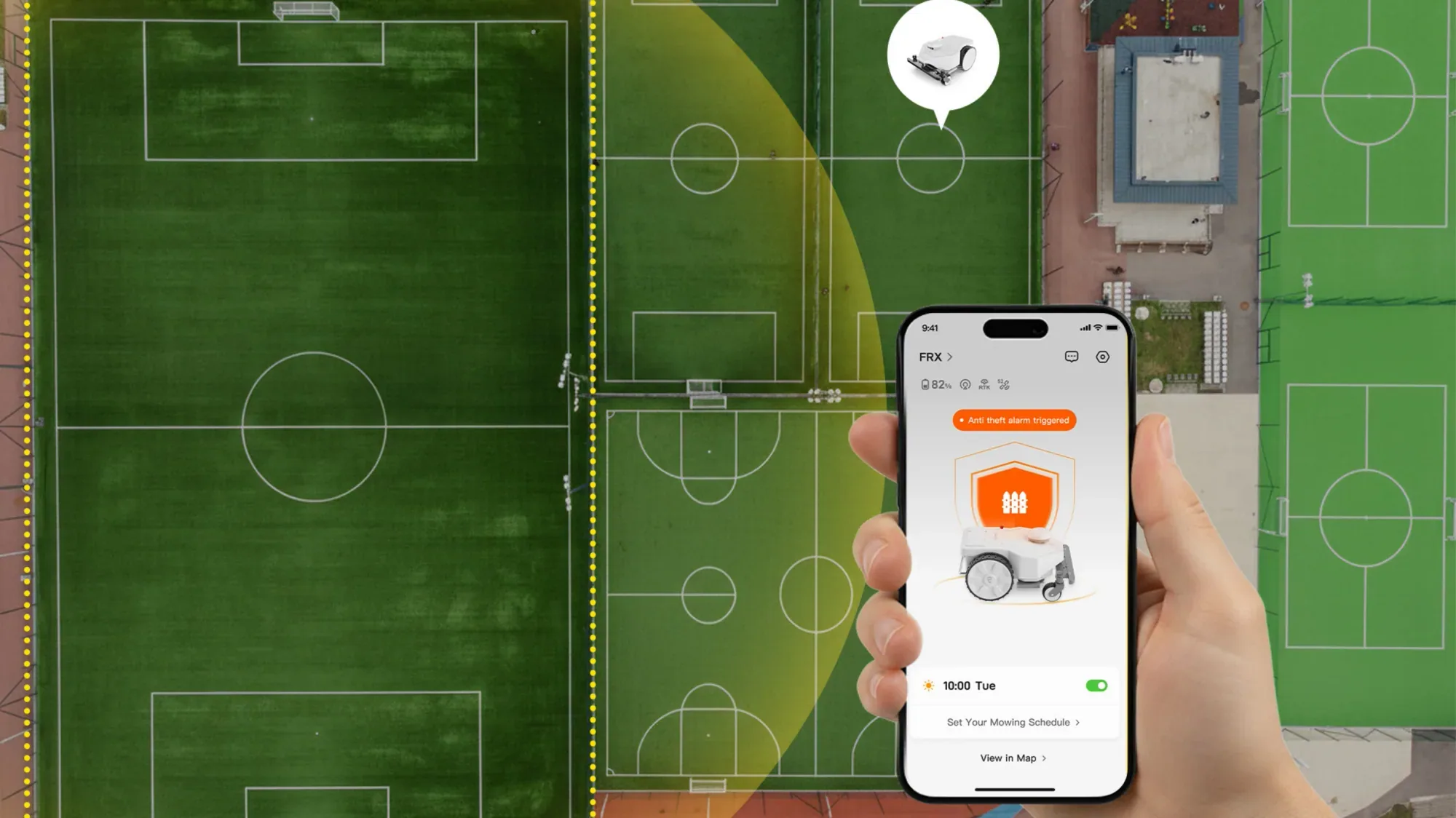

Achieve simultaneous mowing on multiple sports fields and automatically go to the next field upon completion.
- Monitor the status of the mower and control the operation from far away. With image feed, you can check the situation of the field at any time without being on-site.
- Unauthorized use is blocked by PIN, while GPS tracking shows its exact location. If lifted, moved, or taken outside its geofence, the alarm is instantly triggered.

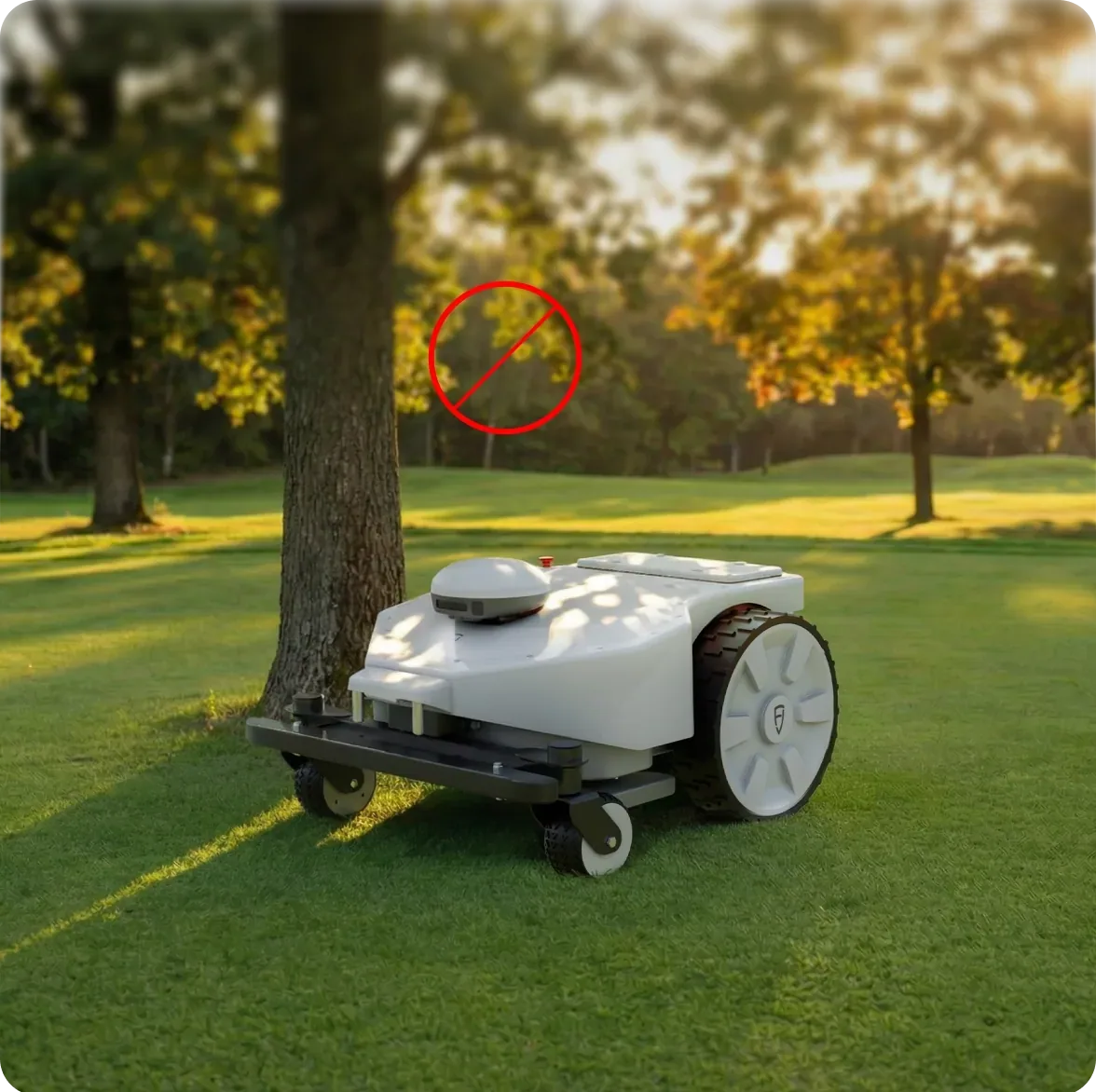

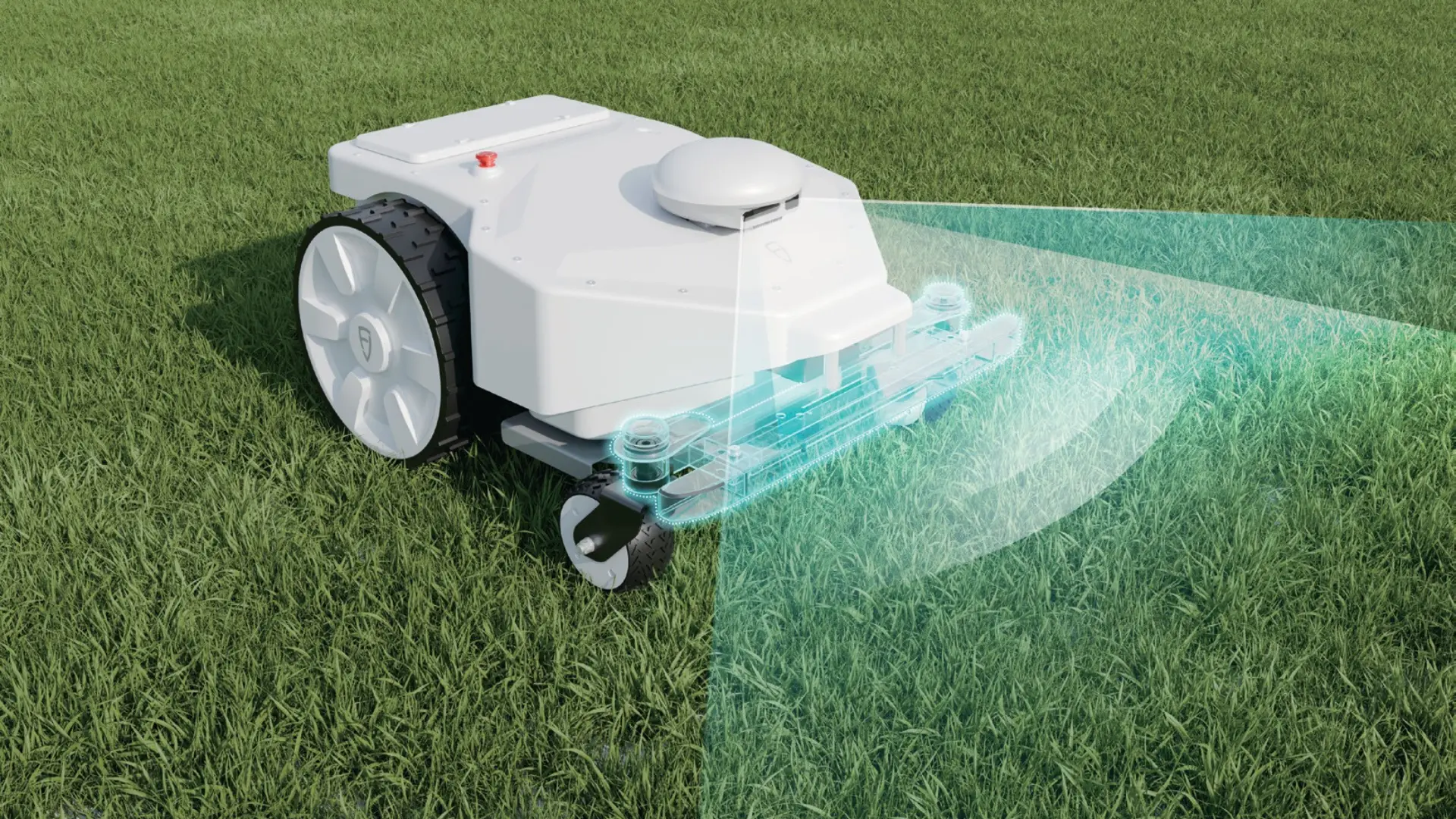

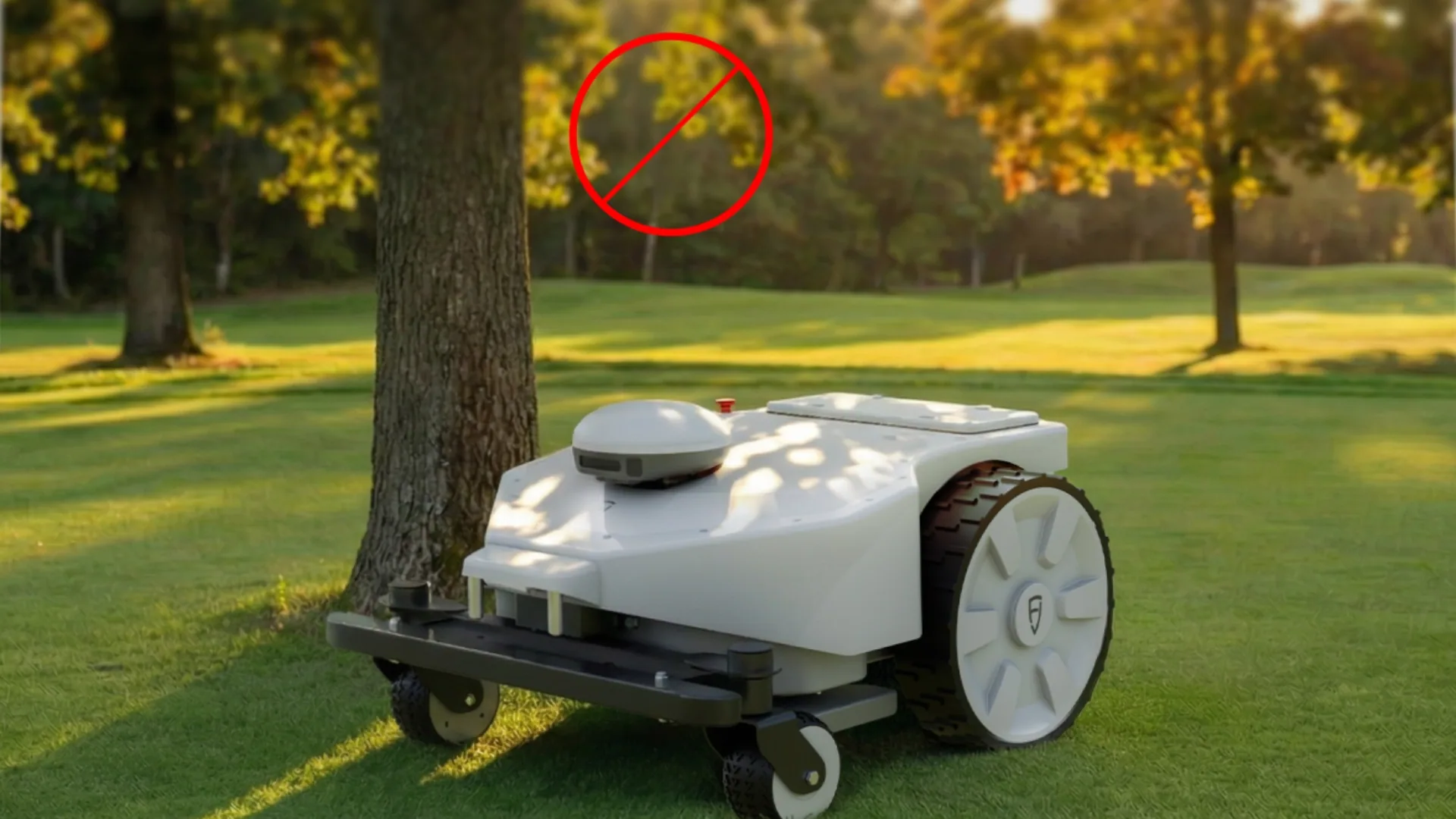

- Vision fusion and physical bumper effectively avoid obstacles and ensure safe operation.

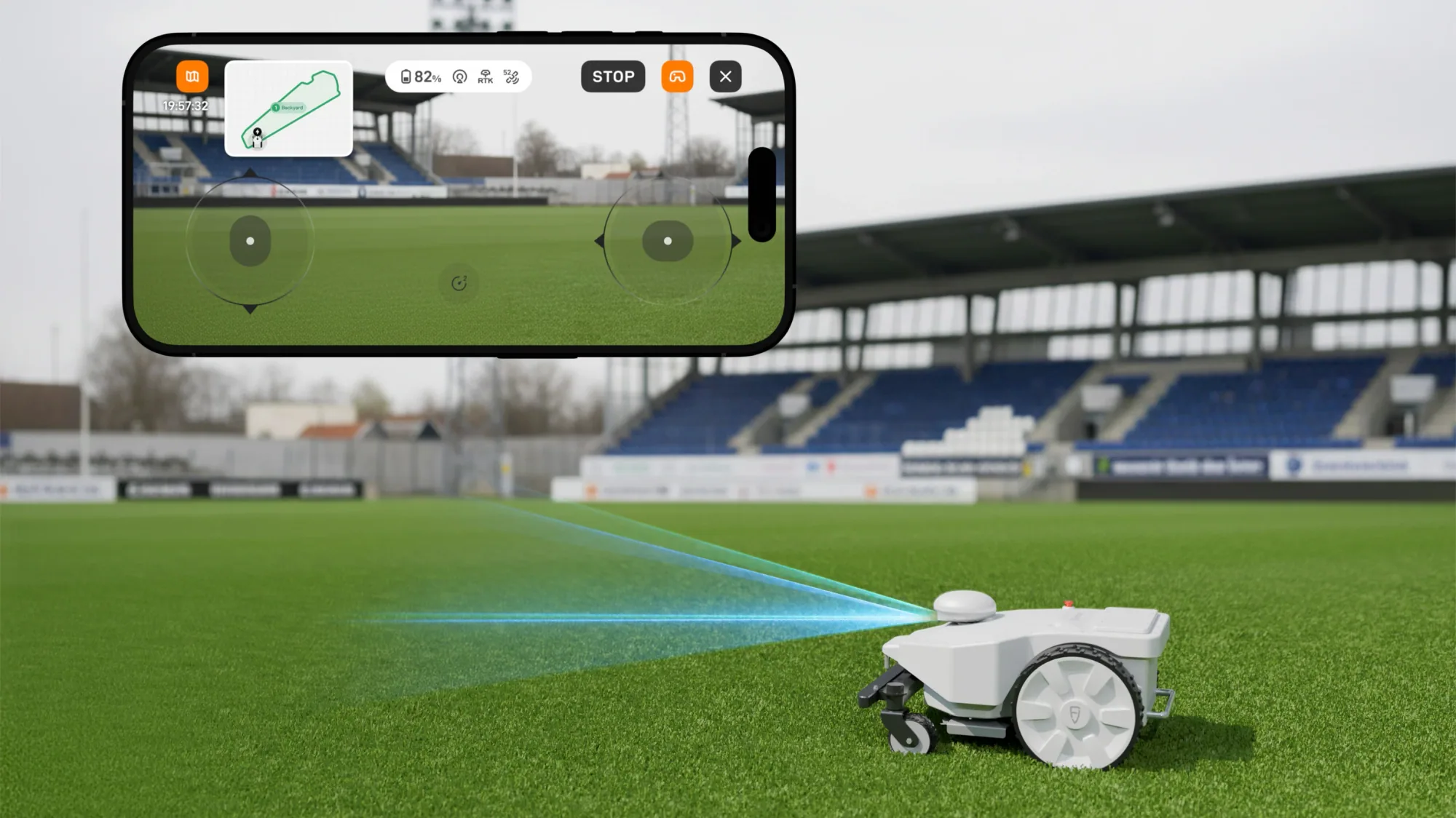

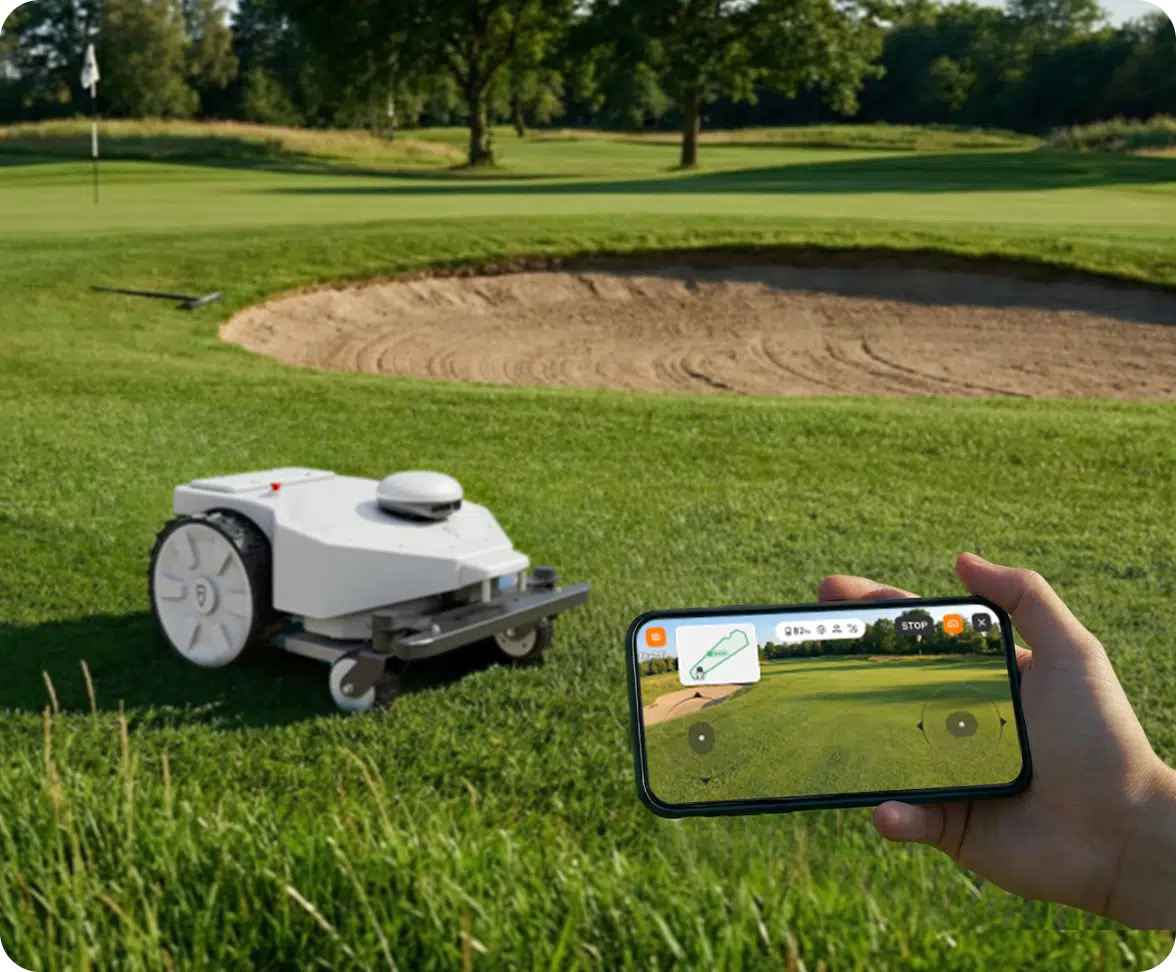

Remote App Control and Image Feed
Anti-Theft Security System

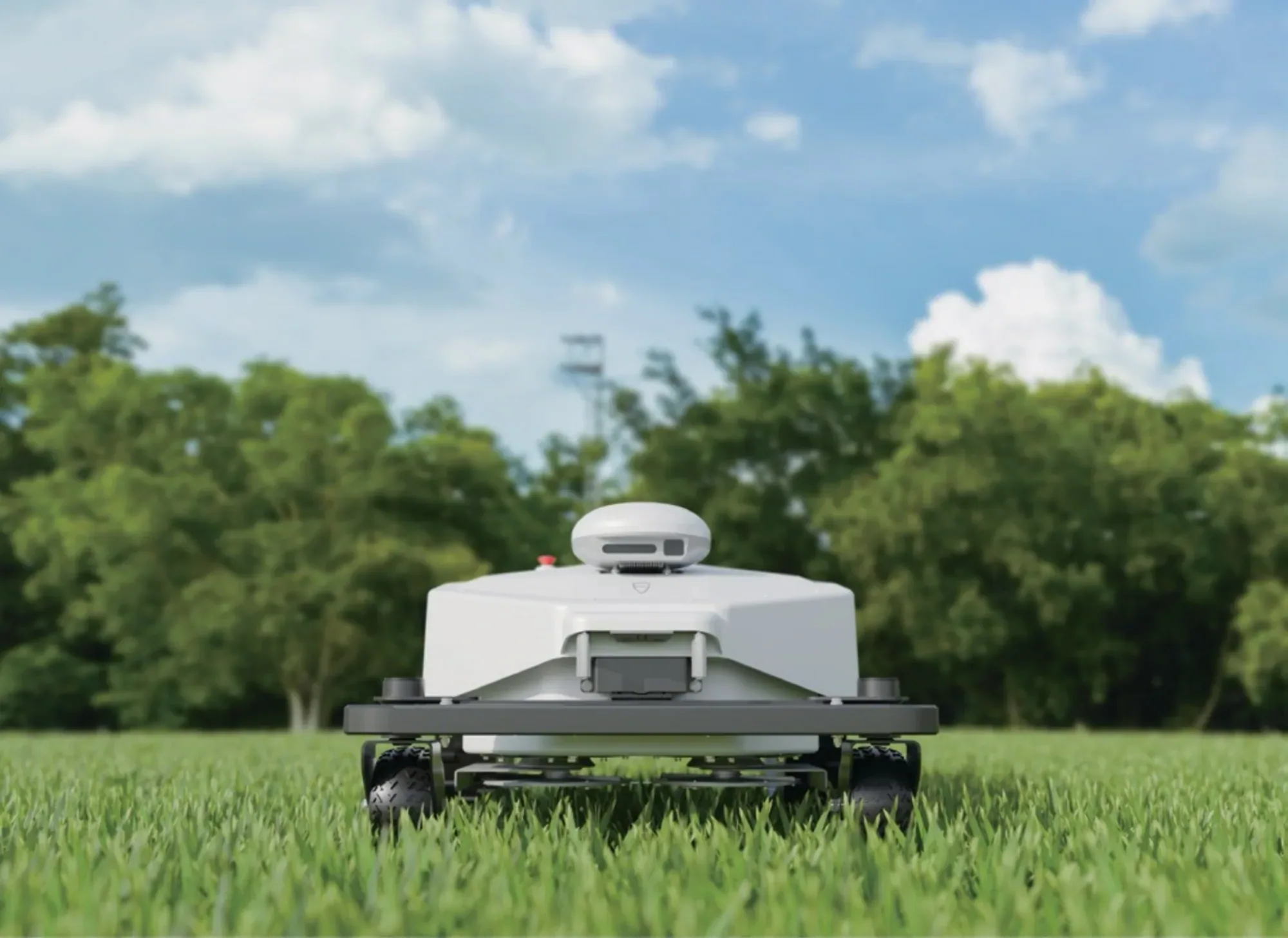

High-Performance Chassis
Ensure stable operation on uneven terrain, providing a smooth mowing experience.

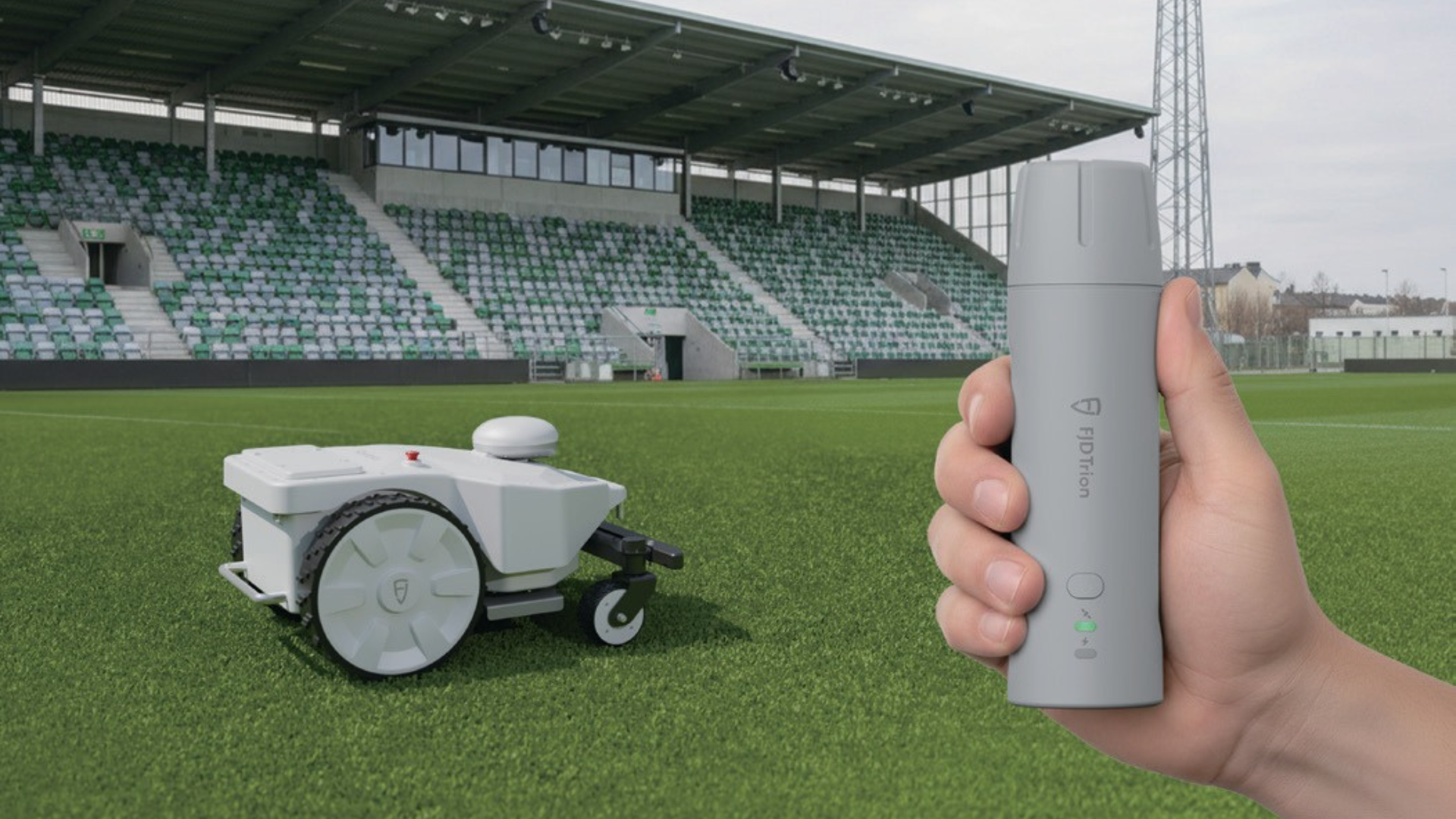

- Adjust the mowing height in real time via remote control based on seasonal changes and mowing needs.
- Eliminate the worry of water immersion, whether it is rainy day operation or daily cleaning.
- Grass Press Plate Reduces contact between grass and the blade, minimizing drag and clogging for more efficient mowing.

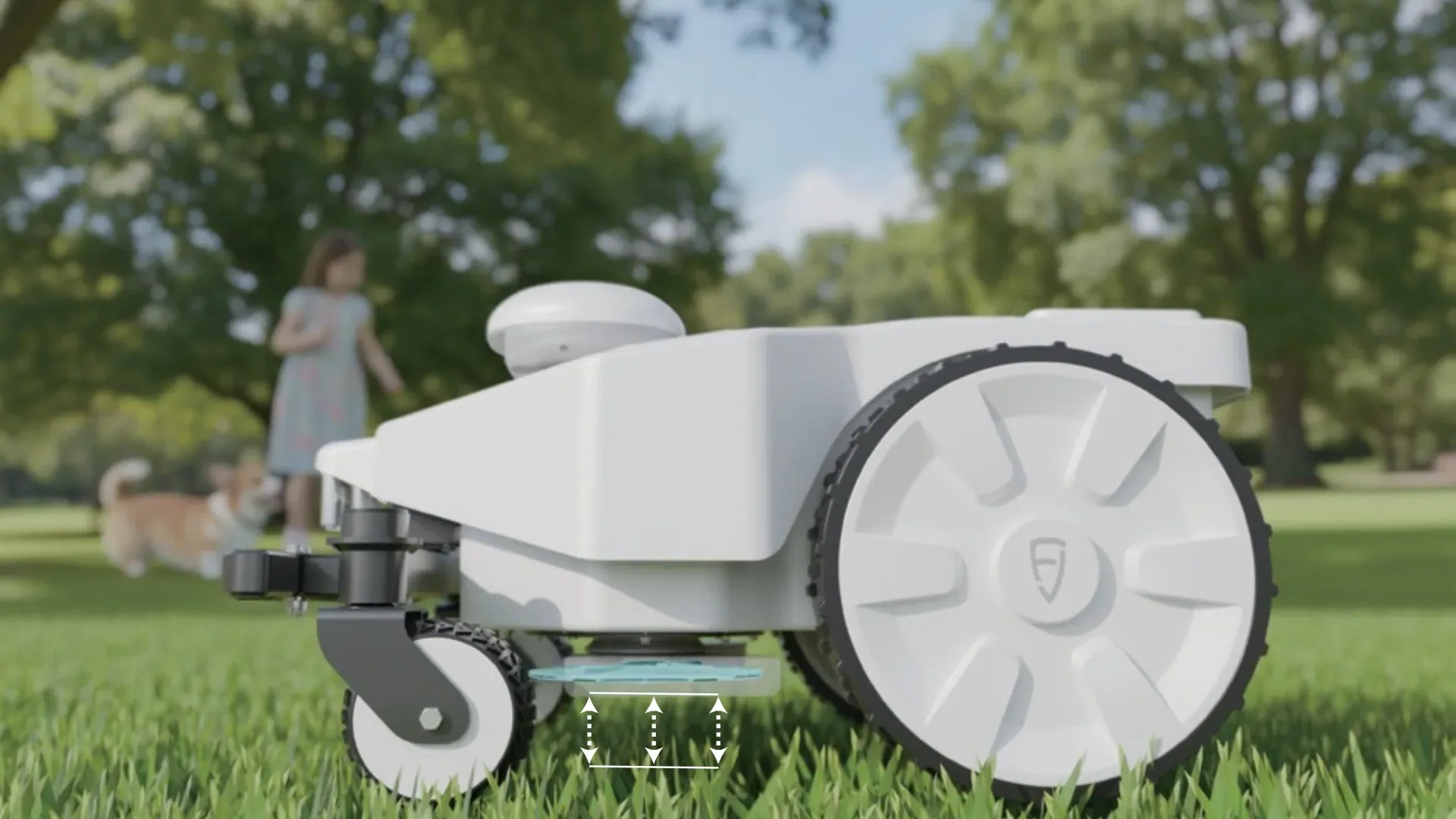

Cutting Disc Auto-Lifting

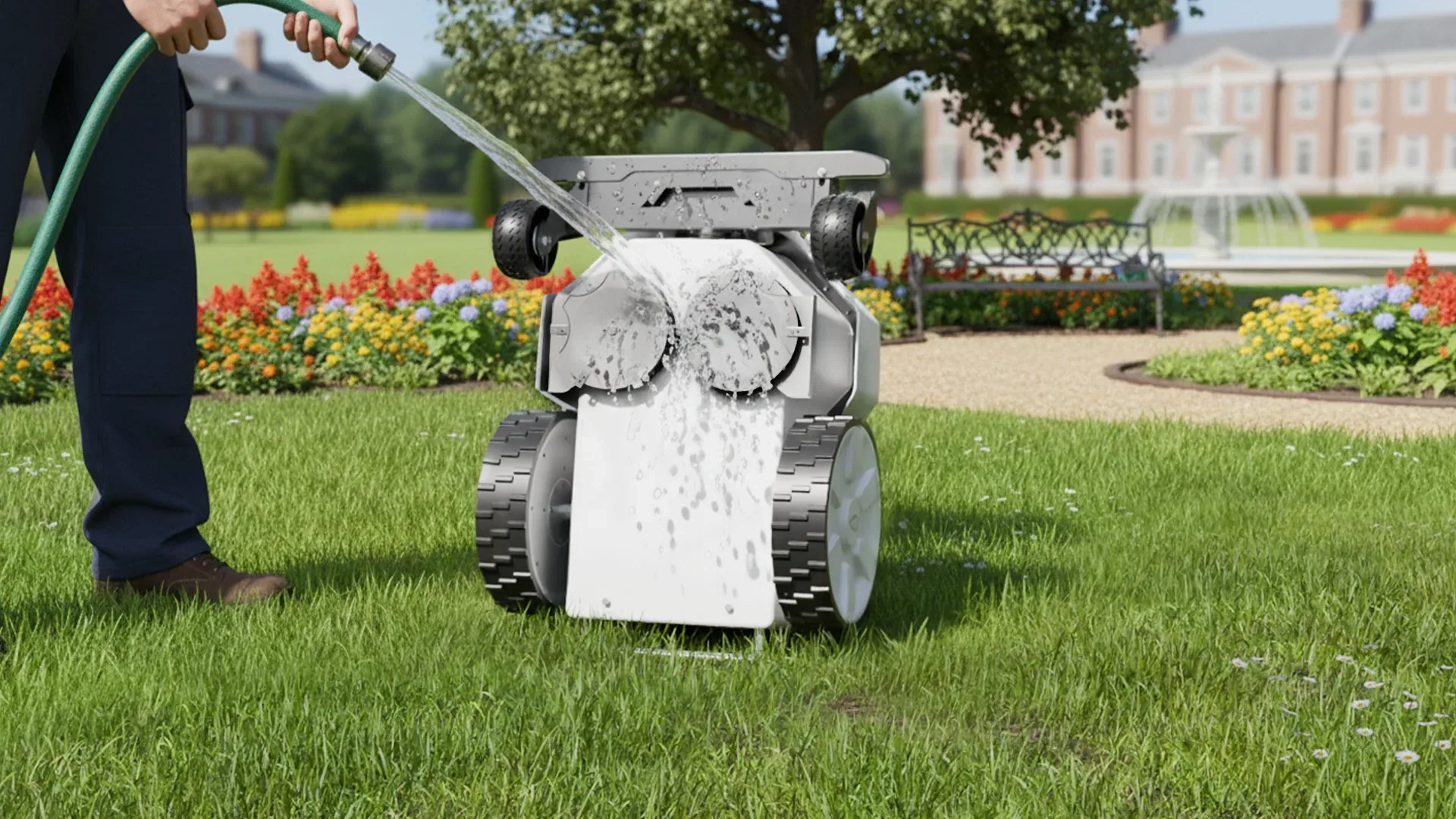

IPX5 Waterproof Design
Application Scenarios
Golf Course
Sports Field
Public Garden
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Mowing Capacity
- Fast battery swapping mode*
- 72h Maximum coverage 96,000m² 24h Maximum coverage 32,000m²
- Automatic charging mode
- 72h Maximum coverage 60,000m² 24h Maximum coverage 20,000m²
- Max mowing area per charge*
- 8000 m²
- Max working slope*
- 25°
- Boundary type
- Virtual wire
- Mowing pattern
- Customized angle mowing
Complete Unit
- Weight
- 83.7 kg
- Dimensions
- 1278*782*739.9 mm / 50.3*30.8*29.1 in.
- Software update
- OTA
- Connectivity
- 4G, Wireless connectivity
- IP rating
- IPX5
Cutting System
- Cutting height
- 10–100 mm / 0.4-4 in.
- Cutting width
- 520 mm.
- Travel speed
- 0–4 km / h
- Cutting disc (pivoting razor blades per disc*6)
- 2
Acoustic Performance
- Test Condition
- A-Weighted Sound Pressure Level
- Cutter Speed – Level 1
- 47.8 dB(A)
- Cutter Speed – Level 2
- 55.7 dB(A)
- Cutter Speed – Level 3
- 64 dB(A)
Battery & Charging
- Charging mode
- Manual & automatic
- Battery performance
- 320 min
- Charging time*
- 150 min (0–100%, 1 kWh, fast charging)
Positioning & Navigation
- Positioning
- RTK & vision
See the FRX on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
