PaintMaster Ultra

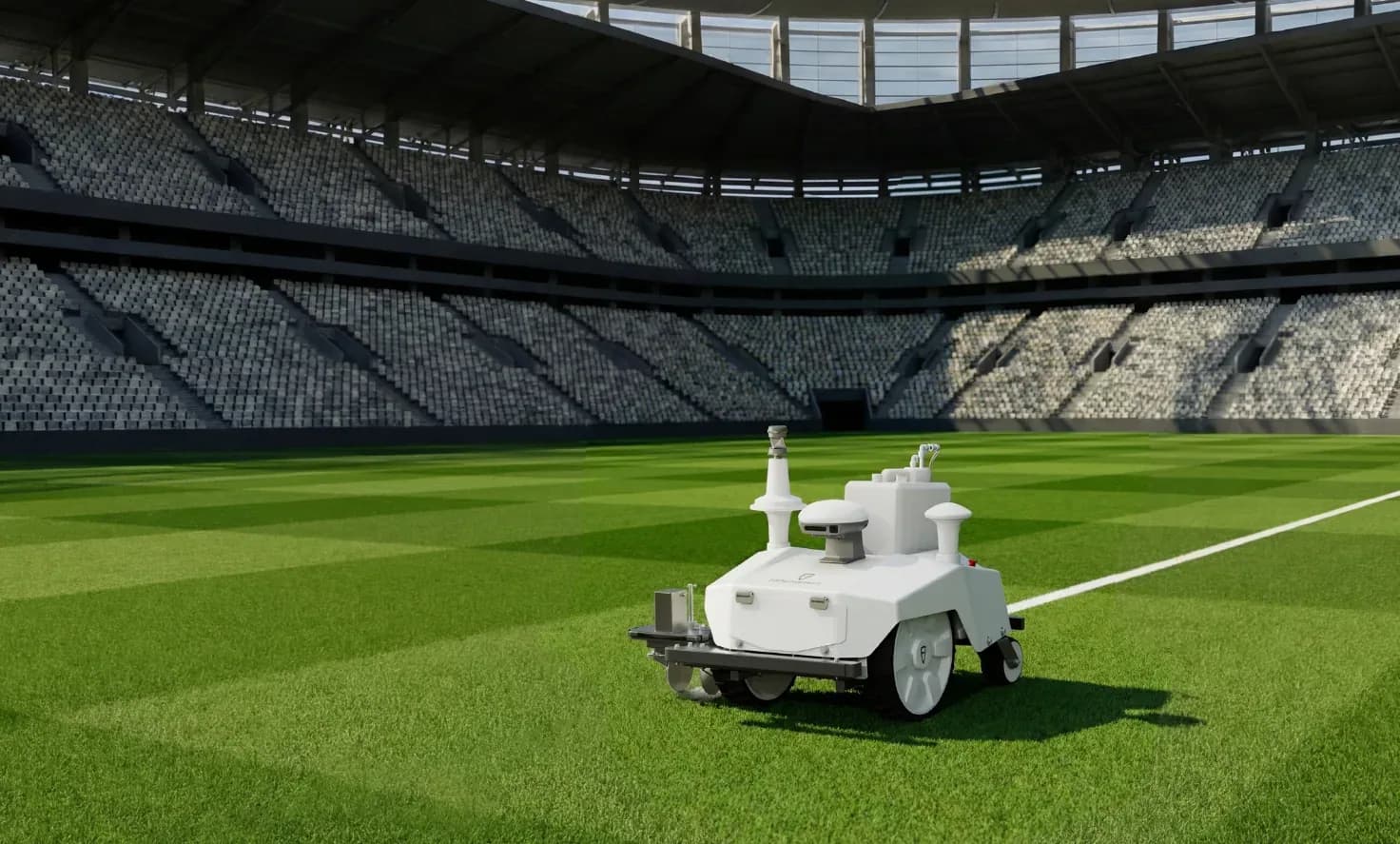

FJD PaintMaster Ultra
Precision Anywhere. Perfection Everywhere
Precision Anywhere. Perfection Everywhere.
MILLIMETER-GRADE PRECISION

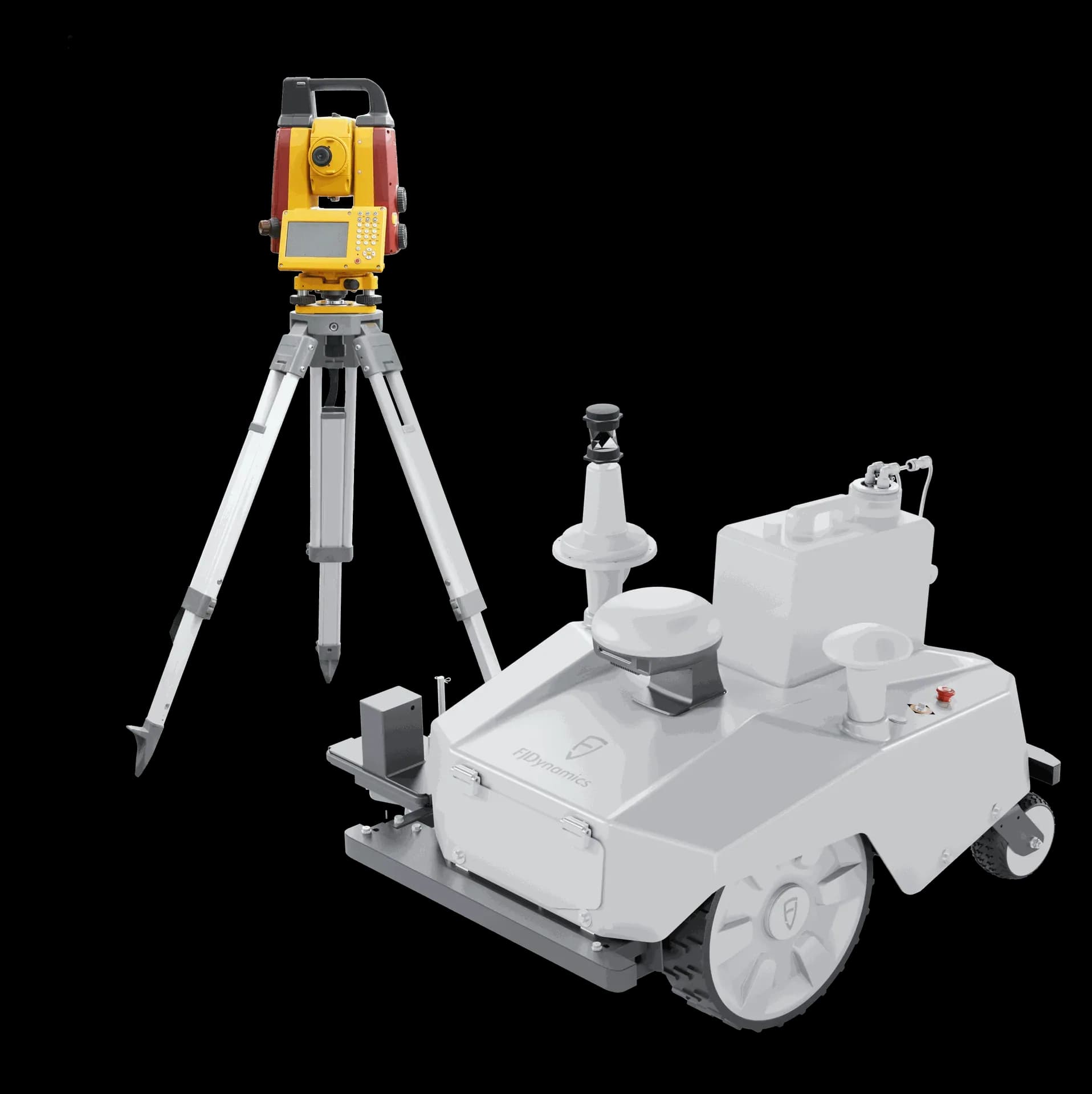

Features a high-precision total station with an auto-tracking prism, delivering real-time, pinpoint accuracy and fully automated line marking.
- 25L high-capacity paint tank, significantly reducing the need for frequent refills and maximizing efficiency for large-scale operations.
- Equipped with studded tyres that significantly reduce skidding and ensure stable, precise operation on wet, uneven or low-grip grass.
- Meets the strict requirements of FIFA, NCAA, and other major tournaments for line width, line position, and overall consistency.

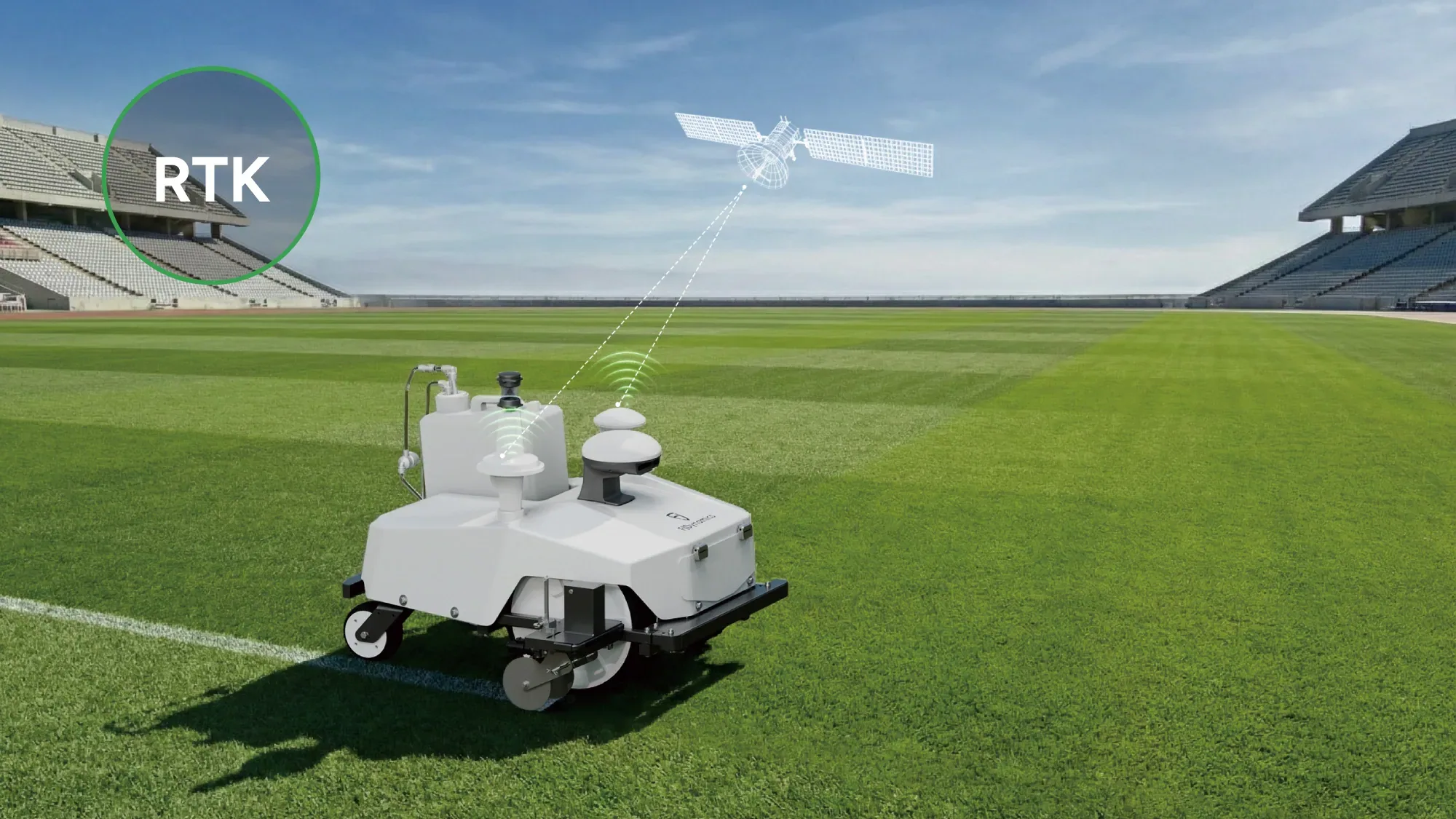

FULL-SCENARIO COVERAGE

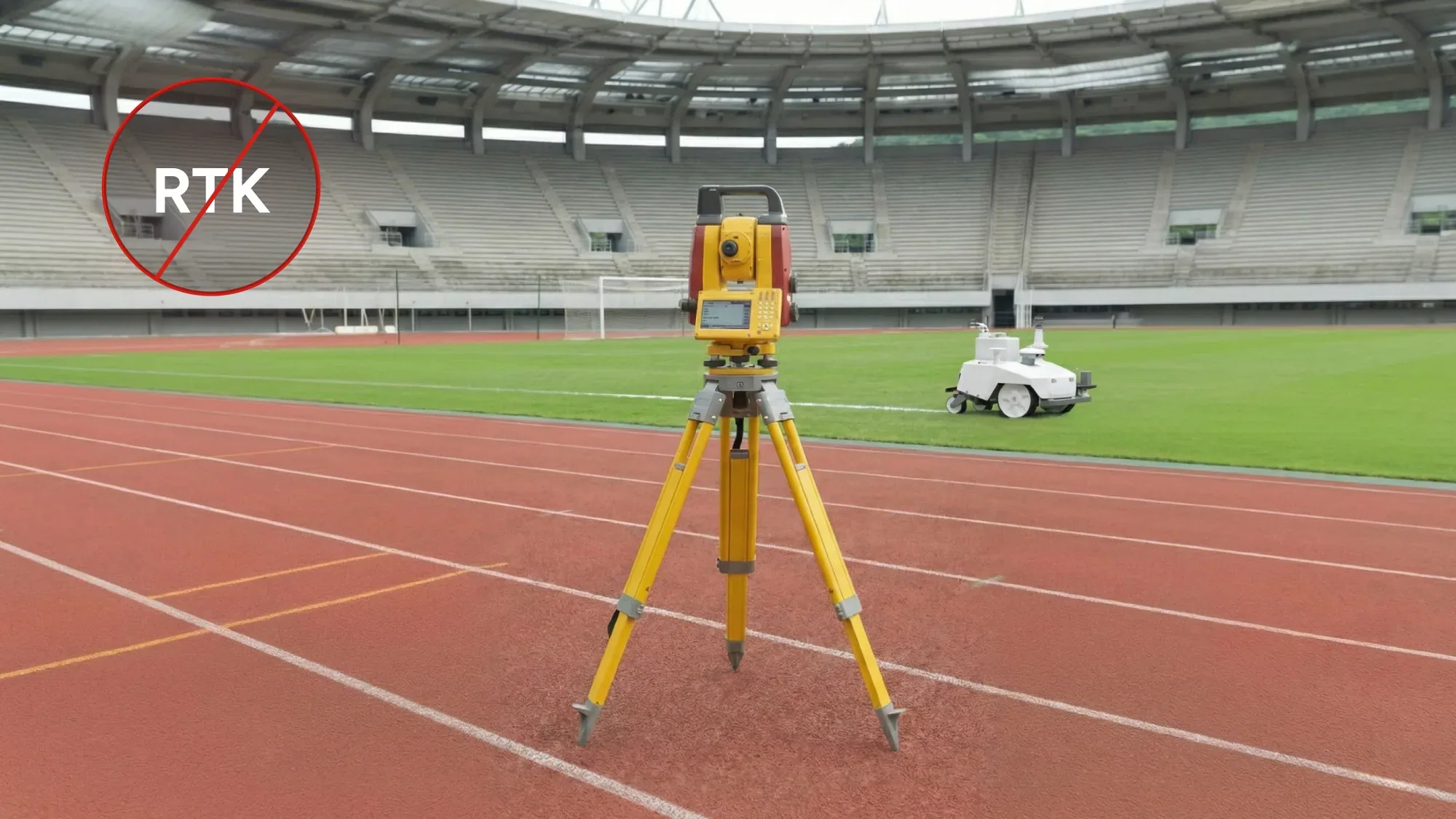

Reliable operation even in signal-denied or obstructed areas.
- Designed for elite sports venues, the PaintMaster Ultra is a high-precision line-marking robot powered by total station laser tracking. It delivers consistent millimetre-level accuracy, even in areas with limited RTK signals, making line marking standardised, digital and repeatable.

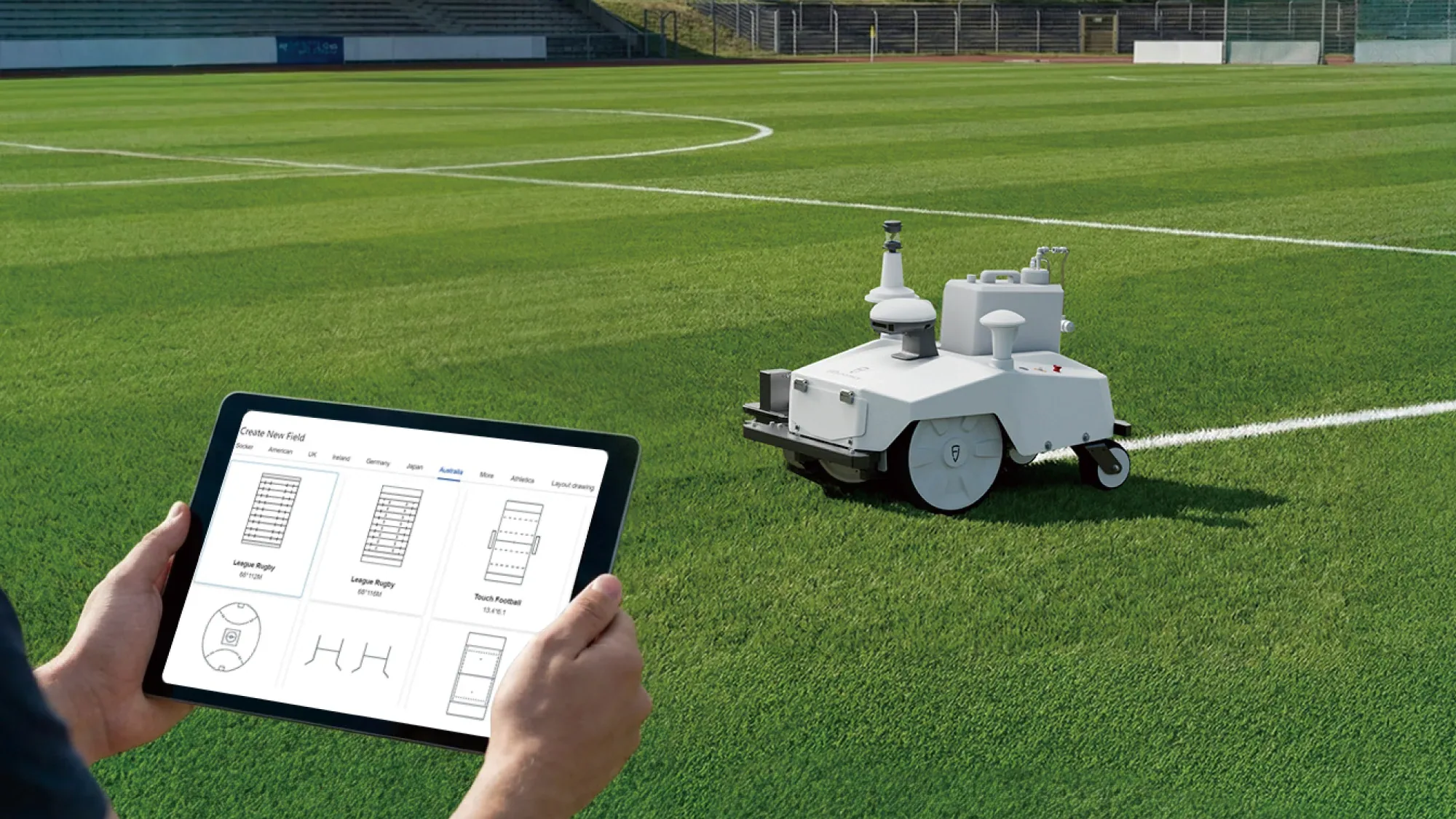

EFFICIENCY REDEFINED
90%+ Reduce Labor Costs by
- 50%+ Reduce Paint Use by
- 30Mins One Standard 11v11 Field

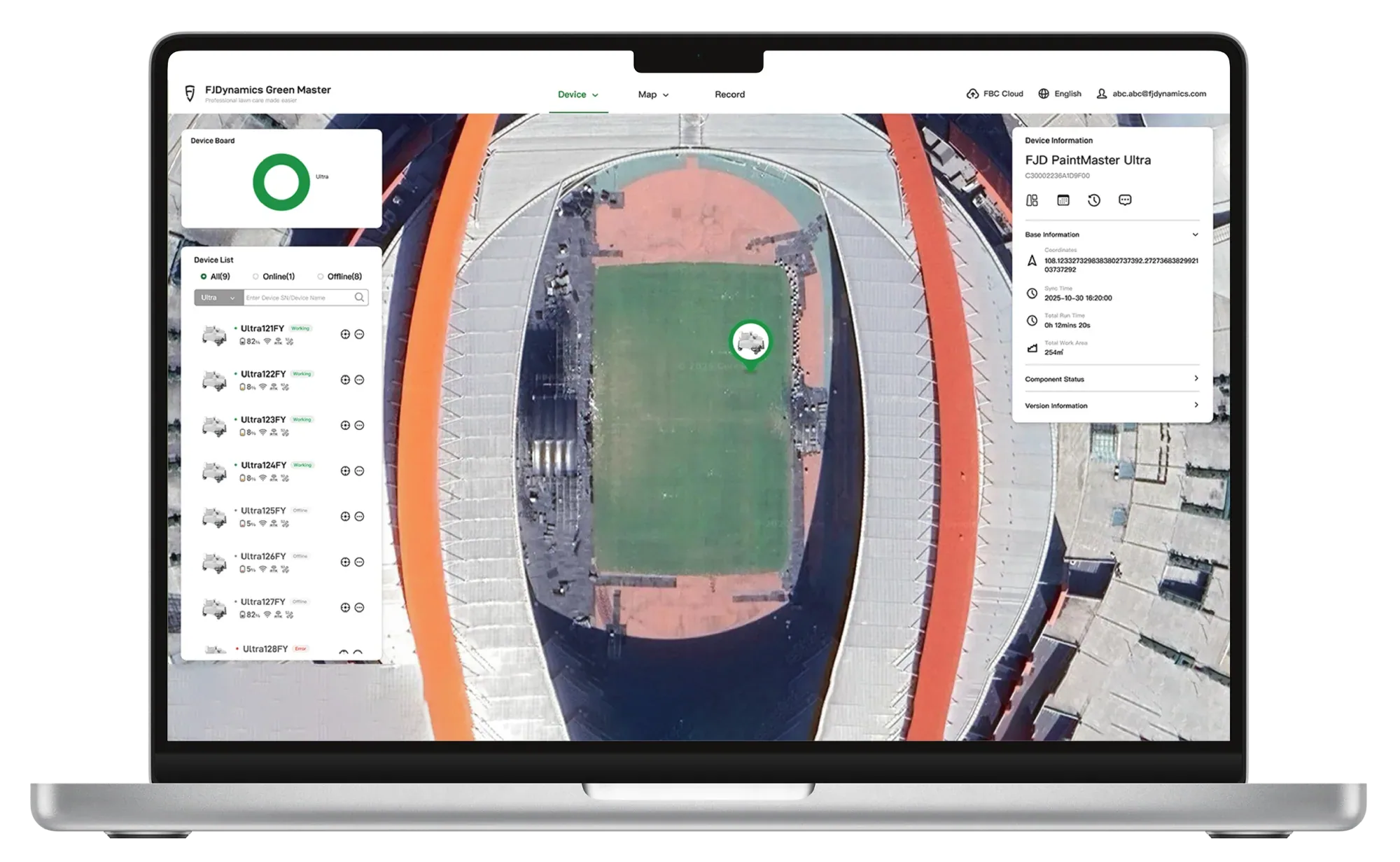

FJD GreenMaster
FJD GreenMaster is a smart fleet management platform for robotic mowers and line markers. It enables remote device tracking, map planning, and task dispatching—all in one place. GreenMaster helps streamline turf operations, reduce manual effort, and improve mowing consistency across golf course, parks, campuses, and sports fields.
FJD Paintmaster Simulator
With the FJD Paintmaster Simulator, users can rehearse marking paths virtually before execution, verifying results in advance to reduce errors and save time. Whether beginners or professionals, anyone can quickly master the marking process, improving efficiency and accuracy.
- Virtually preview and validate layouts before execution to ensure first-time accuracy and raise professional standards.
- Cut paint and trials, reduce material and maintenance, save over 90% of labor.
- Finish marking in minutes, minimize on-site adjustments, free time for more productive work.
APPLICATION SCENARIOS

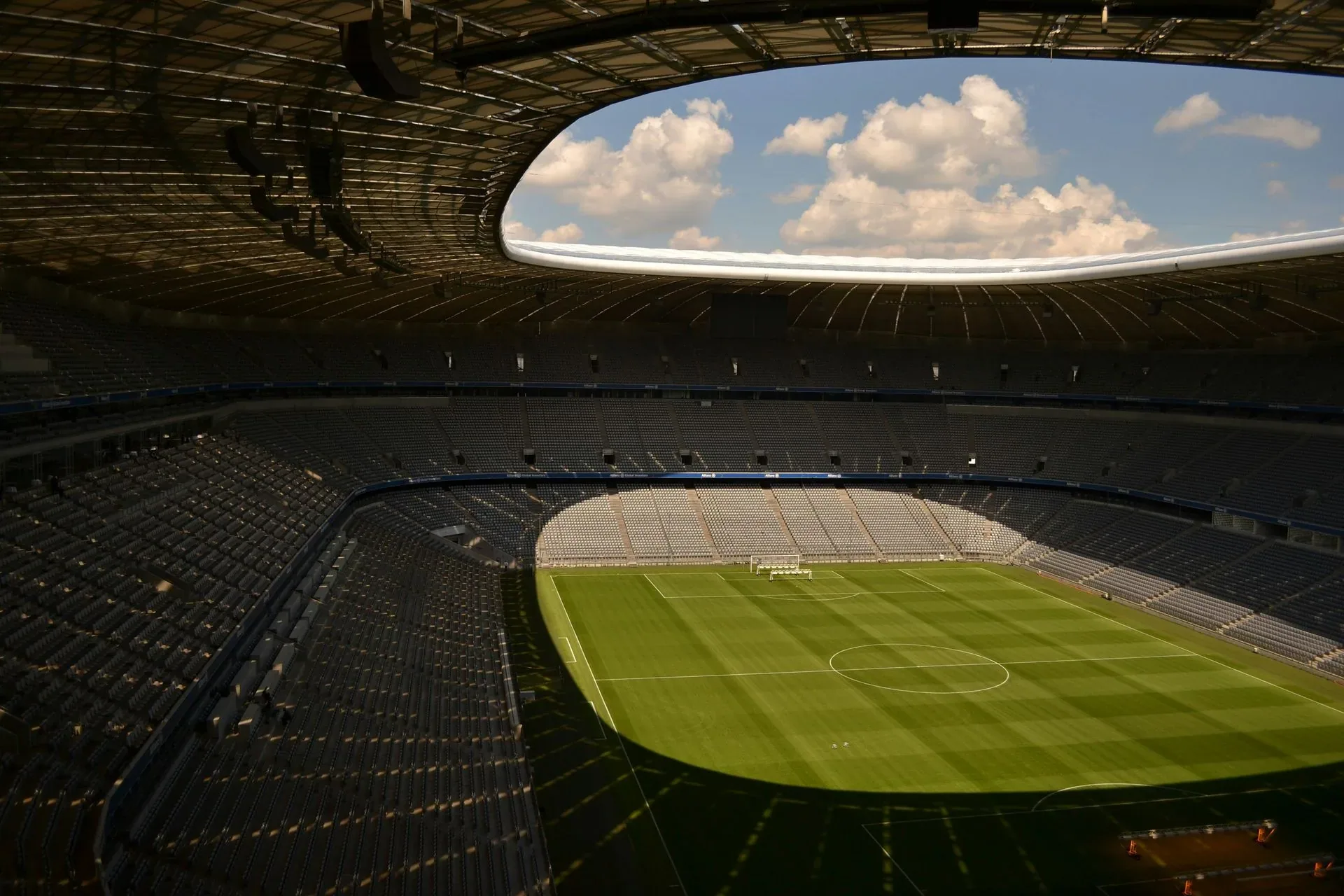

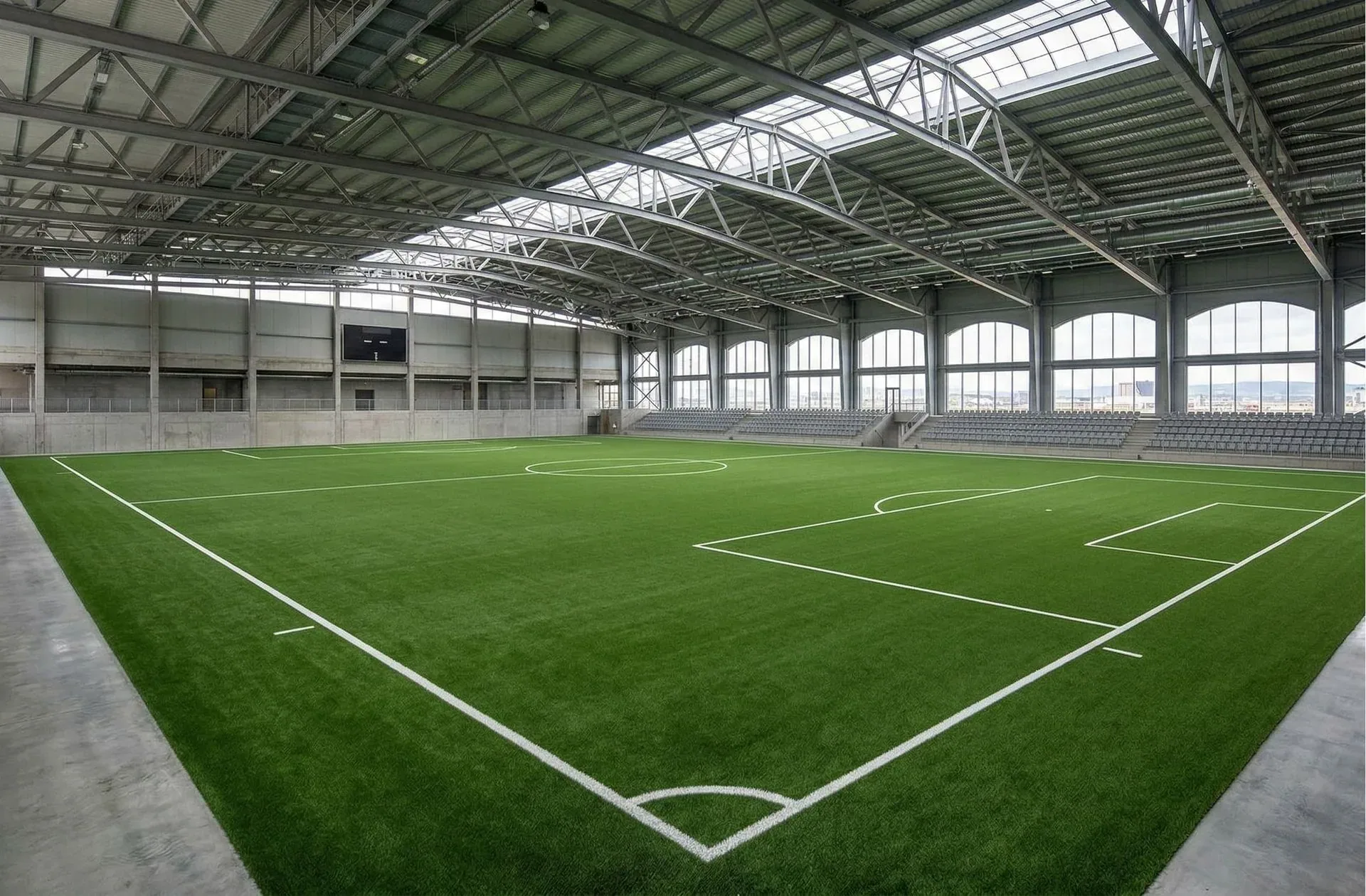

Professional Stadiums with Overhangs

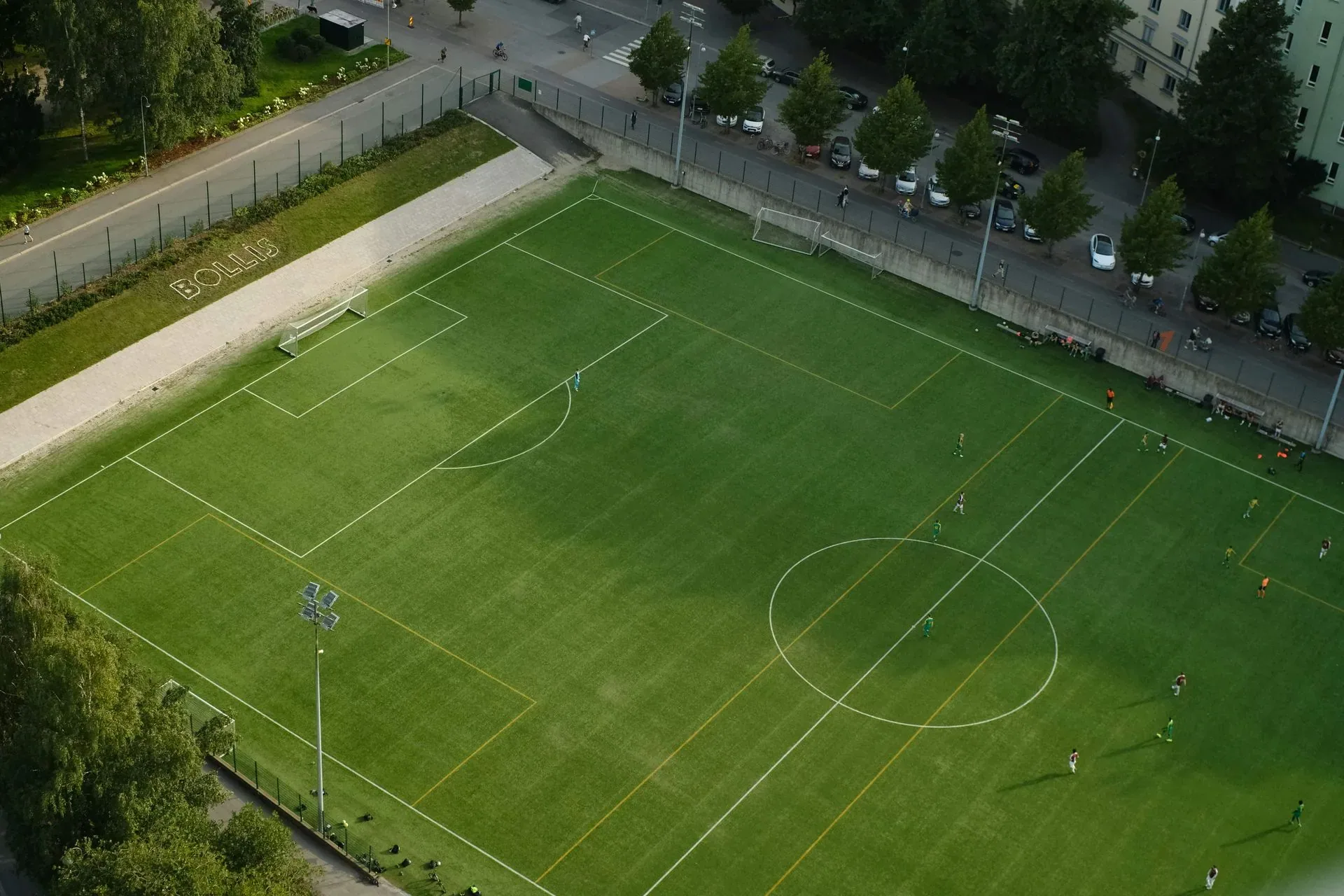

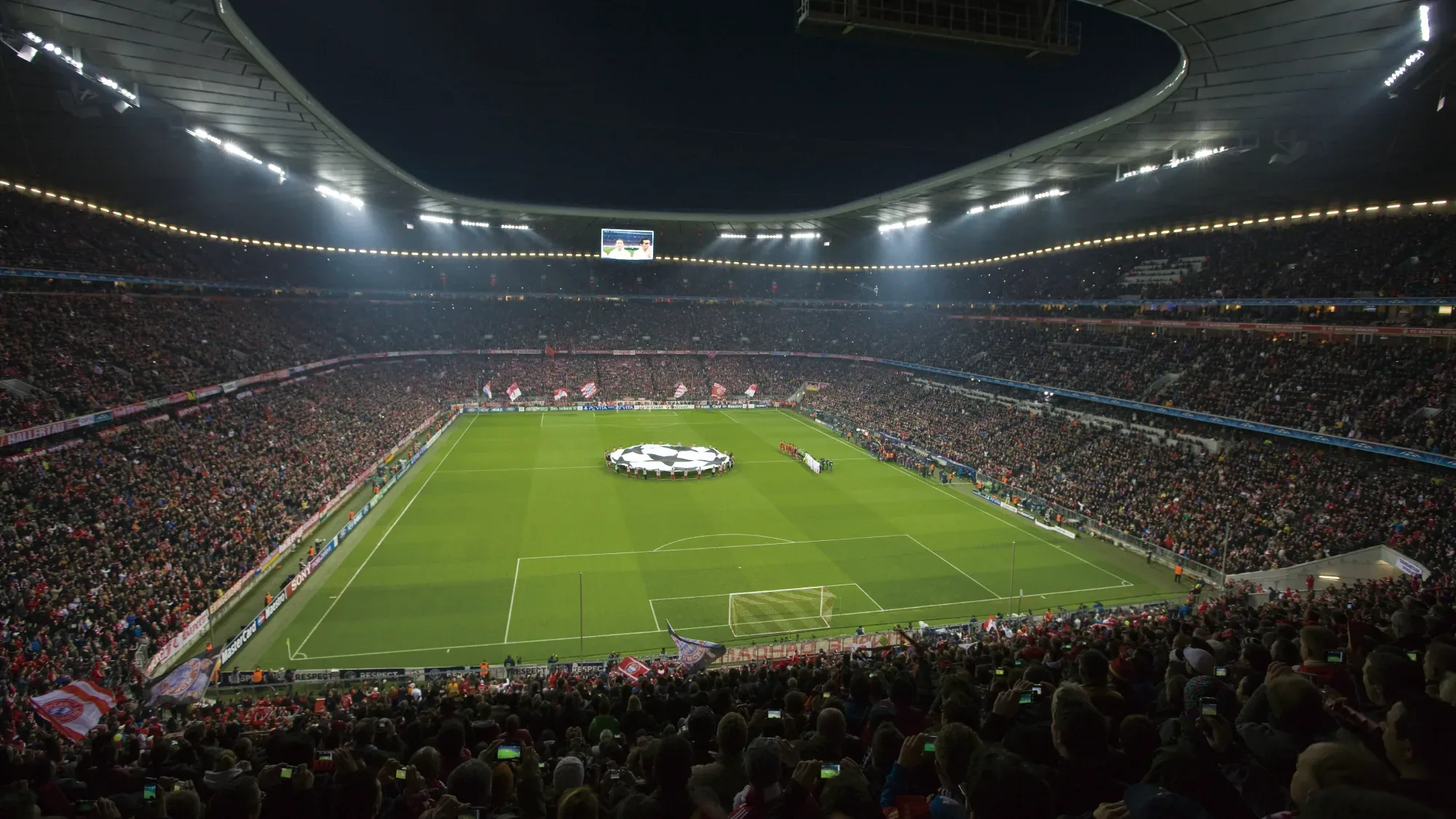

- Standard Open-Air Professional Stadiums
- Looking for more than just line marking? Uncover our comprehensive sports field solutions that combine state-of-the-art mowing and marking technology for the perfect field.
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Complete Unit
- Weight
- 75 kg / 165 lbs
- Dimensions
- 1074×1023×672mm / 42.3x40.3×26.5 in.
- Working Temperature
- 5–45 ℃
- IP Rating
- IPX3
- Marking Speed
- 1-3 km/h
- Line Width Range
- 6–17 cm / 2.4-6.7 in.
- Paint Container
- 25 L
Battery & Charging
- Battery Voltage
- 48 V
- Battery Capacity
- 1 kWh
- Charging Time
- 5 h
- Operating Time

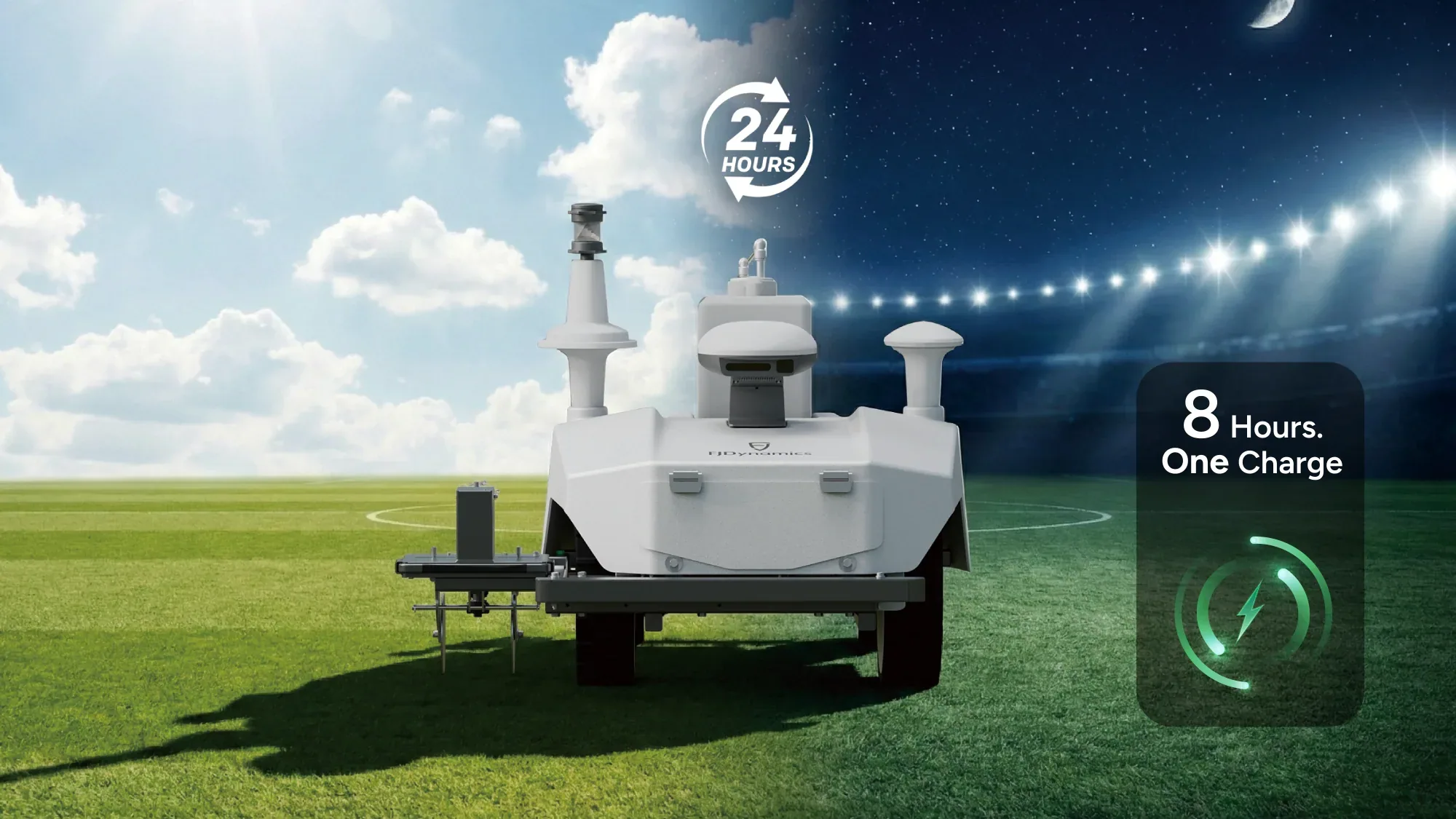

- 8 h
Factory Configuration
- Positioning System
- Total station & GNSS
- Connectivity
- 4G & Bluetooth & Wireless Connectivity
See the PaintMaster Ultra on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
