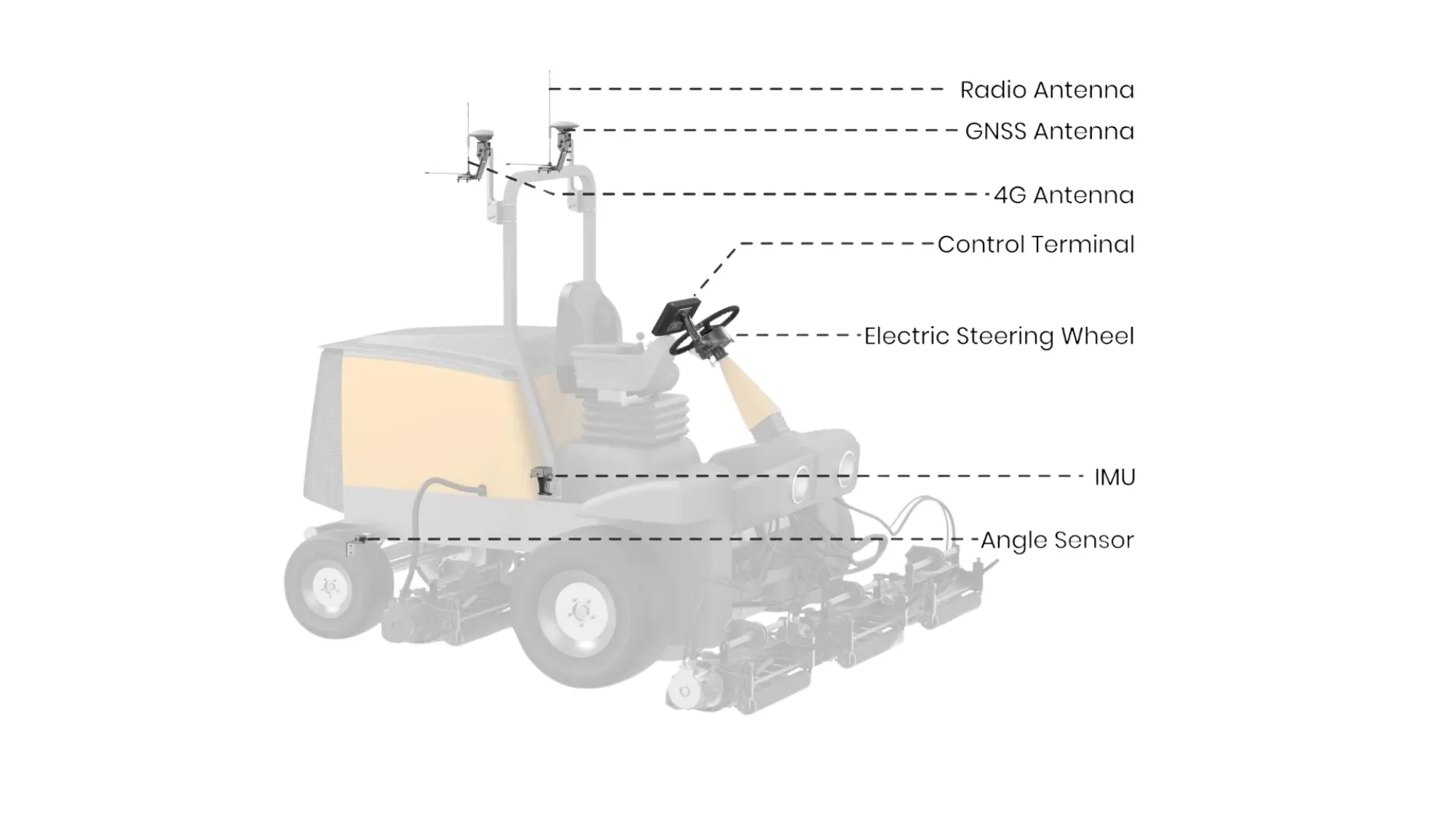

Effortless Mowing Mastery

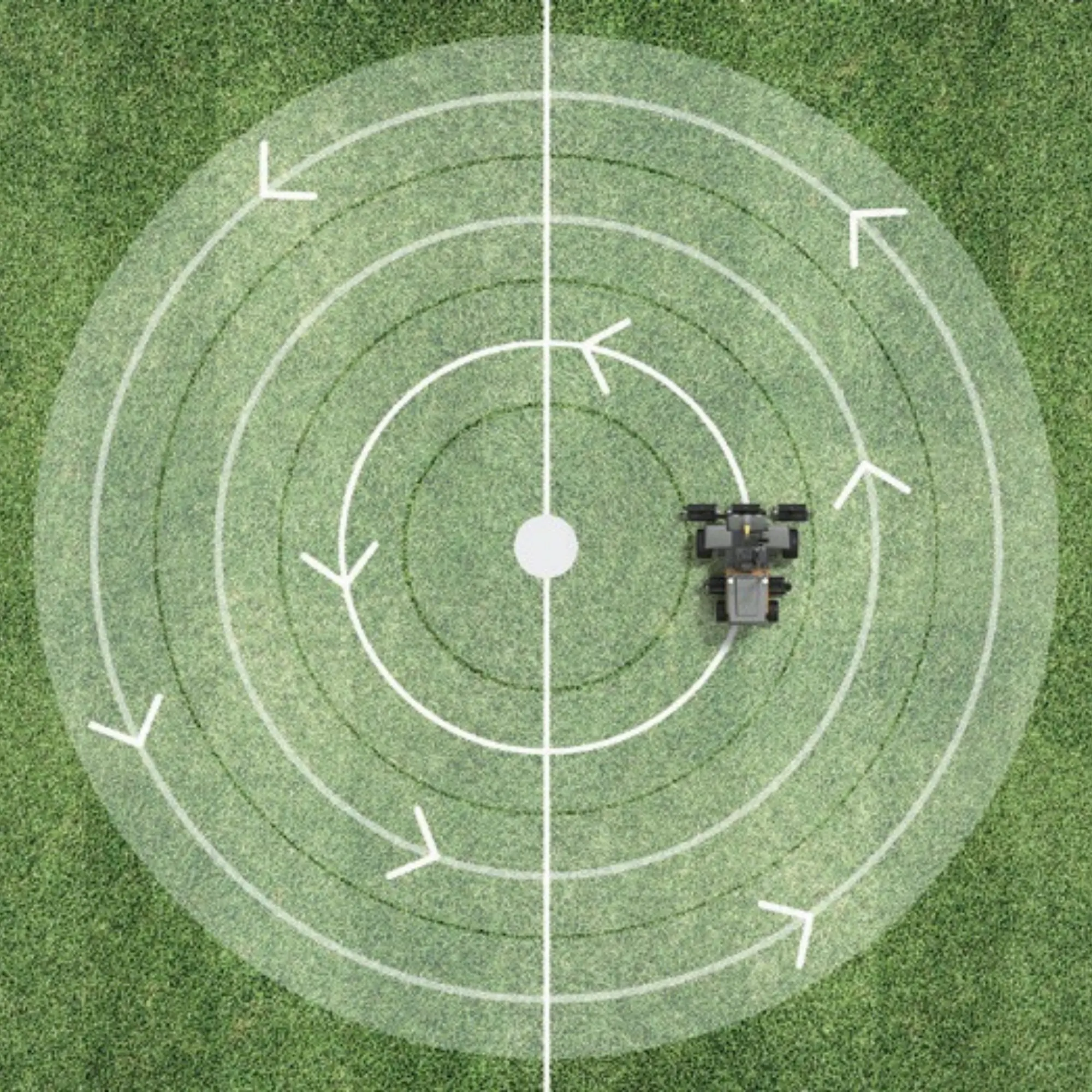

Customizable Mowing Modes
Reduced Complexity
Experience easy, stress-free mowing. With our guidance system, simply control the paddle while the kit handles the intricate steering control.

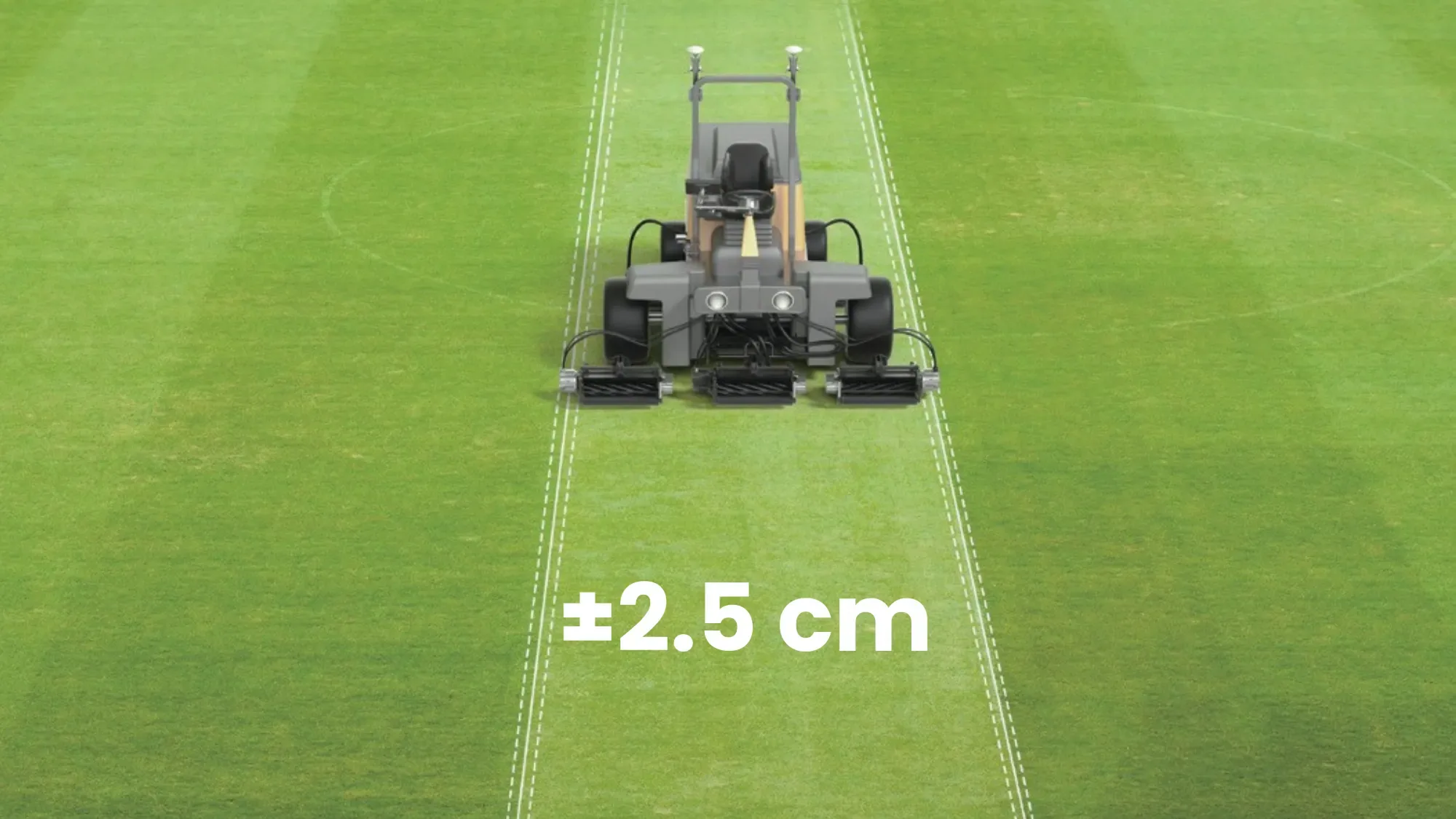

Superior Mowing Accuracy
Guidance Lines Mastery Made Easy
Create customizable guidance line profiles for simplified, repeatable mowing. Plan once, use anytime.
Application Scenarios
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Control Terminal
- Dimension (L * W * H)
- 300 * 190* 43 ( mm )
- System
- Android
- Network Mode
- 4G/3G/2G
- Display
- 10.1 inches,1280x800 pixels,
- Waterproof Level
- IP65
- Power Interface
- 10V—30V
- Interface
- Radar × 1, 4G × 1, GNSS × 2, Base Station × 1
Electric Steering Wheel
- Size
- 370*370*123 mm
- Waterproof Level
- IP66
- Power Supply
- 12V/24V DC
GNSS Antenna
- Size
- 370*370*123 mm
- Support Source
- GPSL1/L2,GLONASSL1/L2,BDSB1/B2/B3
IMU
- Accelerometer
- 0.5 mg
- Gravity Sensor
- 0.1°/s
- Electronic Compass
- 0.2°
- Power Interface
- 5V
Angle Sensor
- Operating Temperature Range
- -40° C-85° C
- Waterproof Level
- IP67

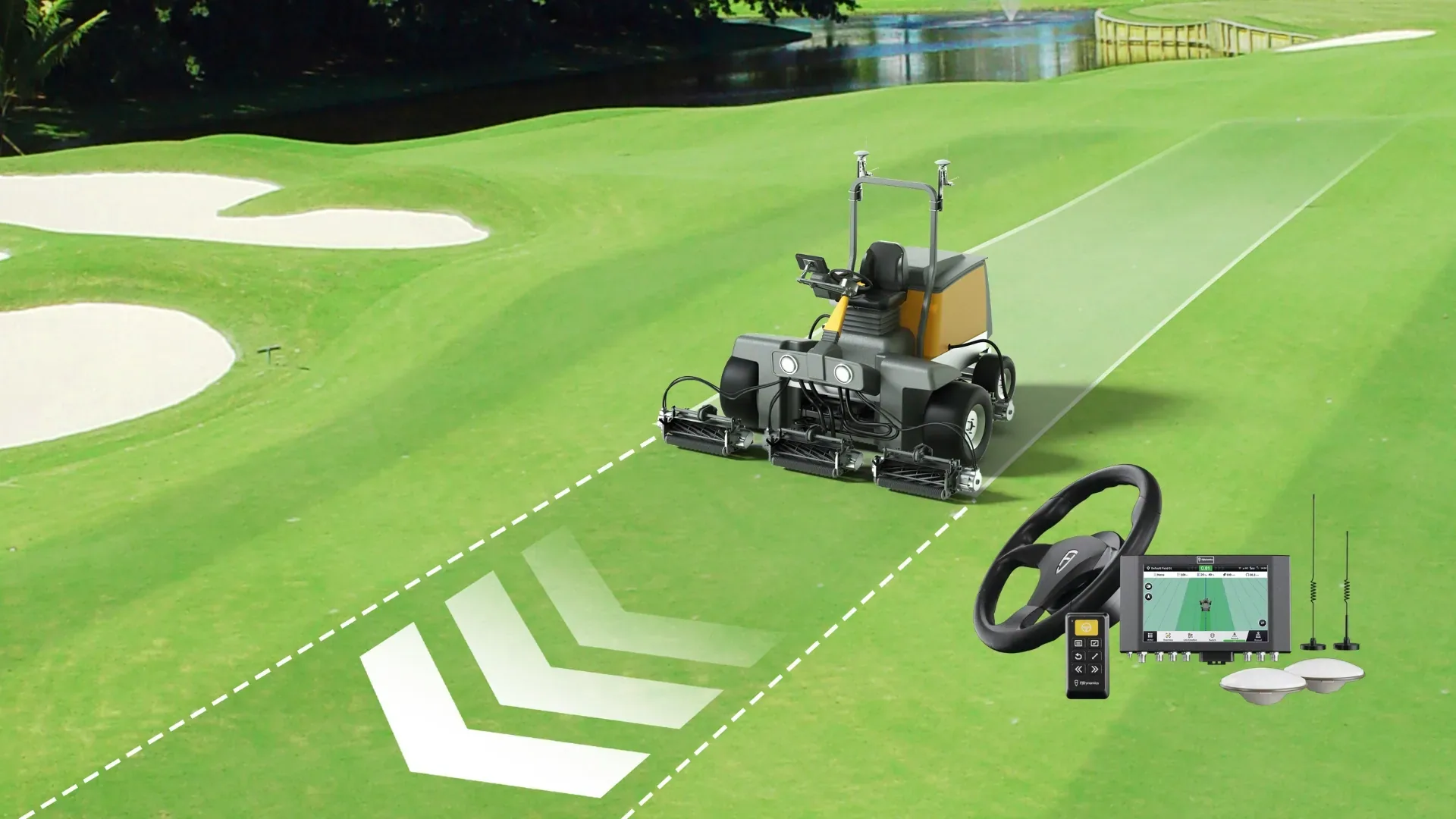

See the MS100 Mower Kit on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
