Product Showcase
Explore global case studies showcasing product applications across turf farms, and more.
- RCM01 autonomously mows a Swedish fairway, delivering a clean, even cylinder cut with crisp, consistent striping.
- Golf Course in New Zealand
- At a New Zealand demo day, Smart Turf NZ Director Jose Ganga shares firsthand field insights on the RM21 and RCM01.
Fairways

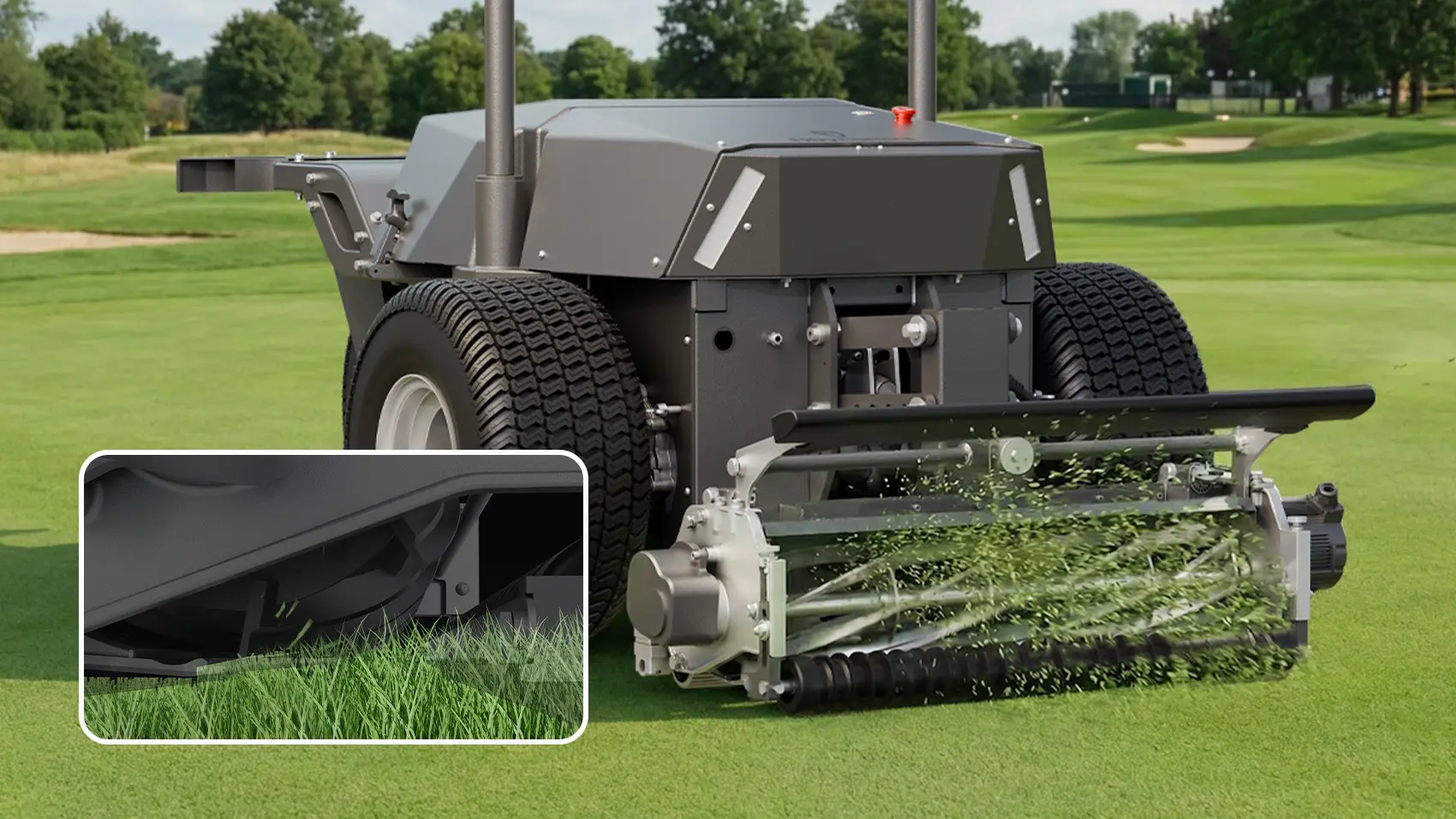

Achieve clean, scissor-like cuts with a reel system, minimizing leaf tearing and promoting healthier turf growth.

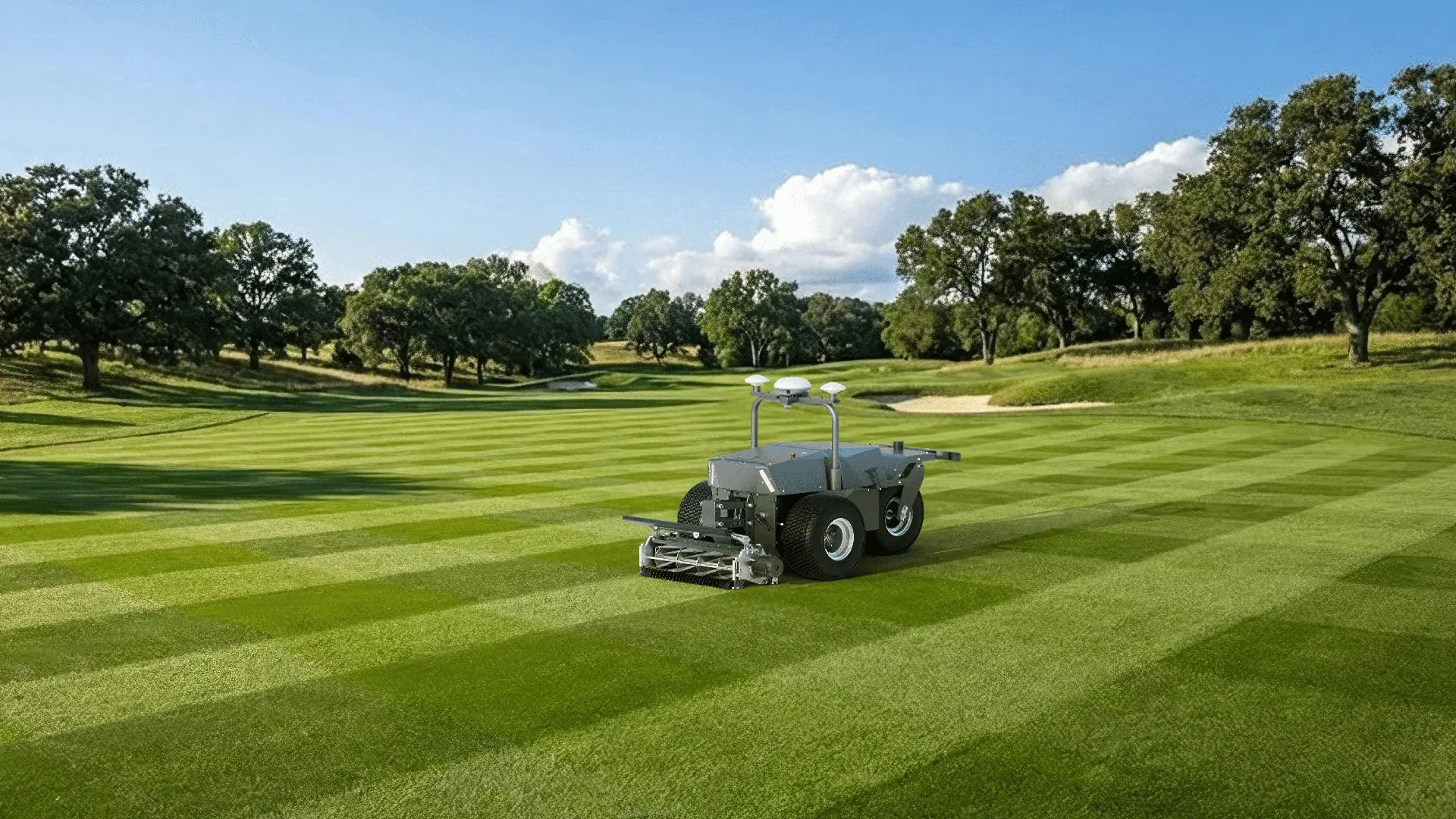

- Create clean, high-contrast stripes with precision roller blades. You can also customize striping widths to match your golf course's style.
- Adjust the mowing angle to easily change the direction of the stripes. This lets you create neat, professional, and custom patterns on your turf.

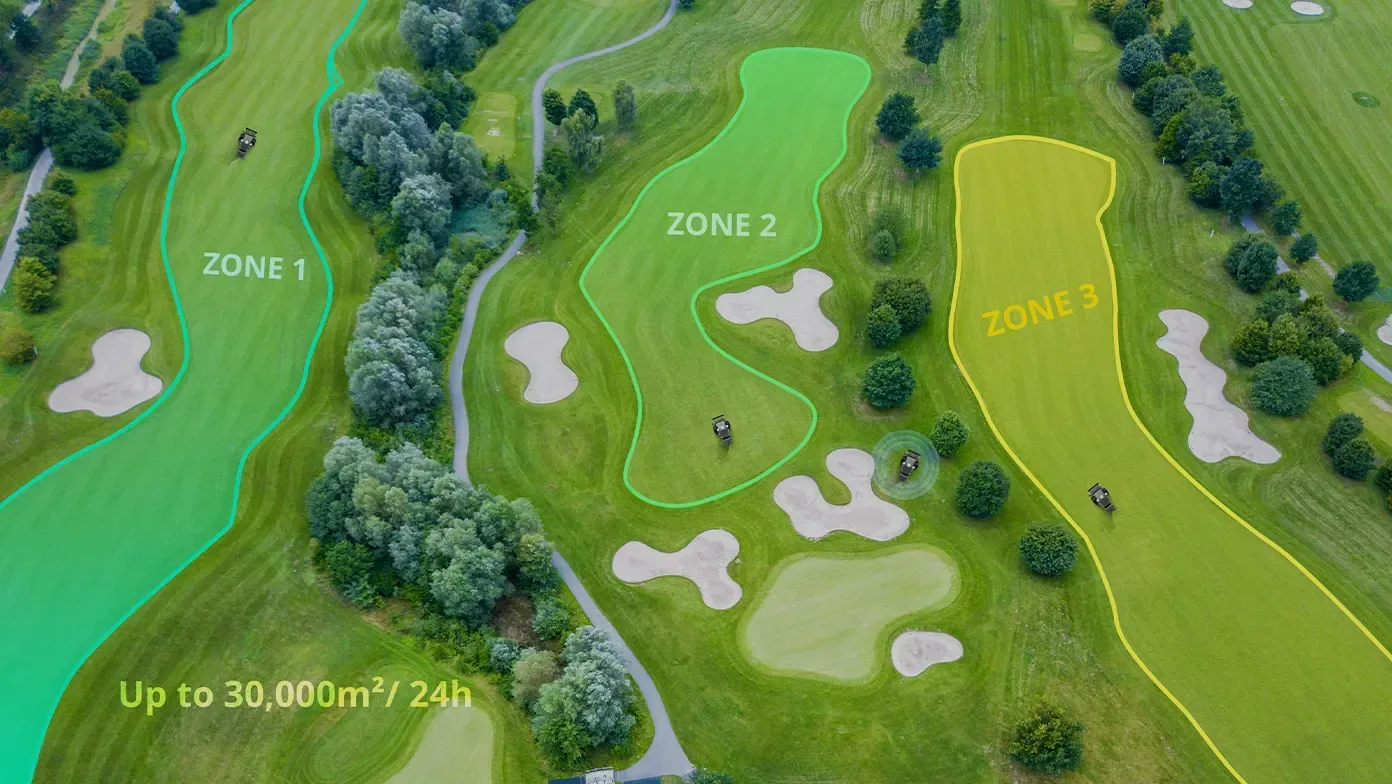

30,000m² One Day

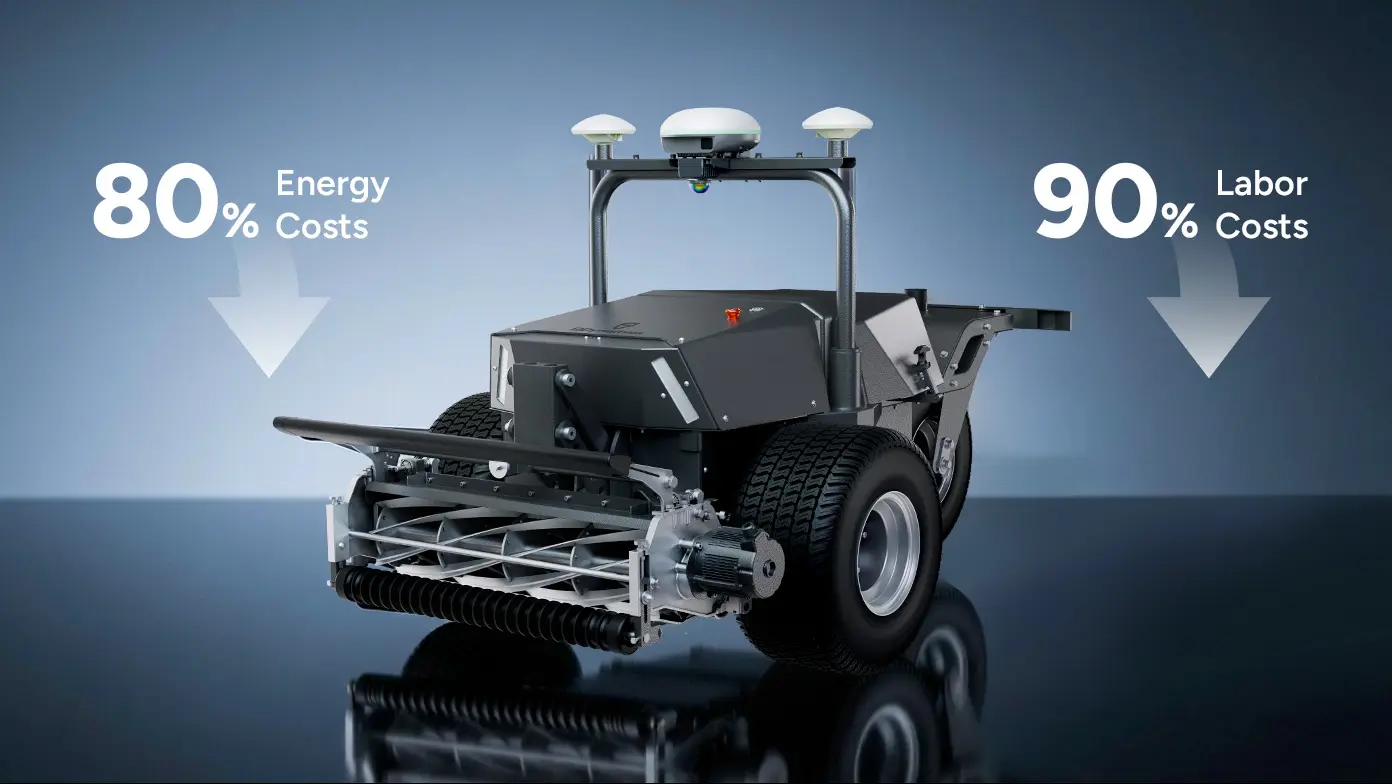

Maximize your operational ROI by automating repetitive tasks, allowing your team and resources to work smarter while achieving more.

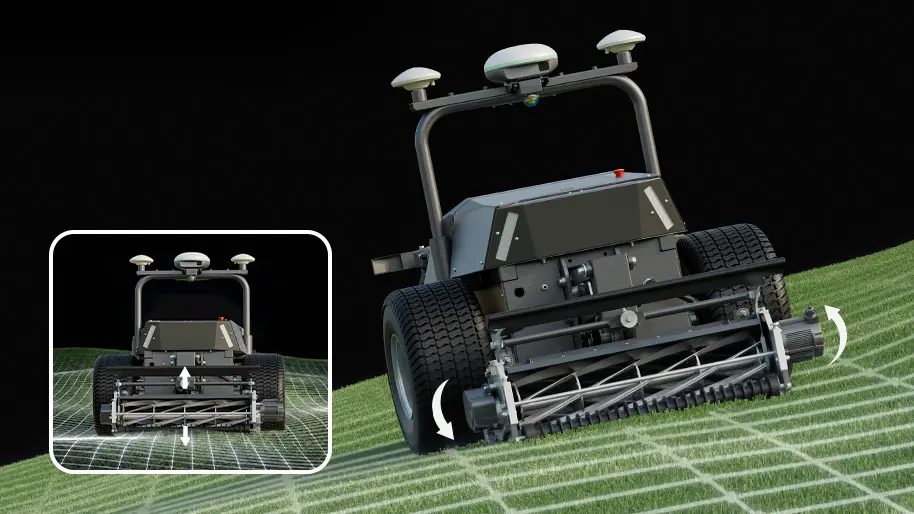

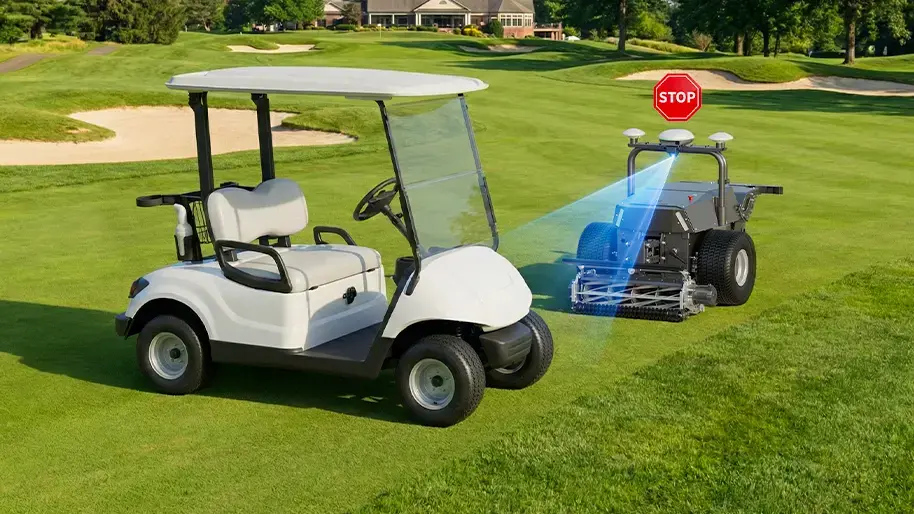

Hassle-Free Autonomy

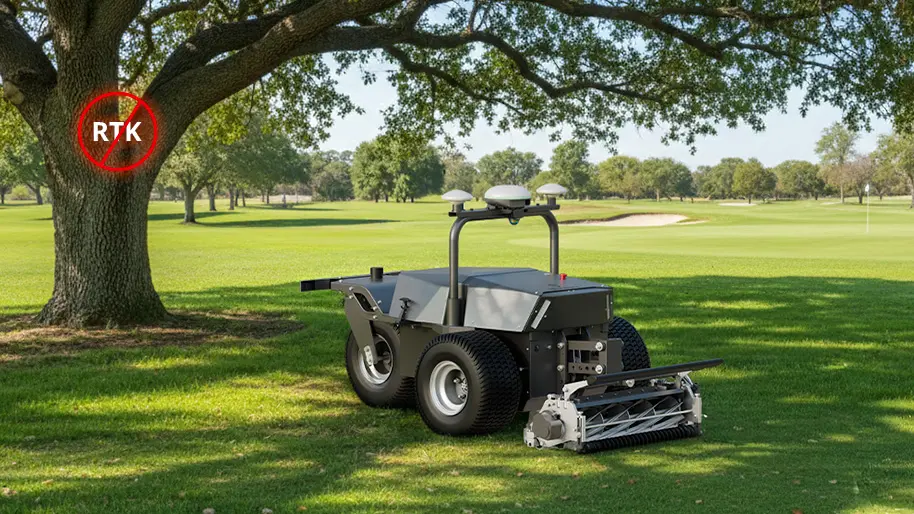

Maintain high-precision navigation with no signal loss under trees or in signal-obstructed areas.
- Equipped with front and rear bumpers and LiDAR obstacle avoidance, ensure stable and secure autonomous operation.
- Comprehensive Mowing Solution
- The RCM01 connects with S2 Max, V4e Pro, and GolfMind to support a complete turf-care workflow — from accurate site data and digital planning to efficient autonomous mowing.
Workflow
S2 Max scans the site in minutes and creates a reusable digital map for your entire robot fleet.
- With V4e Pro, teams can map boundaries directly on site and prepare mowing areas with a simple workflow.
- GolfMind turns the scan data into a real course model with clear working zones and routes.
- In GreenMaster Platform, the team can select mowing areas, generate routes, and preview the job before deployment.
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Mowing Capacity
- Max Mowing Area*
- 24-Hour Max Coverage: 48,000㎡ 72-Hour Max Coverage: 144,000㎡
- Max Mowing Area per Hour
- 3,000㎡
- Max Mowing Area per Charge
- 30,000㎡
- Max Climbing Ability*
- 20°
- Max Mowing Slope*
- 15°
- Boundary Type
- Virtual Wire
- Cutting Mode
- Customized Angle Mowing
Complete Unit
- Weight
- 364 kg
- Dimensions
- 1905×1077×1077 mm / 75×42.4×42.4 in.
- Software Update
- OTA
- Connectivity
- 4G, Wireless Connectivity
- Operating Temperature
- -20℃ to 45℃ (-4°F to 113°F)
- IP Rating
- IPX4
Cutting System
- Cutting Height
- 7-44 mm / 0.3-1.7 in.
- Cutting Width
- 686 mm.
- Reel Unit Weight
- 65 kg
- Reel Unit Dimensions
- 1000×370×350 mm / 39.4×14.6×13.8 in.
- Reel Speed
- 300–2200 RPM
- Number of Reels
- 1 (8 Blades per reel)
- Reel Diameter
- 177mm.
- Reel Width
- 685mm.
Battery & Charging
- Battery Capacity
- 8 KWh
- Battery Life
- 10h
- Charging Time
- 5h
- Rated Operating Voltage
- 48V
Positioning & Navigation
- Positioning
- RTK & LiDAR
See the RCM01 on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
