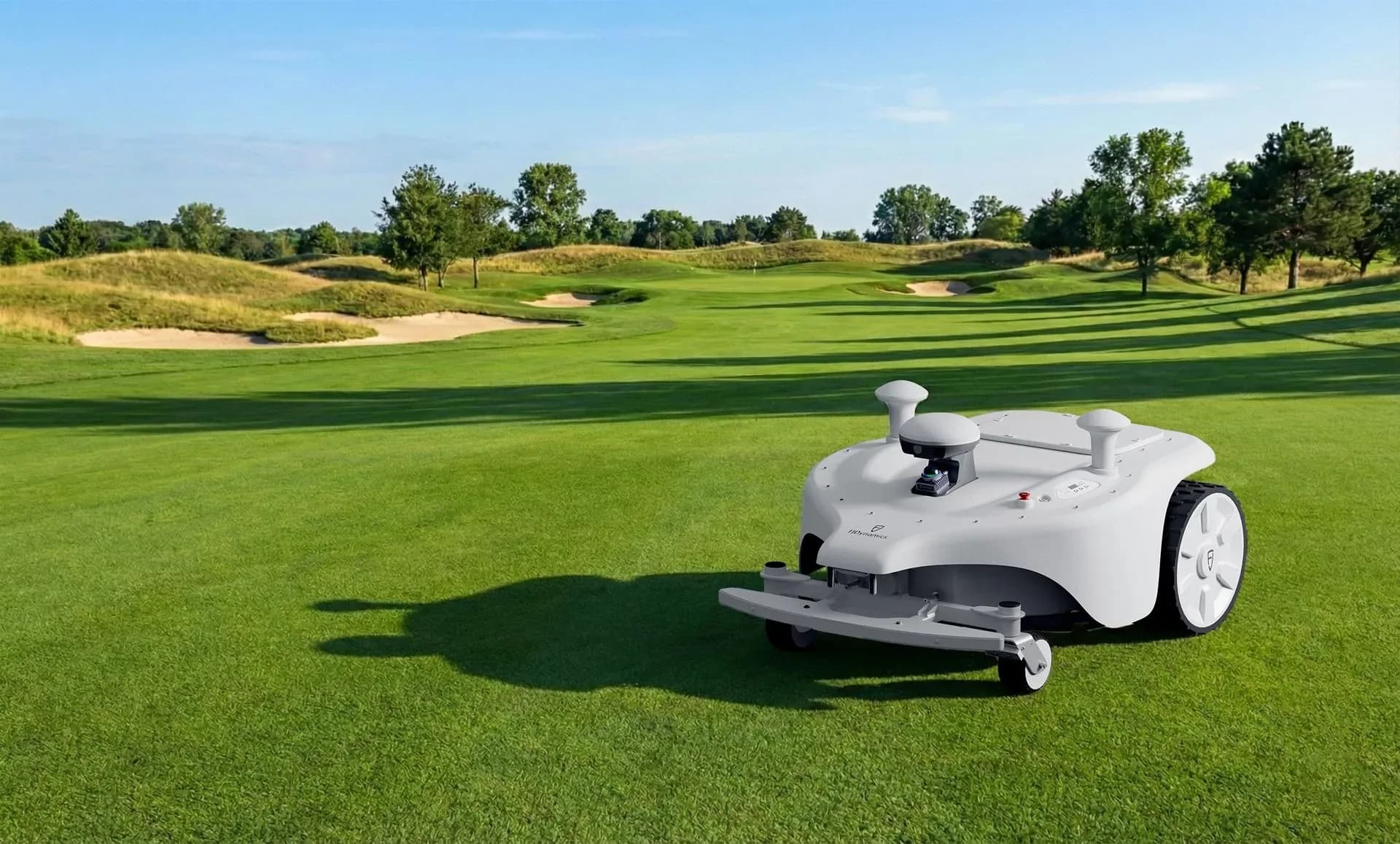

FJD Titan Robotic Mower
Elite 2-in-1 Turf Care. Without the Elite Price
Unmatched Efficiency & Quality
Mowing Area 108,000m² — precision at scale.
- Adjust cutting height from 10–100 mm in the app to match turf type and season.
- 730 mm cutting width delivers high daily output—up to 36,000 ㎡ per day.
- Allow for silent mowing at night to maximize course availability during the day.

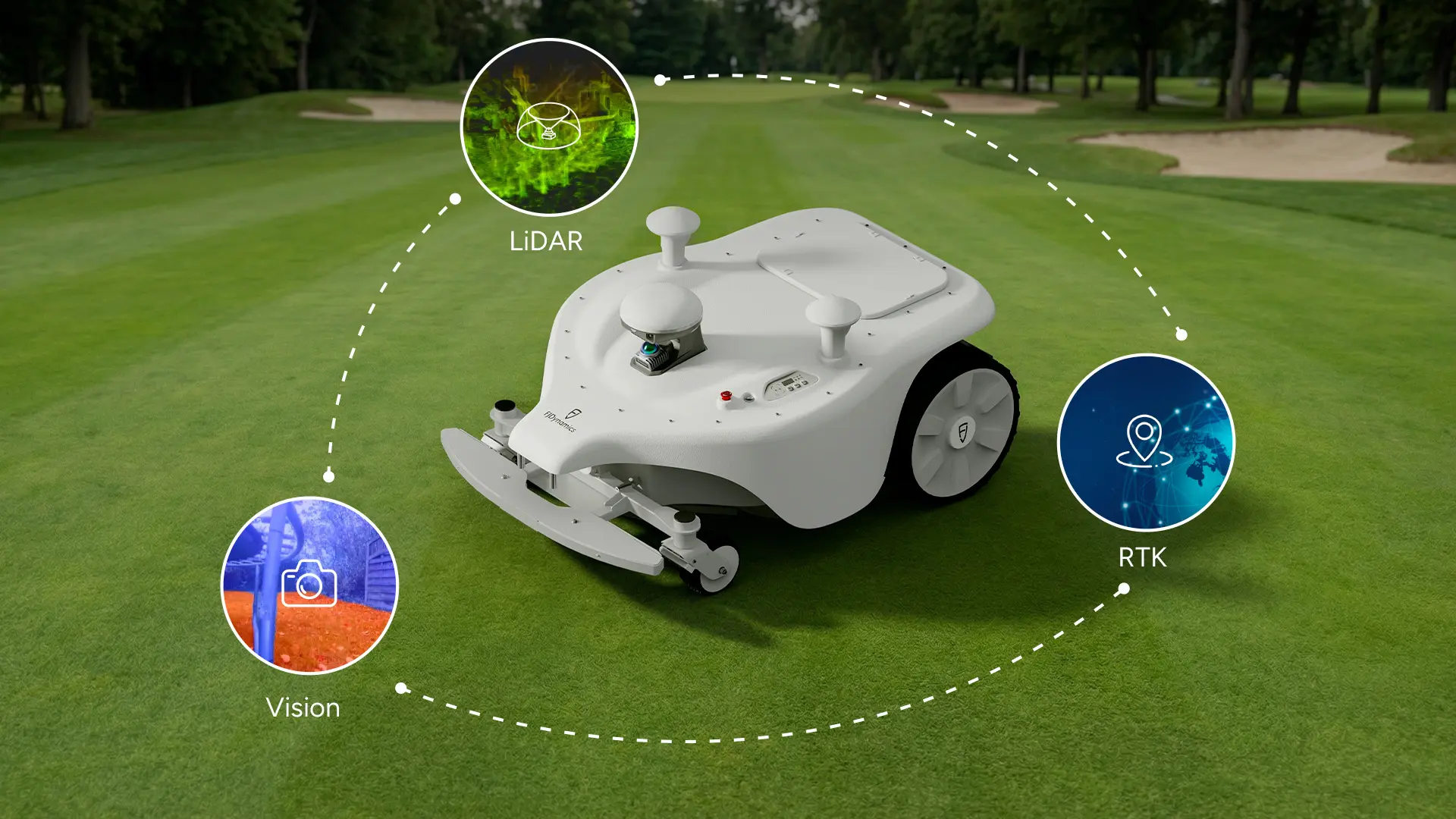

Reliable Performance in Any Terrain
Dual-RTK GNSS antennas, LiDAR, and Vision work together for stable positioning and obstacle avoidance.
- Conquer 20° slopes with superior traction and stability, driven by rotating front axle and dual-wheel drive.
- Pinpoint auto-charging minimizes downtime and maximizes mowing efficiency.

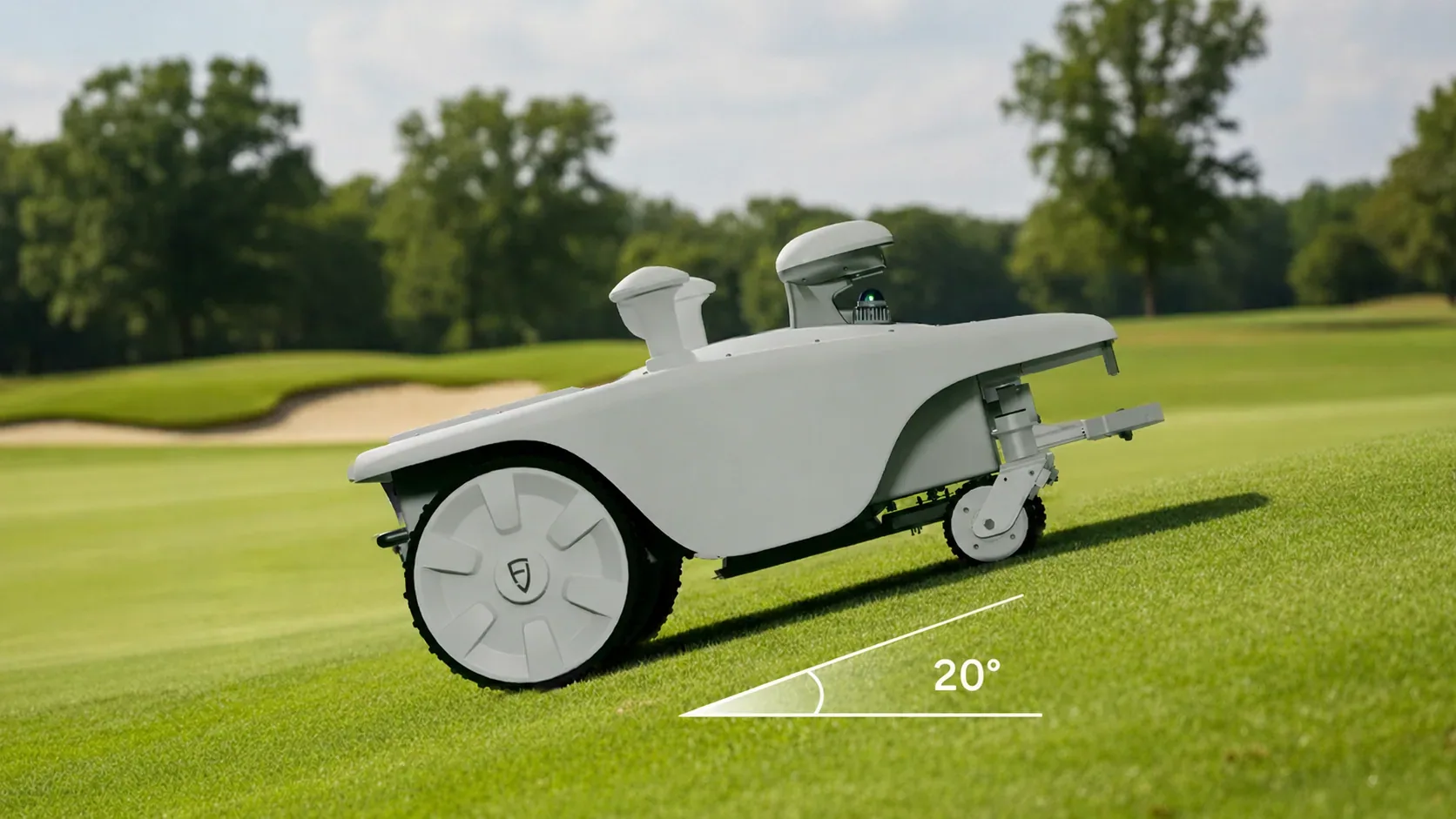

Terrain-Ready Traction
Conquer 20° slopes with superior traction and stability, driven by rotating front axle and dual-wheel drive.

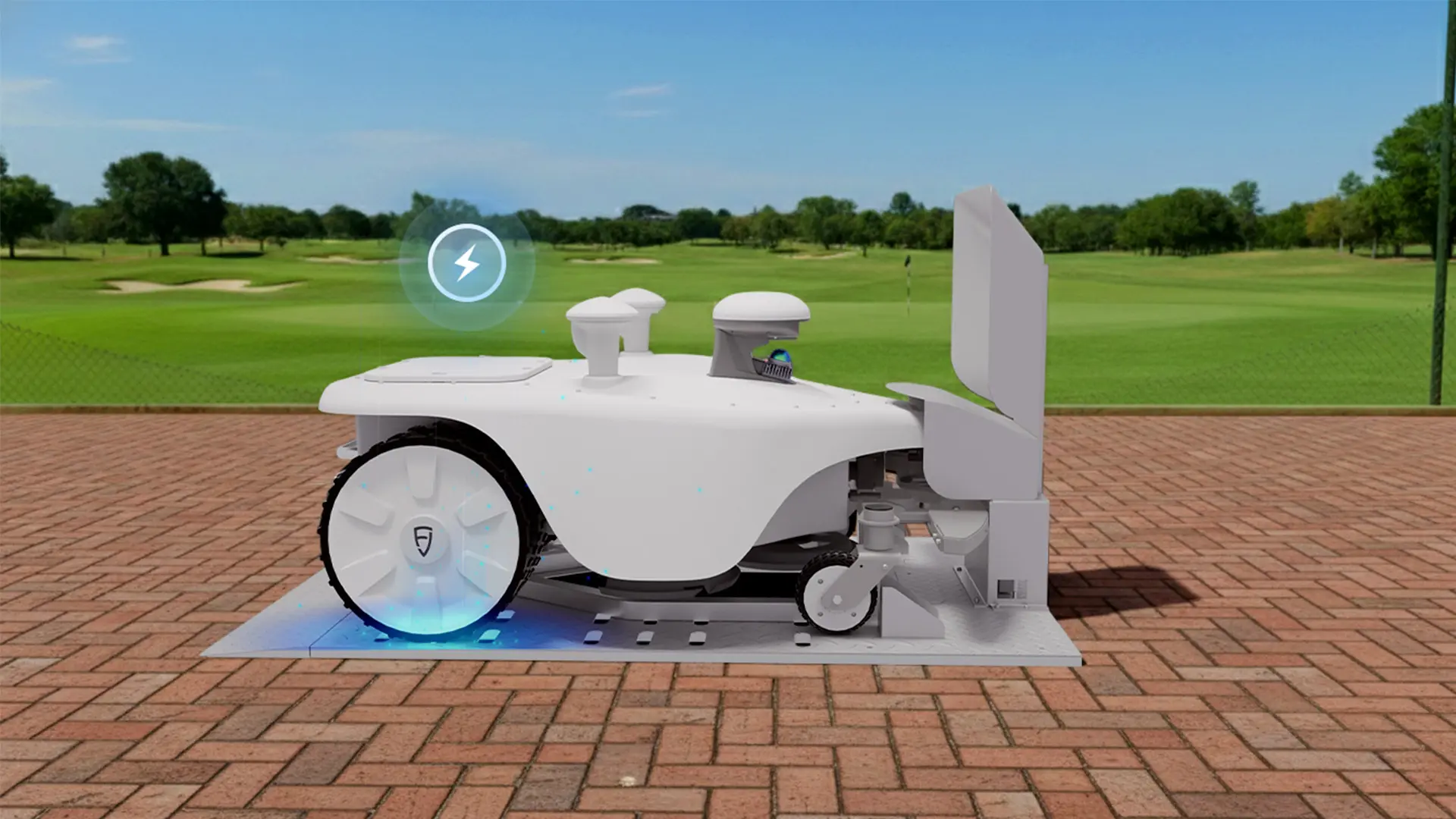

Smart Power Efficiency
Pinpoint auto-charging minimizes downtime and maximizes mowing efficiency.

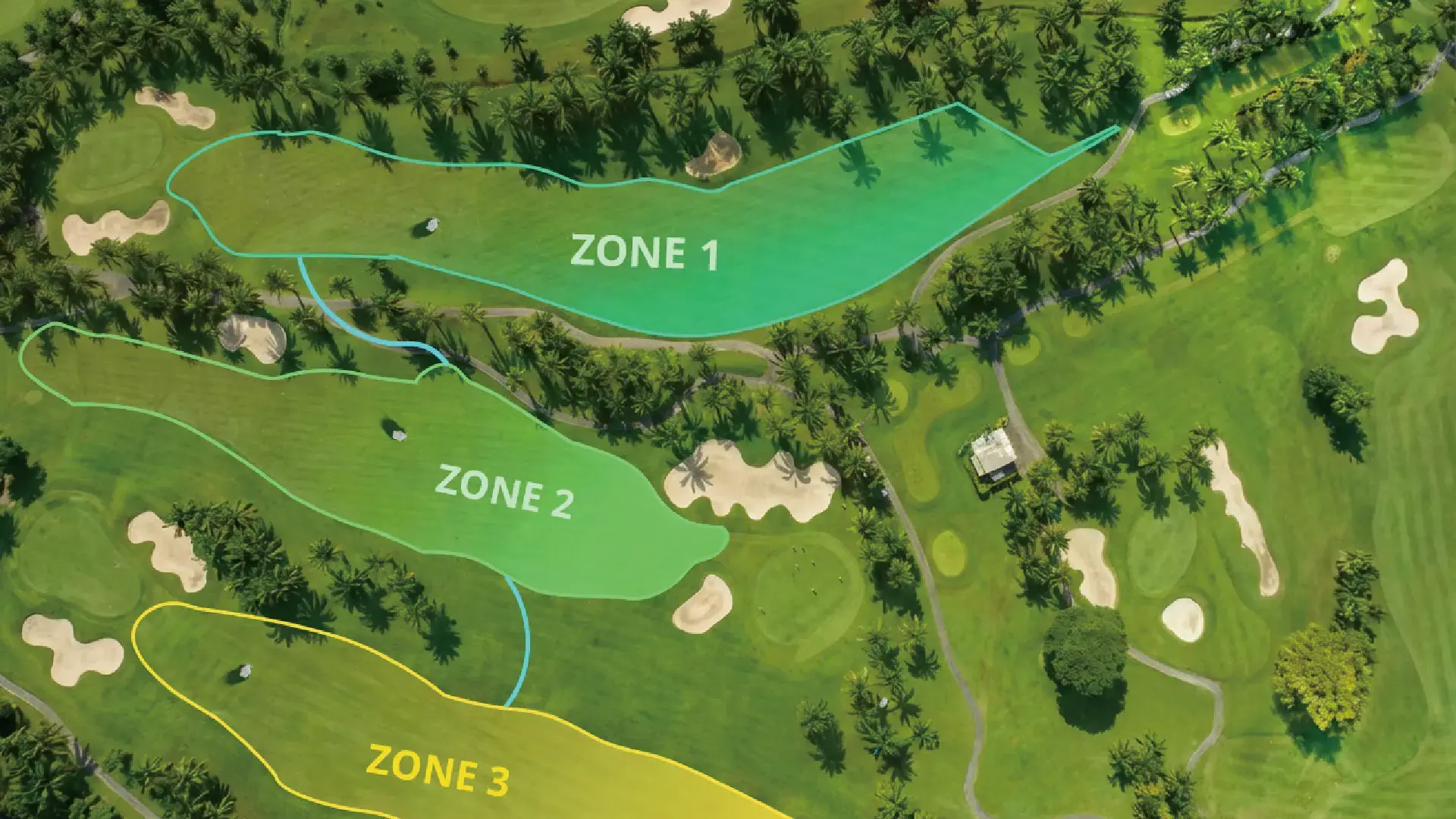

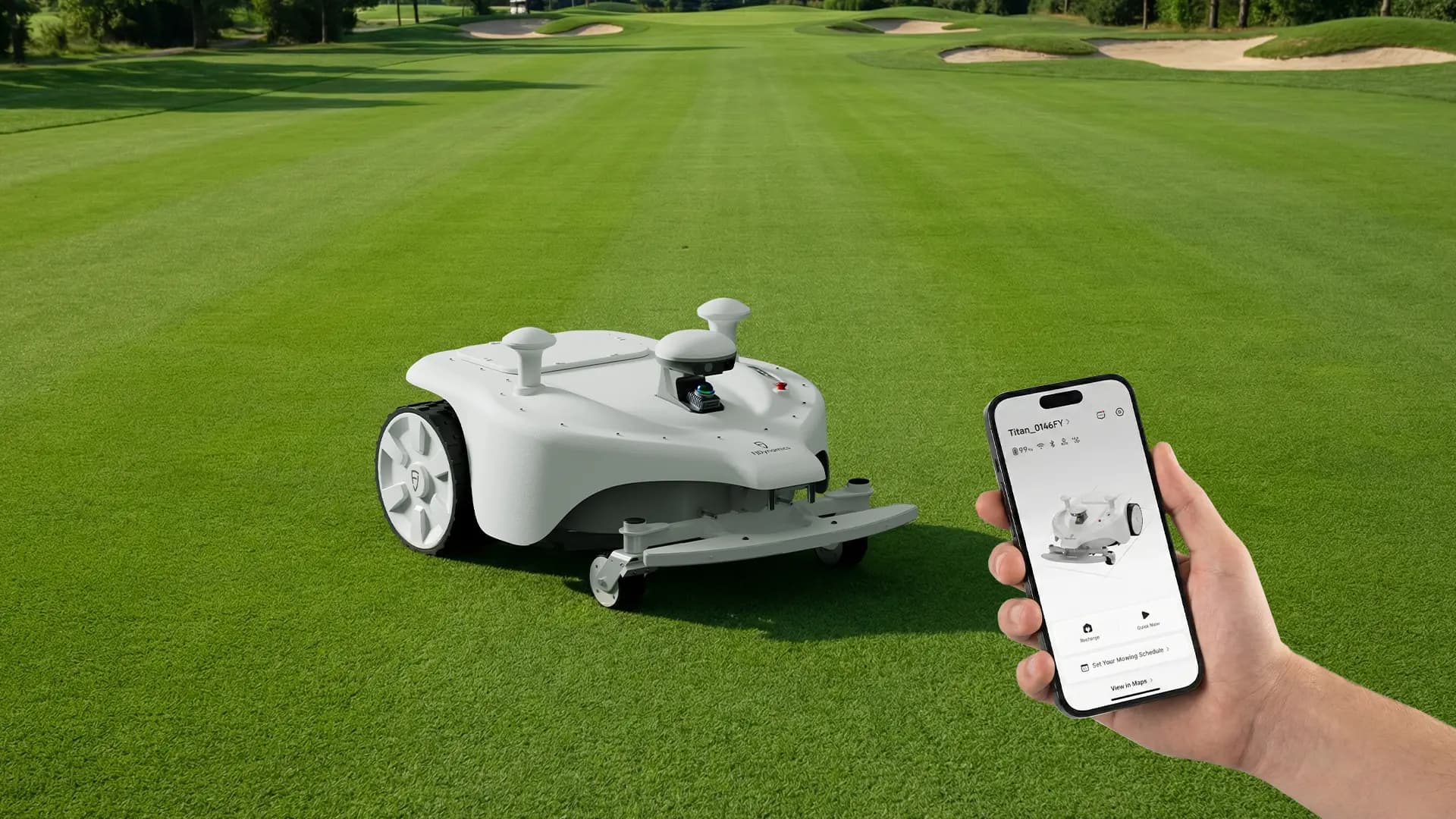

Unified Operations Management
Tap to deploy, monitor real-time progress, and customize work zones—all through your phone.
- Automated multi-field mowing with seamless transition between task areas.
Multi-Field Management
Automated multi-field mowing with seamless transition between task areas.

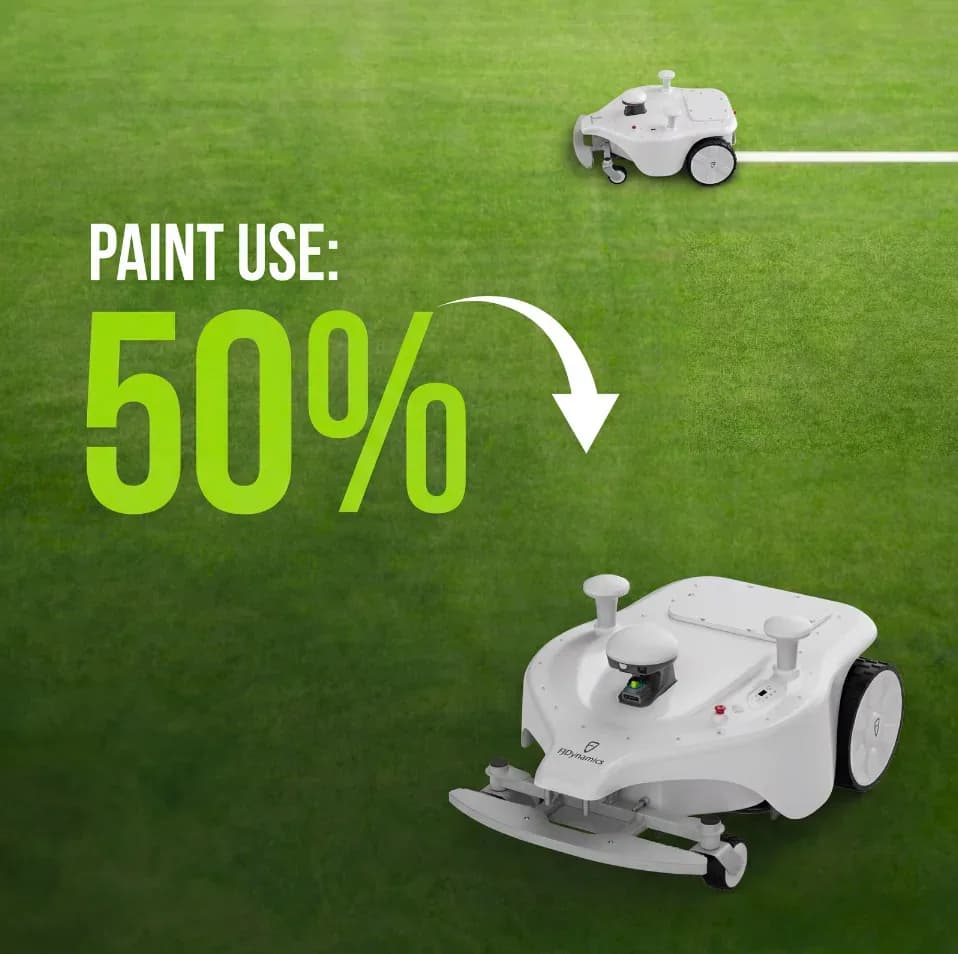

2 in 1 Titan + Line Marker Kit
For a full-size soccer field, manual line marking requires about 8L, while the robotic line marker only needs around 4L.
- Create the layout, start with one click, no human intervention required, saving up to 90% in labor costs.
- A single full charge allows for continuous line marking of 10 full-size soccer fields.
Cut Labor Costs by up to 90%
Create the layout, start with one click, no human intervention required, saving up to 90% in labor costs.
10 Soccer Fields per Charge
A single full charge allows for continuous line marking of 10 full-size soccer fields.

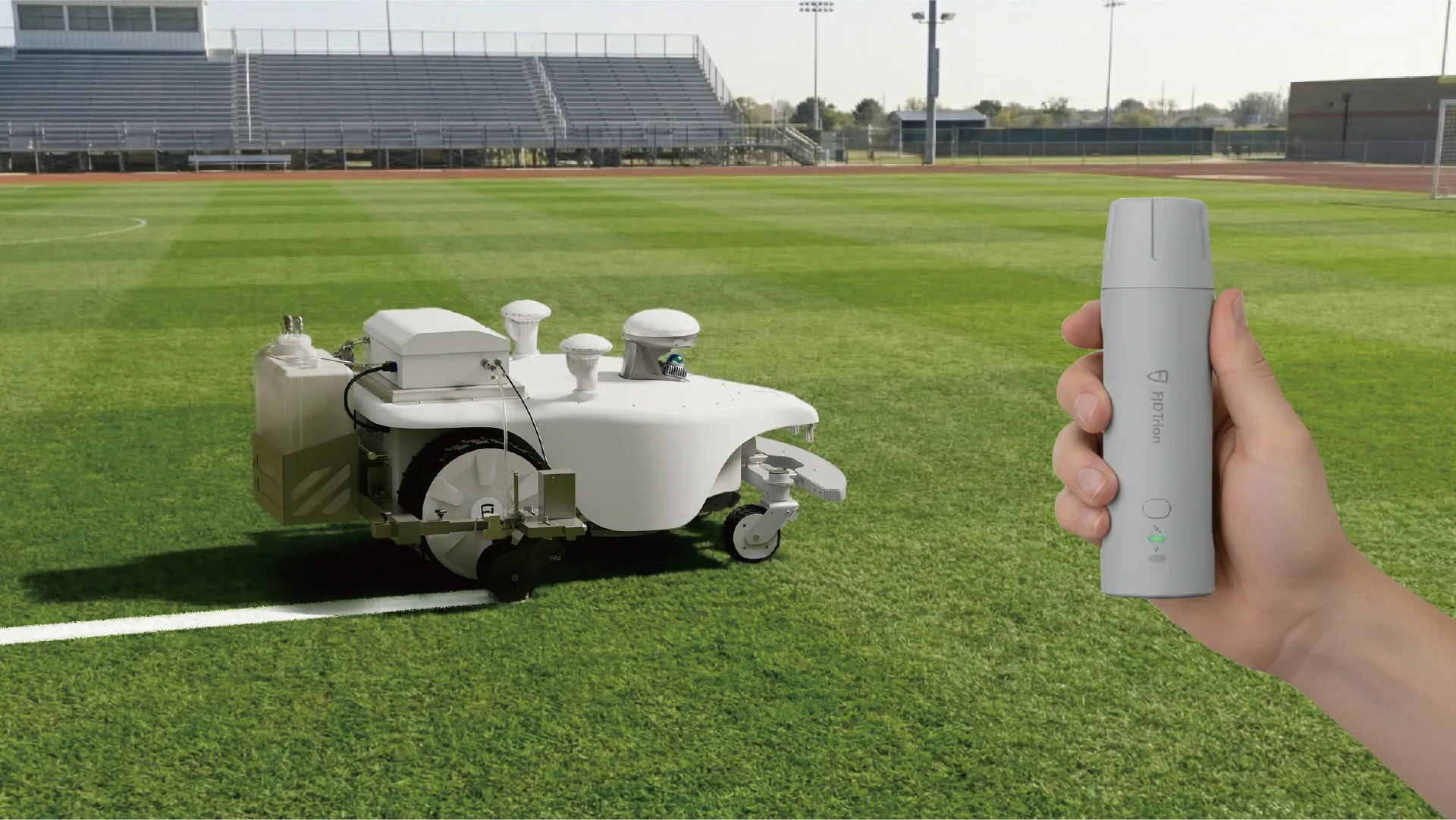

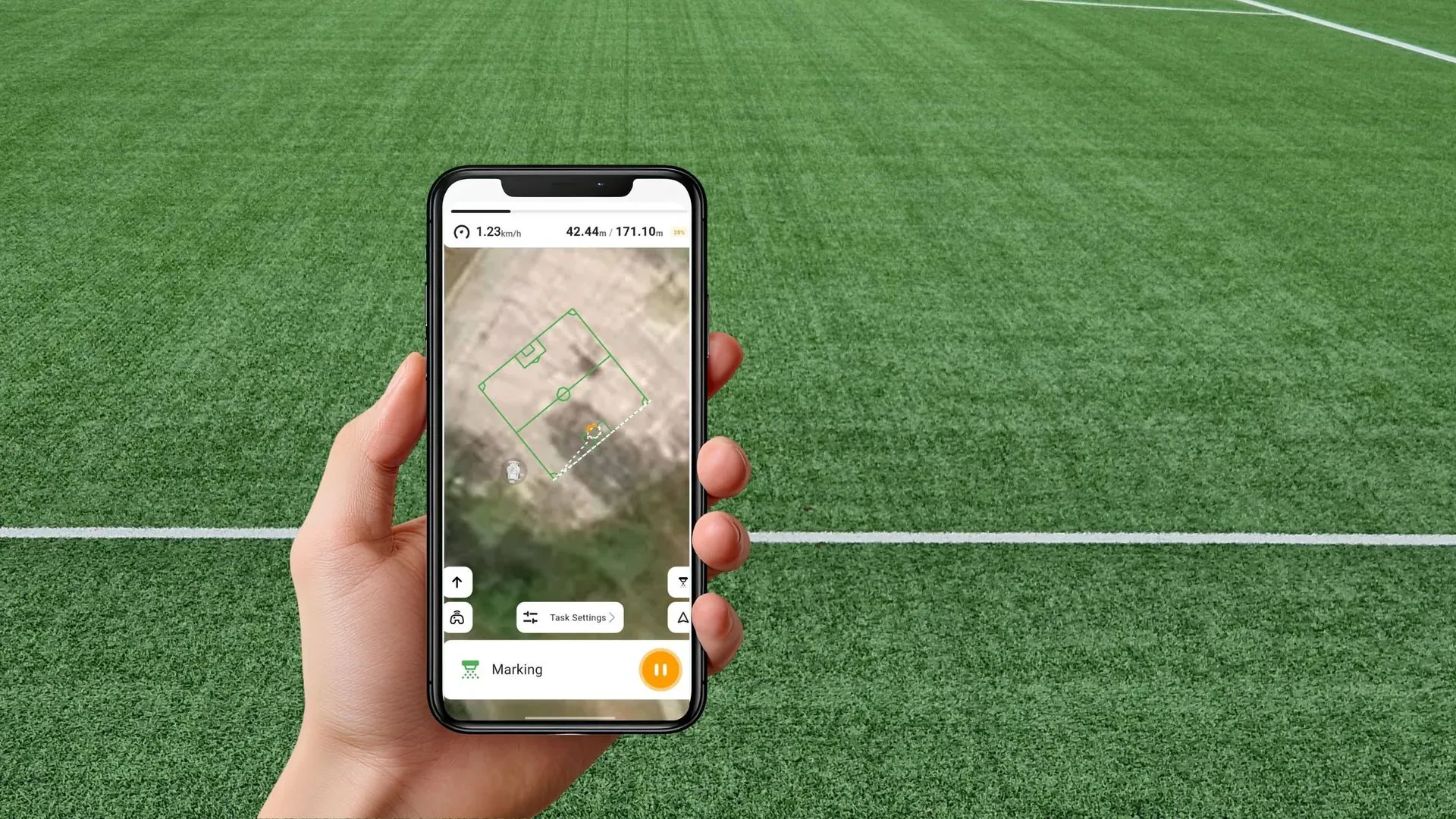

Smart Mapping. Seamless Marking.
Create field maps in minutes using the FJD Trion V4e Pro—no need to bring the robot to the site.
- Whether switching fields or pausing to refill paint, the robot resumes precisely where it left off—no overlapping, no wasted paint.
- Comprehensive Mowing Solution
- Titan works seamlessly with N10 CORS, S2 Max LiDAR Scanner and GolfMind, enabling precise mapping, smart management, and efficient mowing across diverse field conditions.
Seamless Spray Resume
Whether switching fields or pausing to refill paint, the robot resumes precisely where it left off—no overlapping, no wasted paint.

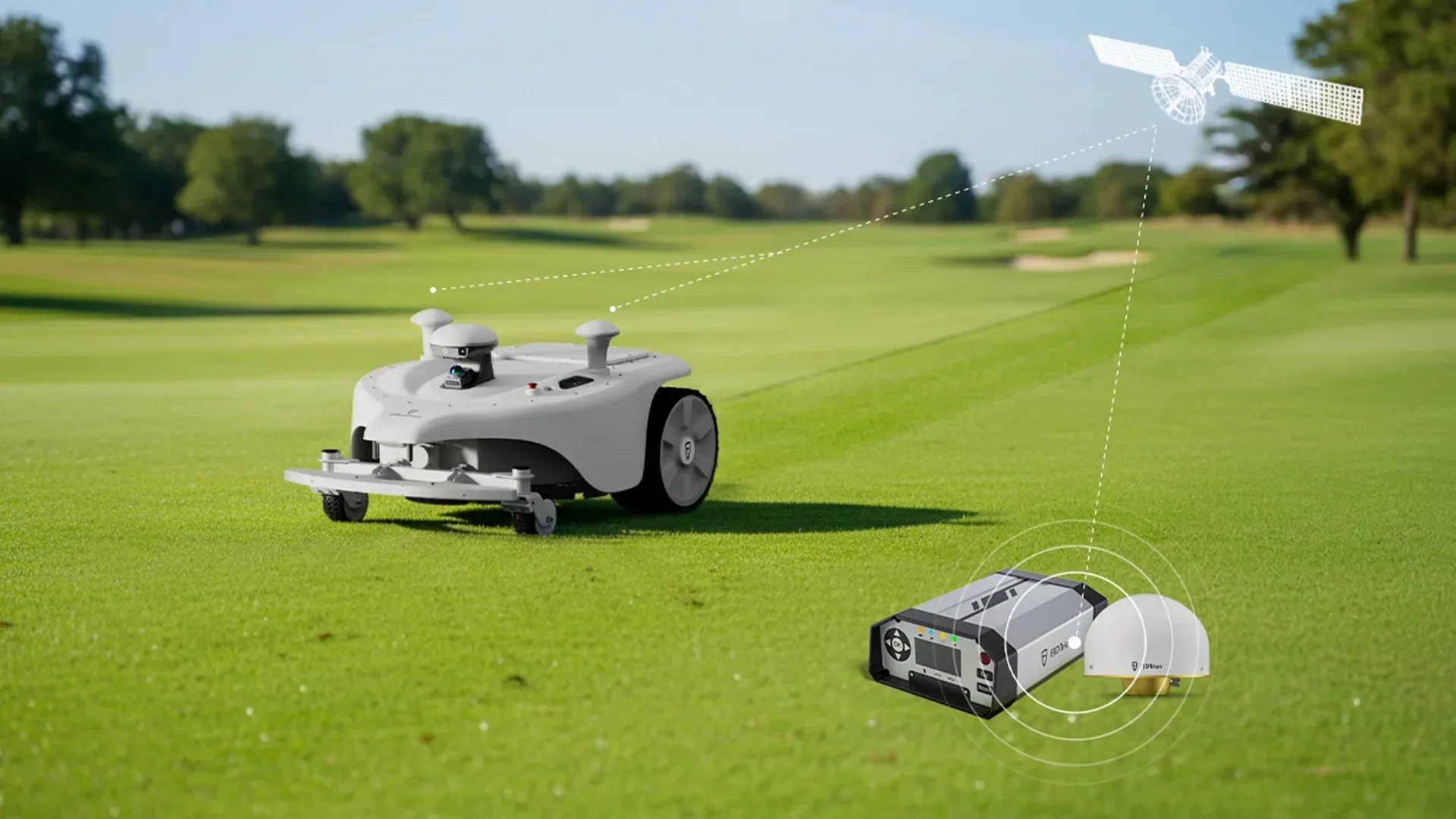

N10 CORS for Mowing
Providing stable RTK correction for mowing, the FJD Trion N10 CORS ensures precise and reliable positioning even in complex field conditions.

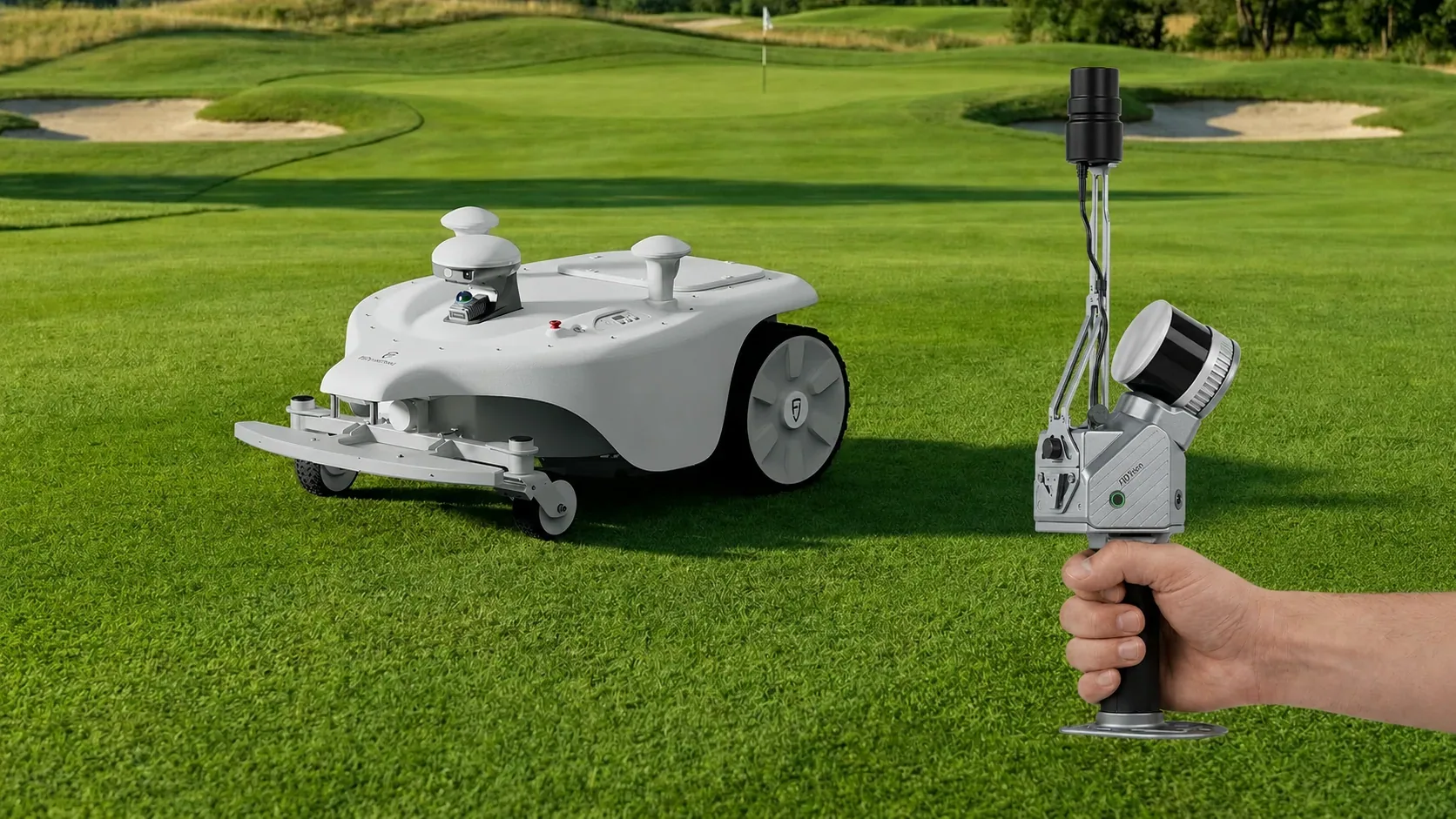

One Scan, Endless Reusability
Map in minutes with the FJD S2 Max LiDAR Scanner—no manual driving required. Create a digital asset shared across your entire fleet.

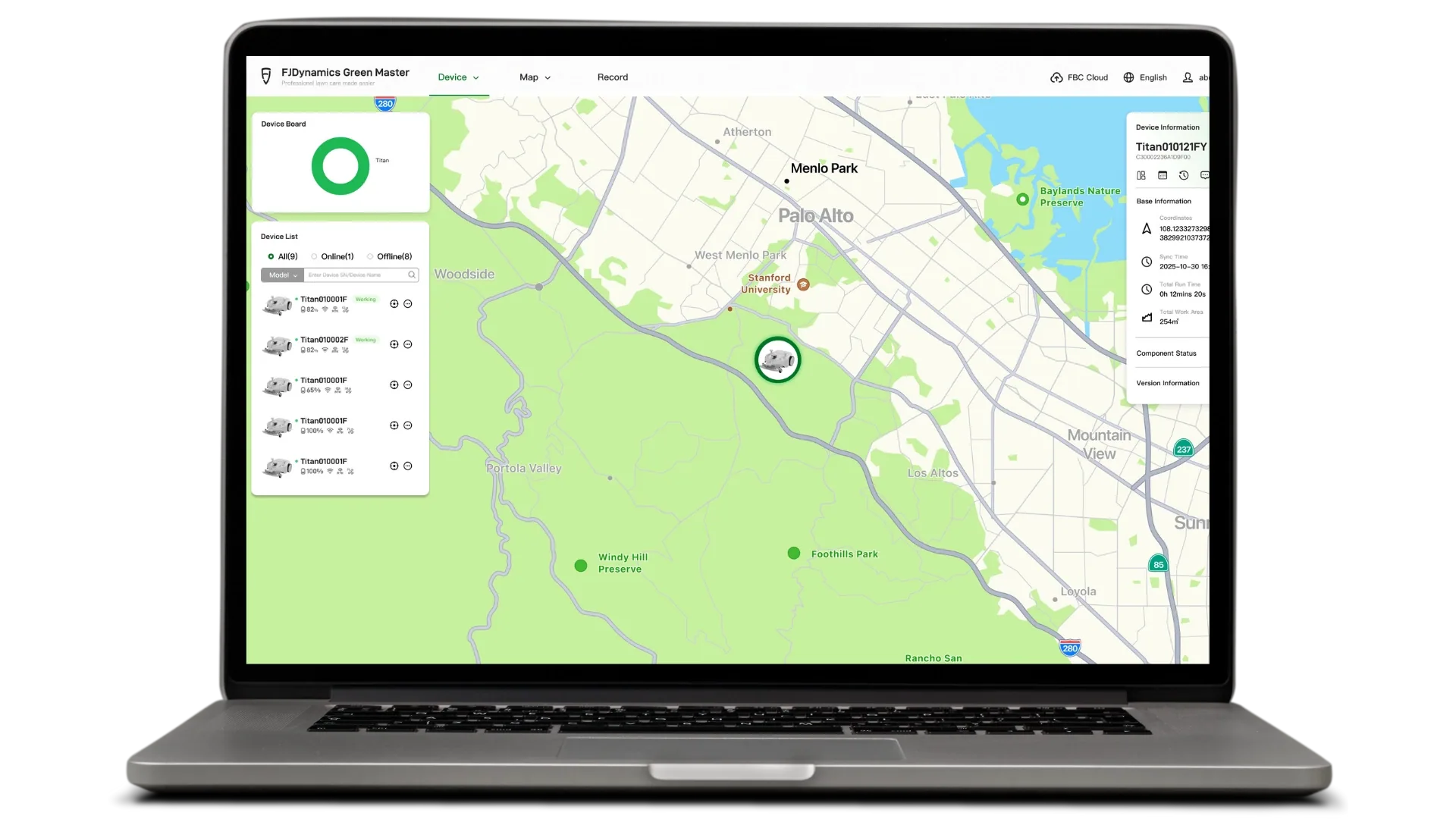

GolfMind Platform Integration
Integrated with the GolfMind Platform, all task maps and machine data are managed in one place for streamlined digital operations.
Application Scenarios
Golf Course
Sports Field
Public Garden
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Mowing Capacity
- Fast battery swapping mode*
- 72 h Maximum coverage 126,000 ㎡ 24 h Maximum coverage 42,000 ㎡
- Automatic charging mode
- 72 h Maximum coverage 108,000 ㎡ 24 h Maximum coverage 36,000 ㎡
- Max mowing area per charge
- 18,000 ㎡
- Max working slope*
- 20°
- Boundary type
- Virtual wire
- Cutting mode
- Customized angle mowing
Overall Dimensions
- Weight
- 122 kg / 287 lbs
- Dimensions
- 1400 × 1050 × 650 mm / 55.1 × 41.3 × 25.6 in.
- Software update
- OTA
- Connectivity
- 4G, Wireless Connectivity
- Operating temperature
- 0-55°C / 32-131°F
- IP rating
- IP64
Cutting System
- Cutting height
- 10-100 mm / 0.4-4 in.
- Cutting width
- 730 mm (260 mm each).
- Travel speed
- 0-3.6 km / h
- Cutting disc (pivoting razor blades per disc * 6)
- 3
Acoustic Performance
- Test Condition
- A-Weighted Sound Pressure Level
- Cutter speed – level 1
- 52 dB(A)
- Cutter speed – level 2
- 58 dB(A)
- Cutter speed – level 3
- 66 dB(A)
Line Marker Kit
- Weight
- 33 kg
- Dimensions
- 600×1300x700 mm / 23.6x51.2x27.6 in.
- IP rating
- IP54
- Max marking speed
- 3.6km/h
- Paint tank capacity
- 25L
- Line width range
- 60-120 mm / 2.4–4.7 in.
- Nozzle height
- 30-120 mm / 1.2–4.7 in.
- Operating temperature
- 5–35°C (41–95°F)
- Max marking time per charge
- 7.5 h
Battery & Charging
- Charging mode
- Manual & automatic
- Battery life
- 480 min
- Charging time
- 120 min
Positioning and Navigation
- Positioning
- RTK + LiDAR + Vision
