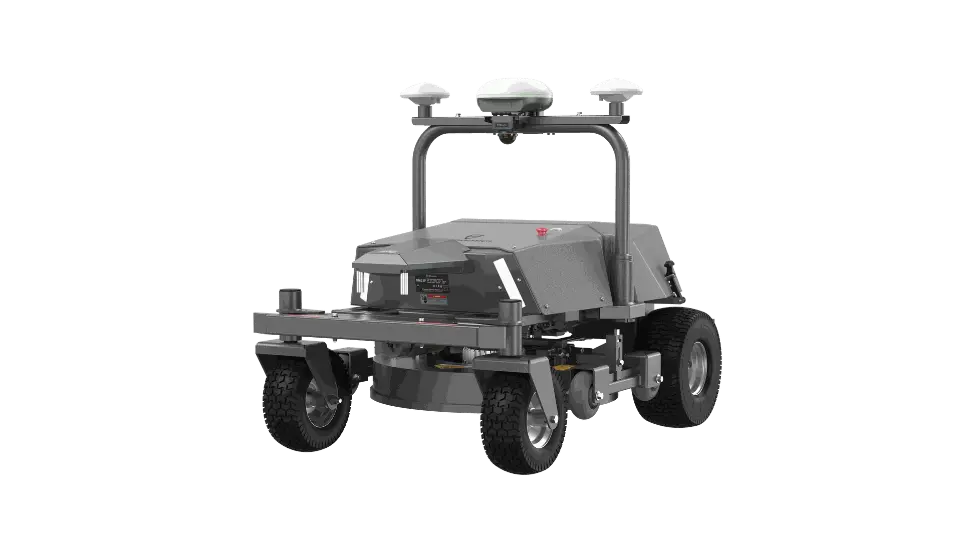

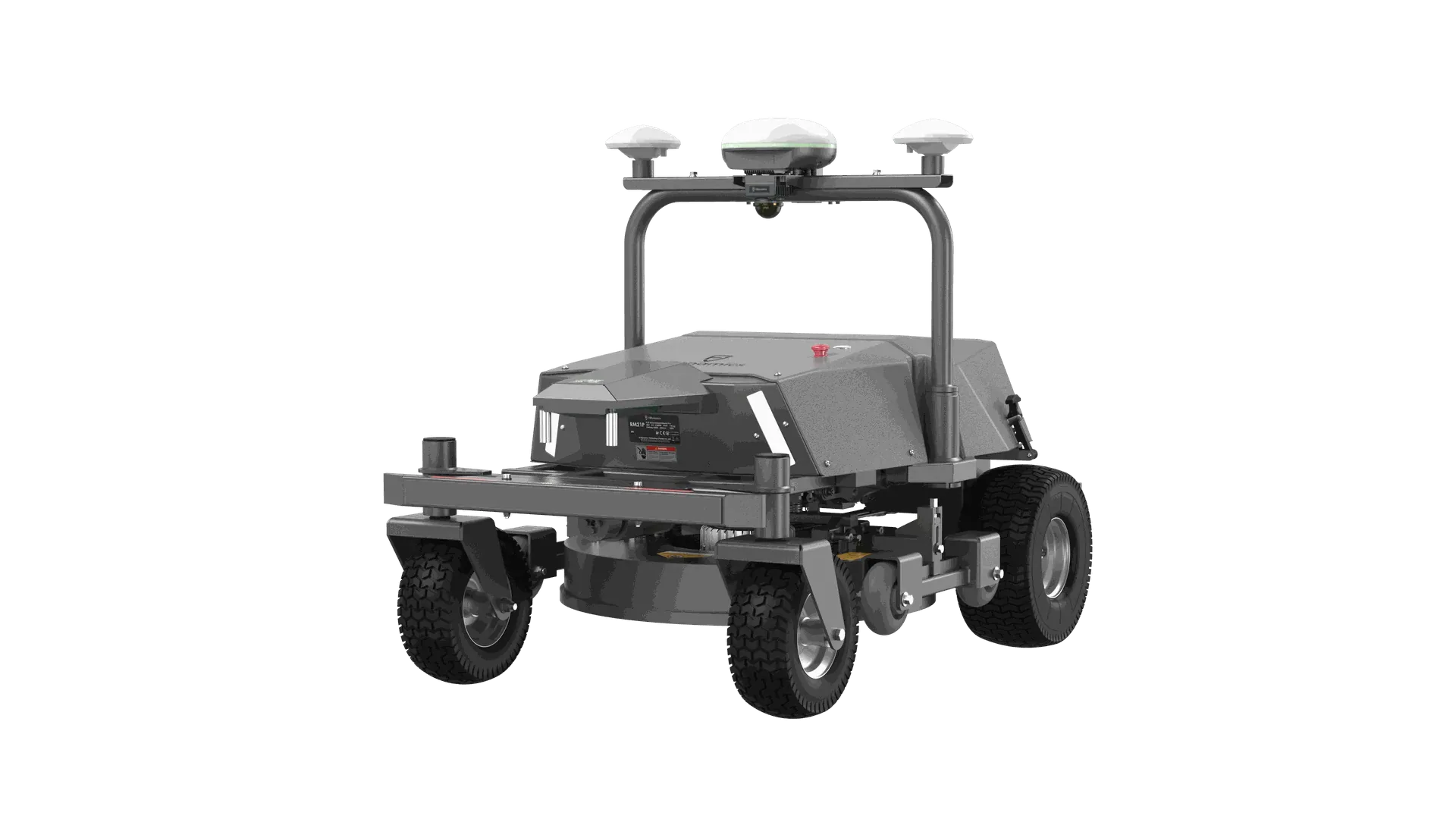

Why Choose FJD Rough Ranger

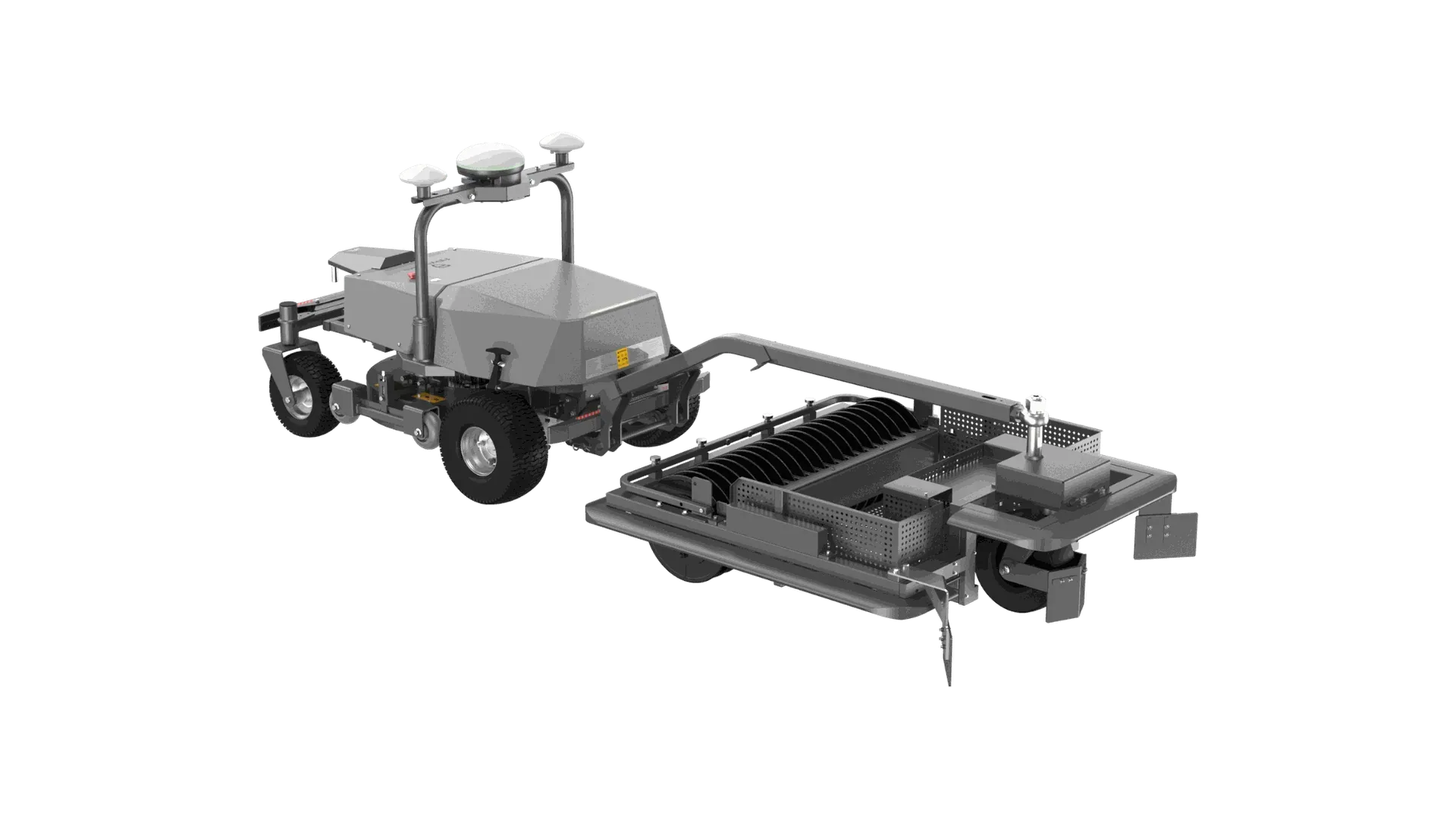

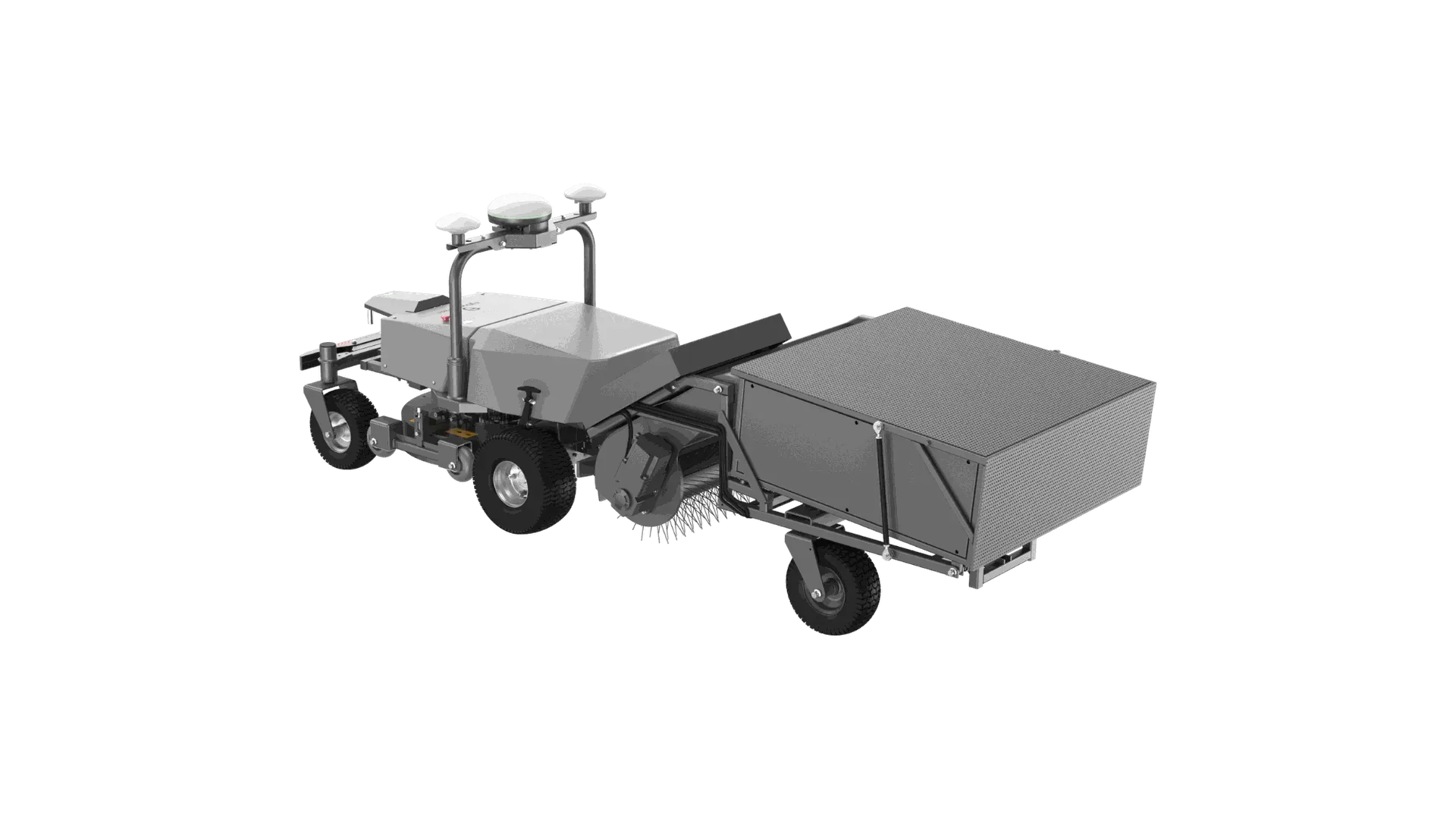

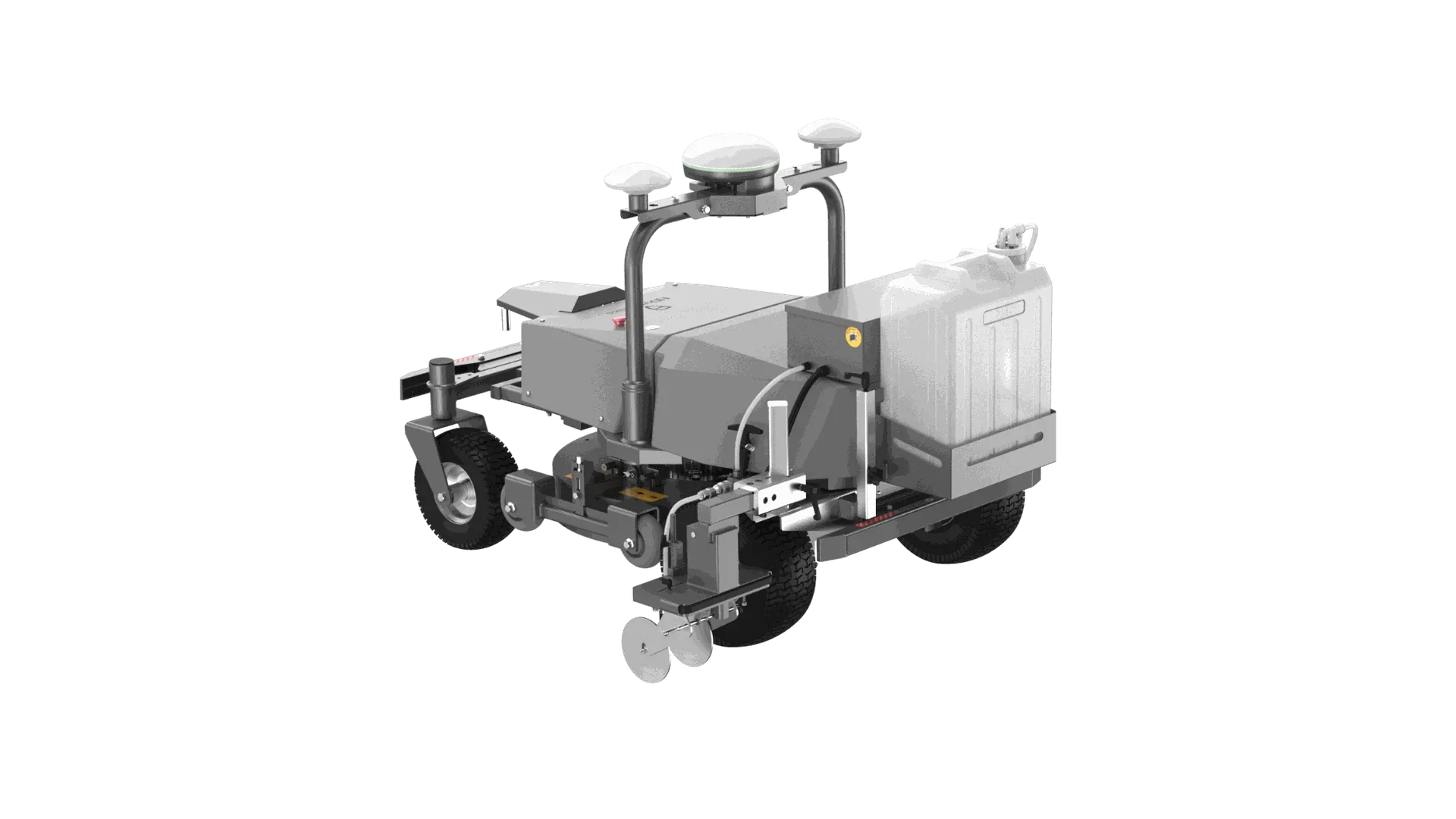

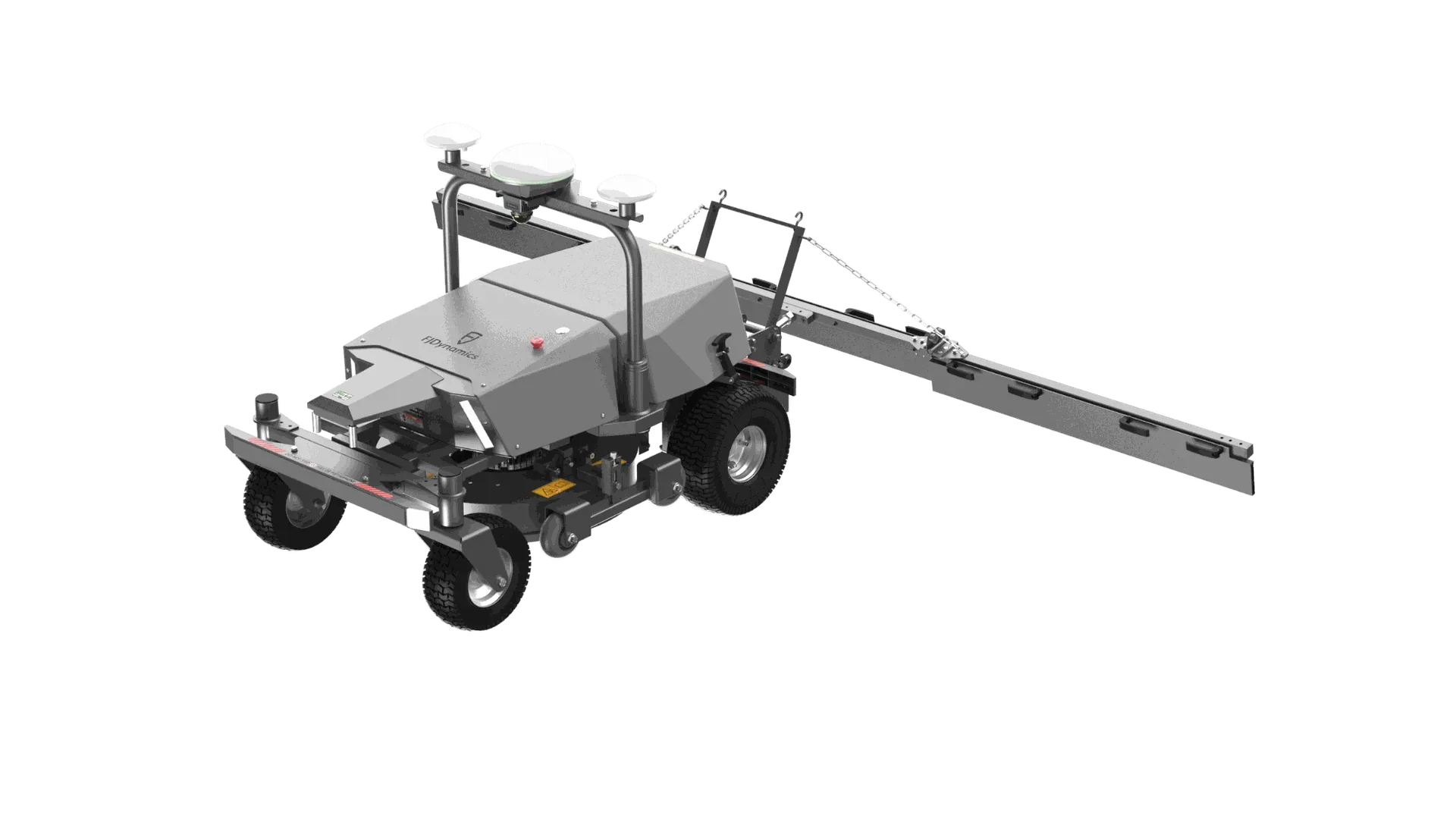

Rough Ranger helps turf teams reduce repetitive manual work across mowing, ball collection, line marking, grass collection, and dew brushing. One robotic platform can support multiple daily maintenance tasks, helping teams improve labor efficiency, energy use, and operating ROI.
90%
Labor Cost Savings
80%
Energy Cost Savings
50%
Higher Operating ROI
What Rough Ranger Can Do
Smarter Mowing. Fewer Missed Areas.
Rough Ranger connects RTK, LiDAR and vision so it keeps finding a clean line, even where signal or terrain gets difficult.
RTK + LiDAR fusion ensures reliable performance even under trees or in signal-challenging areas.
Plan, manage, and monitor multiple mowing zones in the app with less repeated setup across different turf areas.
Automatically generates optimized mowing routes to help reduce overlap, missed areas, and manual route planning.
360° LiDAR works with front and rear bumpers for safer autonomous operation around obstacles.
Uneven terrain? No worries!
Built to keep a clean, consistent cut even where the ground doesn't cooperate.
Front suspension chassis ensures stable operation on uneven terrain, providing a smooth mowing experience.
The floating cutting deck follows uneven ground for a consistent cut with less turf scalping.
Workflow
From site scan to finished job in five connected steps.
- S2 Max scans the site in minutes and creates a reusable digital map for your entire robot fleet.
- With V4e Pro, teams can map boundaries directly on site and prepare mowing areas with a simple workflow.
- GolfMind turns the scan data into a real course model with clear working zones and routes.
- In GreenMaster Platform, the team can select mowing areas, generate routes, and preview the job before deployment.
- With FJD's all-in-one workflow, teams can move from scan to mowing with less manual setup and more control.

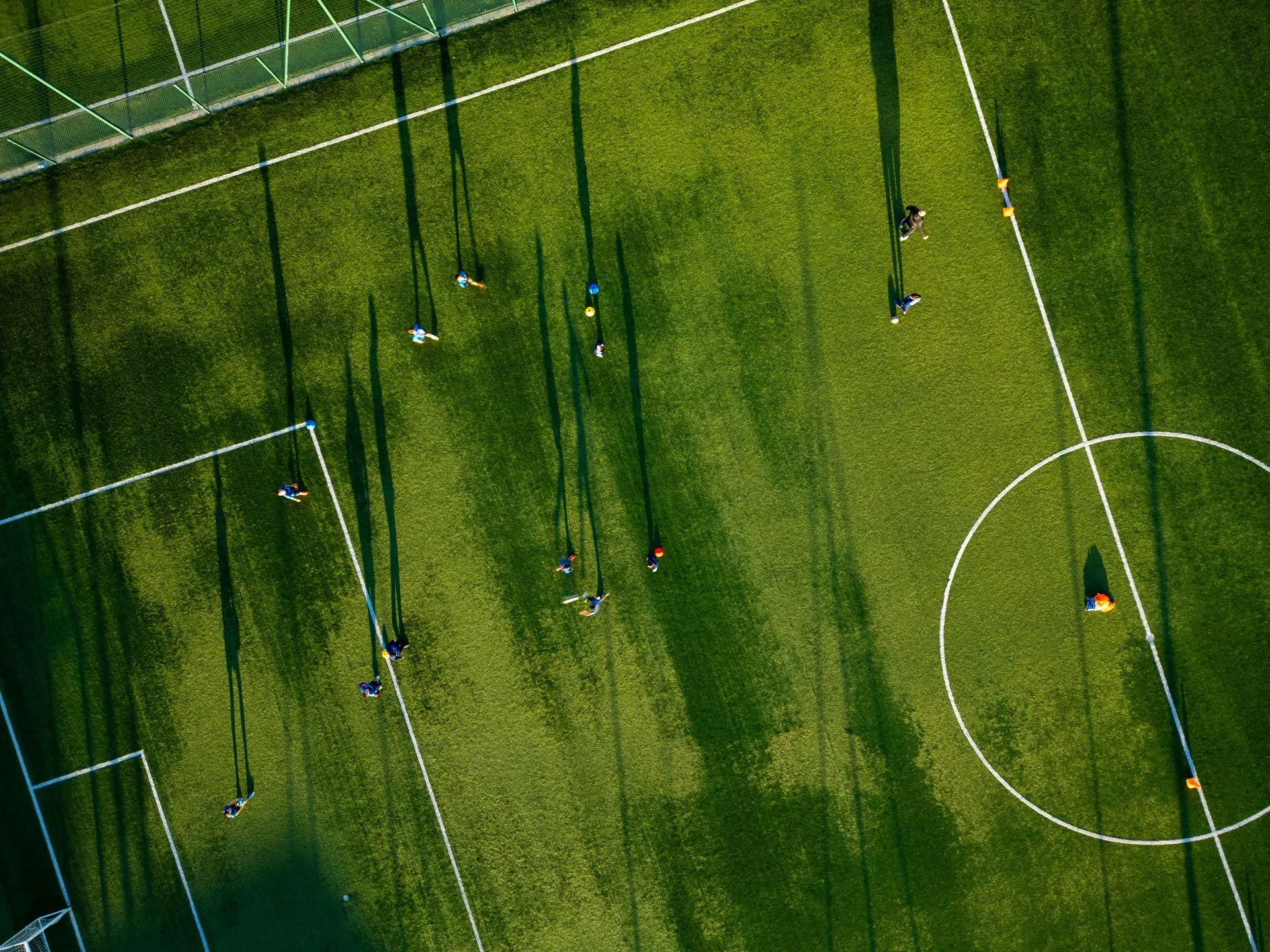

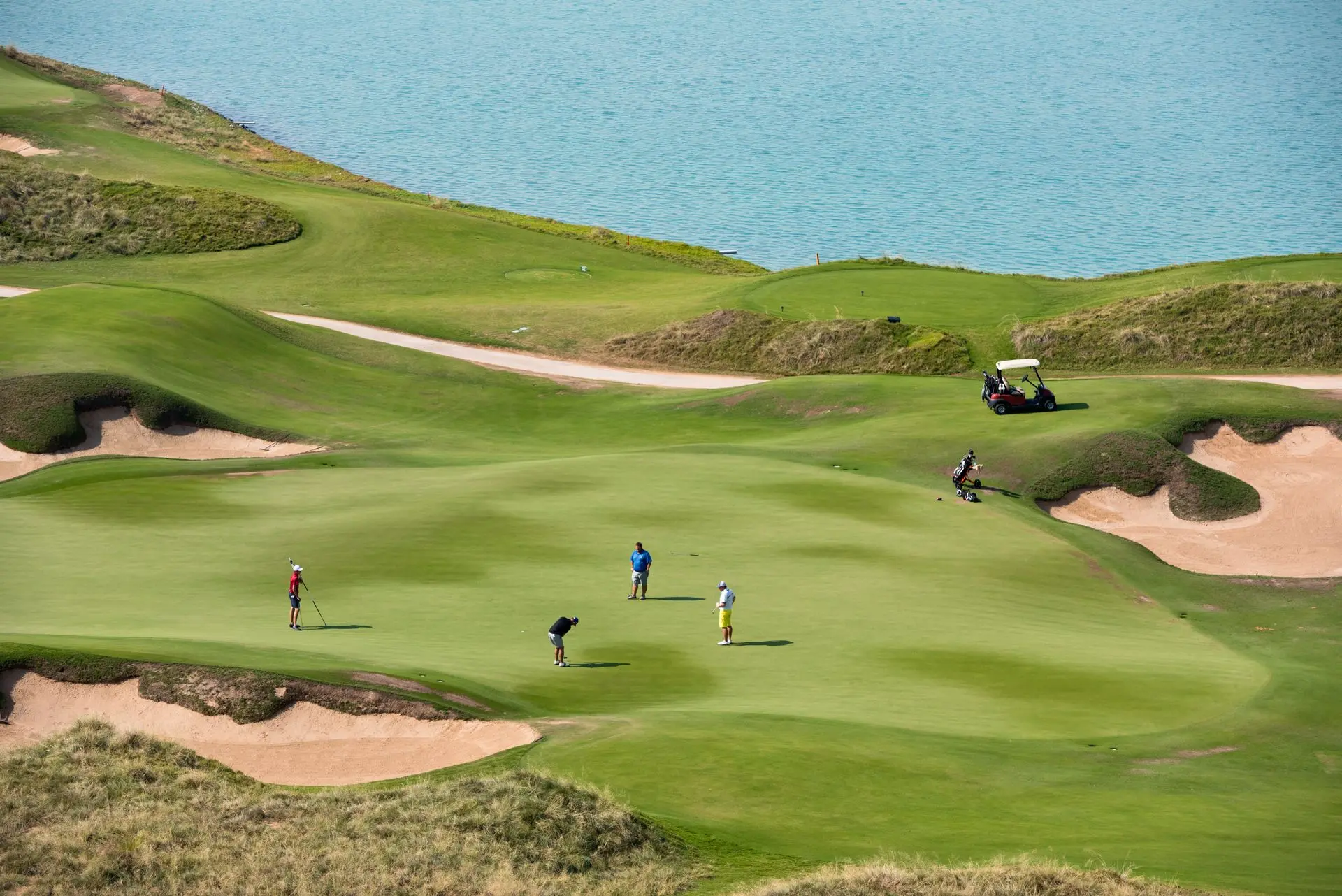

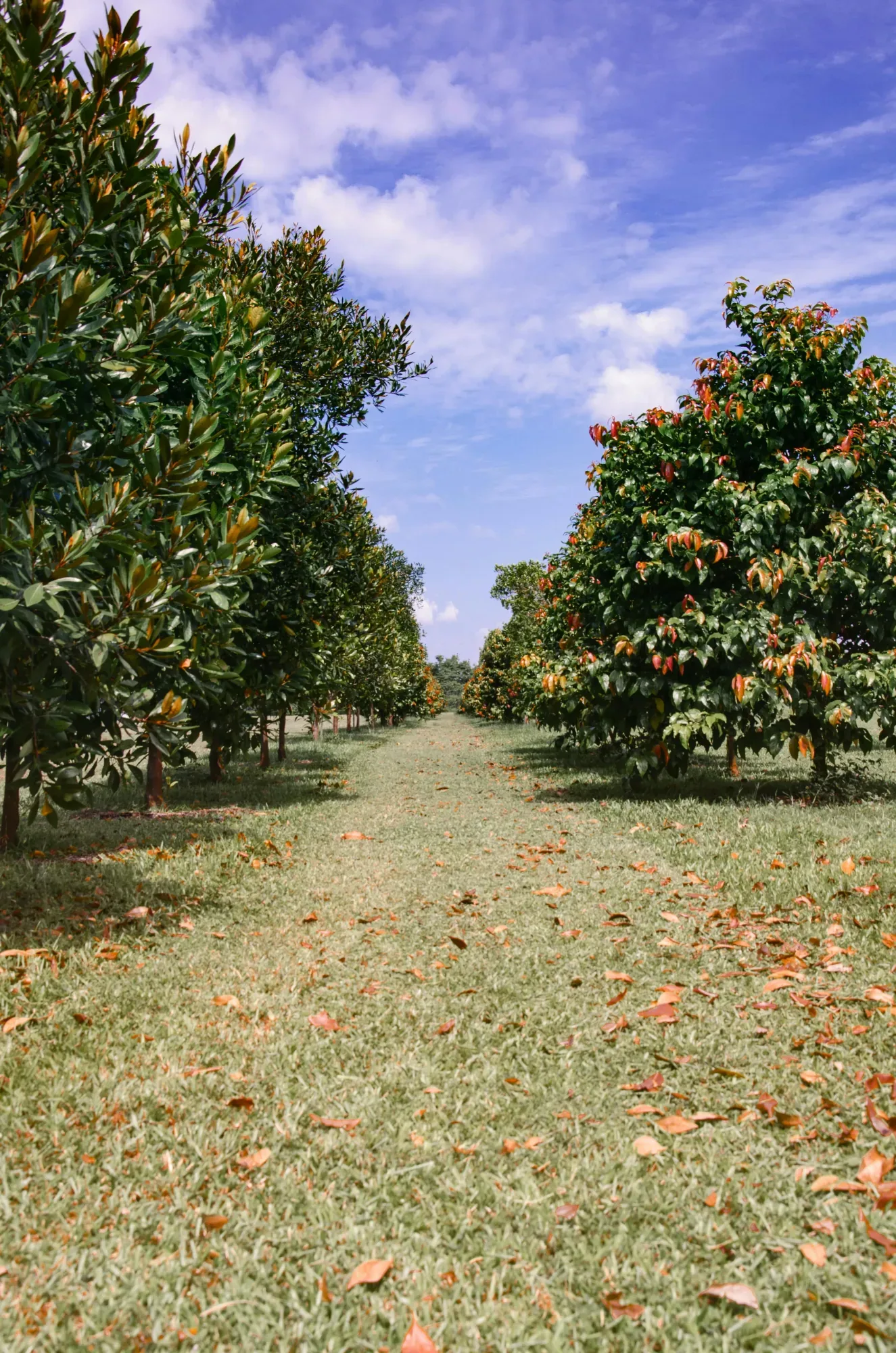

Where Rough Ranger Works Best
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Mowing Capacity
- 72-hour max mowing area (fast charging mode)
- 108,000 ㎡
- 72-hour max mowing area (standard charging mode)
- 93,600 ㎡
- Max mowing area per charge
- 12,000 ㎡
- Max climbing ability
- 20°
- Recommended working slope
- 15°
- Travel speed
- 0–6 km/h (0–3.7 mph)
Complete Unit
- Weight
- 170 kg
- Dimensions
- 1345 × 855 × 970 mm (53 × 34 × 38 in.)
- IP rating
- IPX4
- Operating temperature
- 0–45℃
Cutting System
- Cutting height
- 20–120 mm (0.8–4.72 in.)
- Cutting width
- 635 mm
Battery & Charging
- Battery capacity
- 4 kWh
- Max working time
- 5 h
- Charging time (standard)
- 5 h
- Charging time (fast charging)
- 3 h
- Battery rated voltage
- 48 V DC
See the Rough Ranger on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
