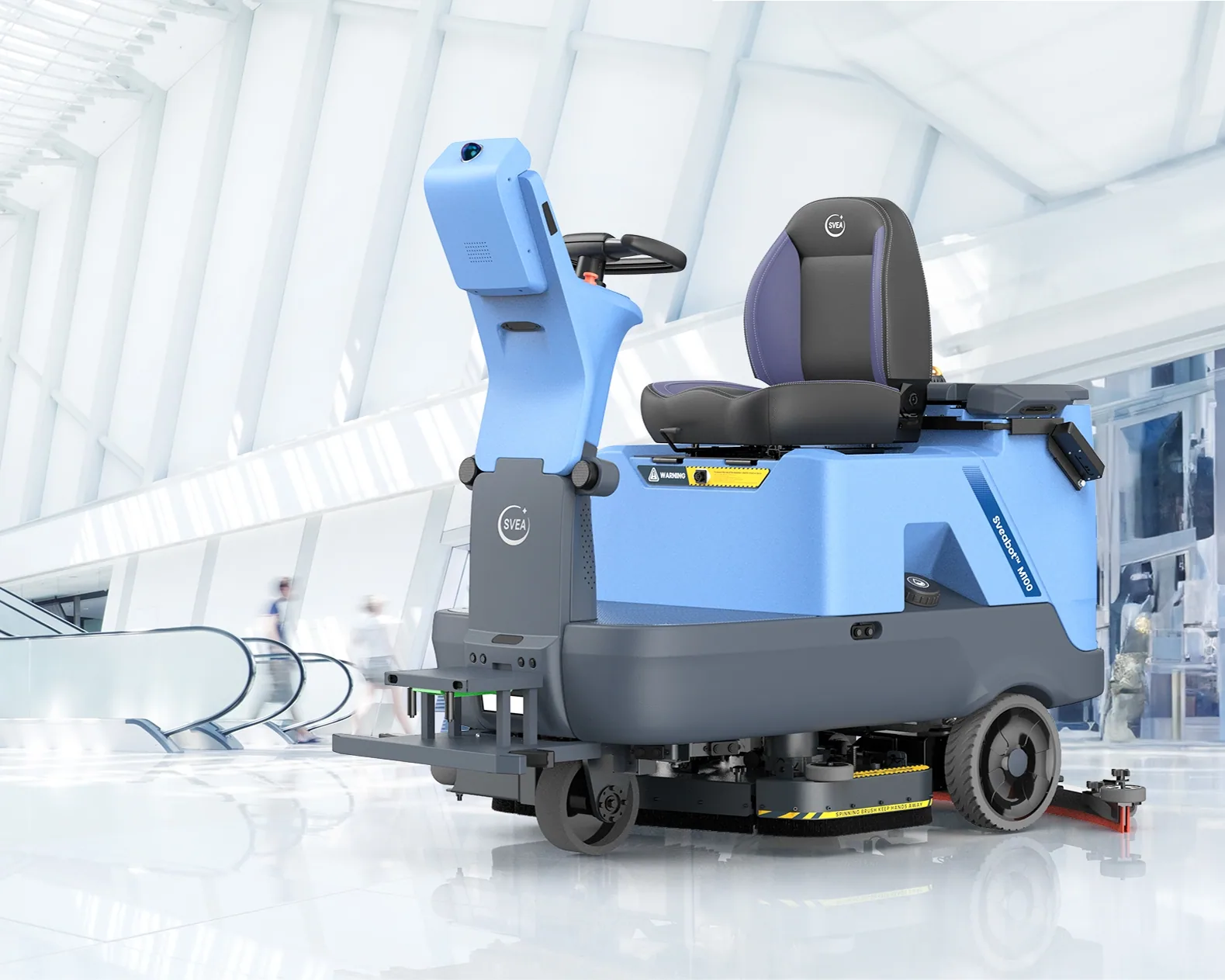

Sveabot M100E

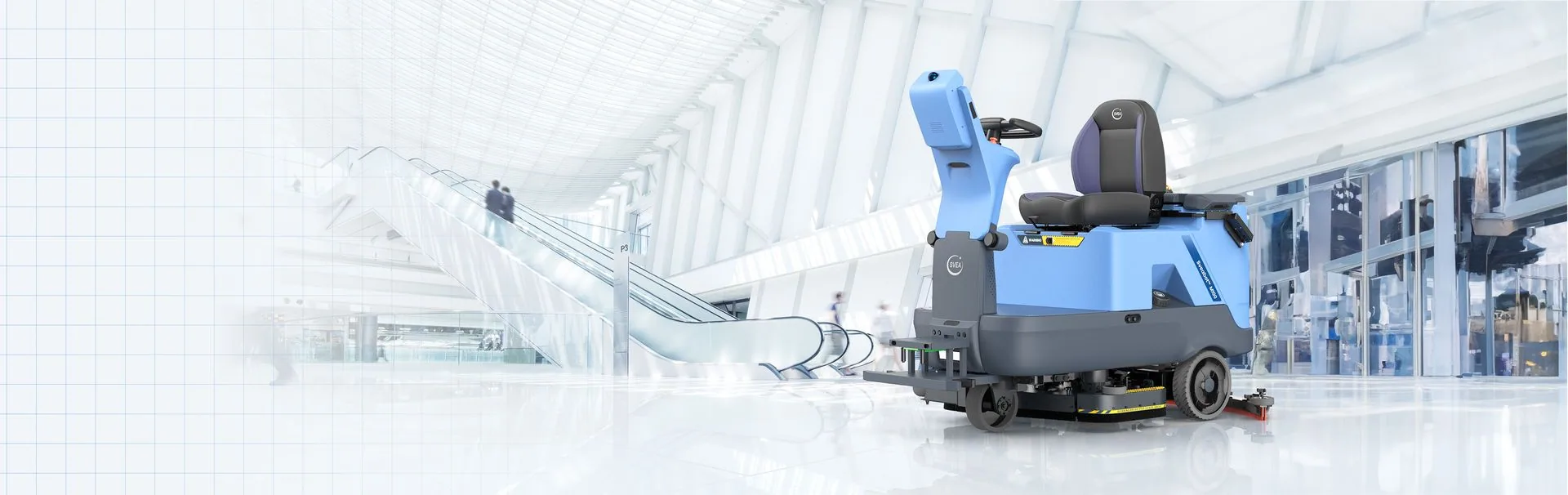

The smarter way to clean your floors.
Versatile, Do-it-All Autonomous Scrubber
Sveabot M100E
Advanced Obstacle Detection

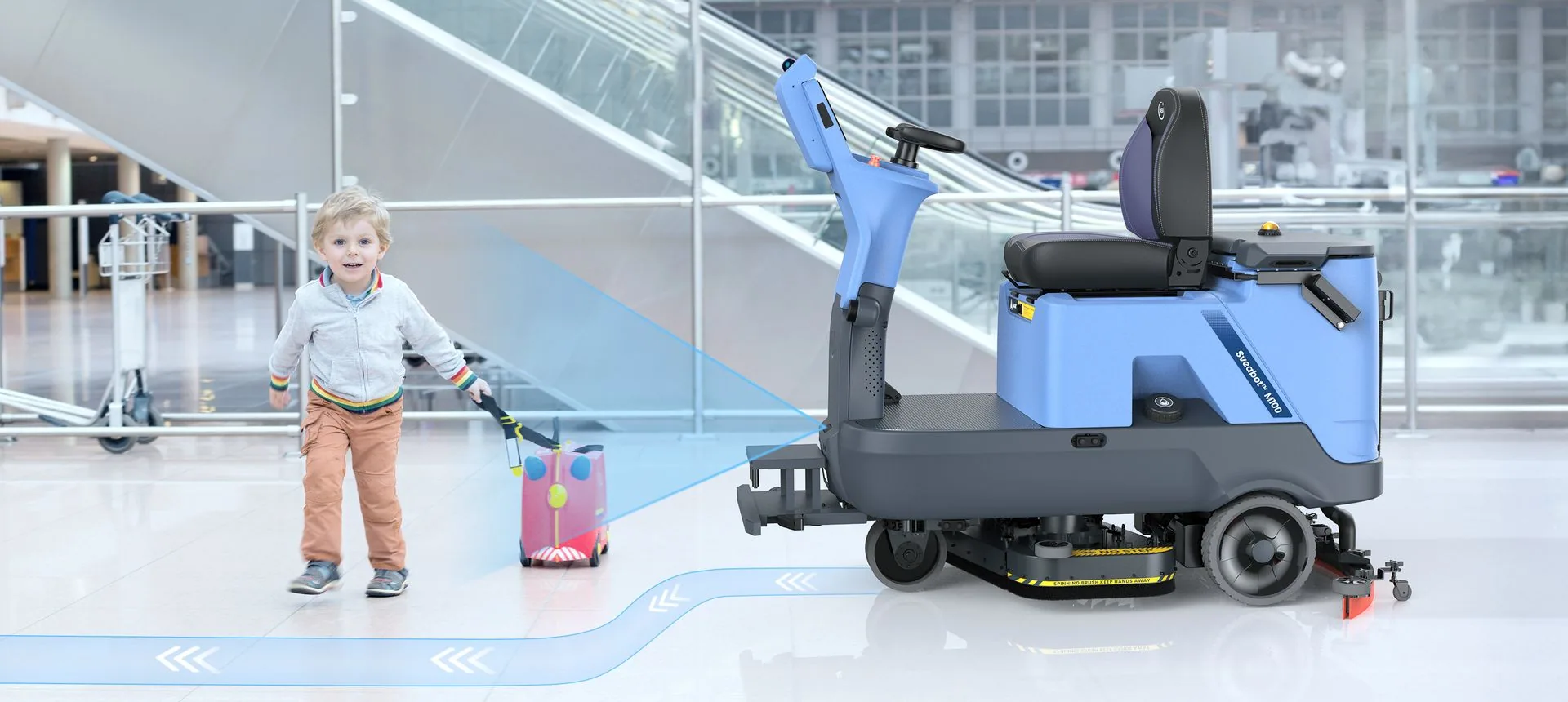

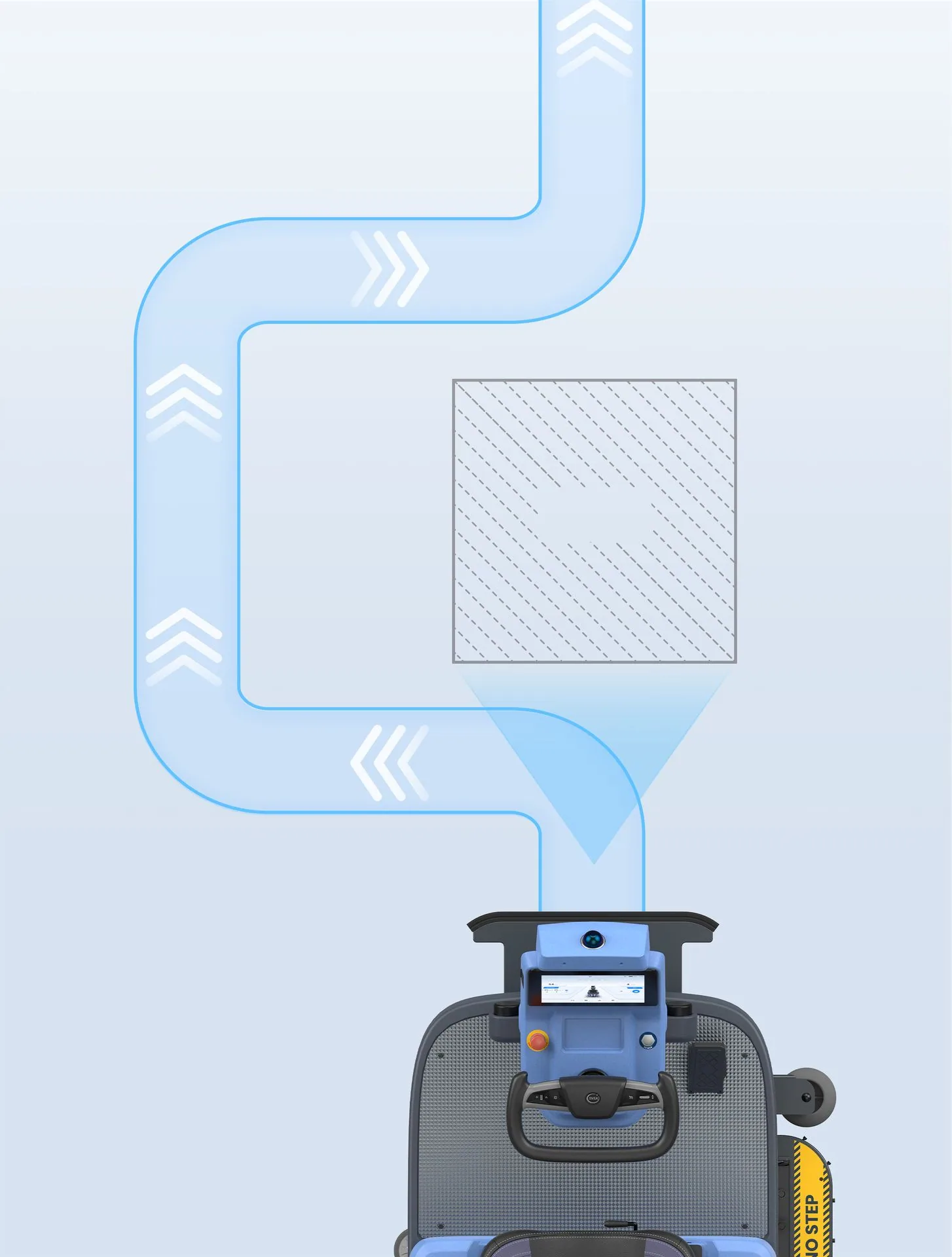

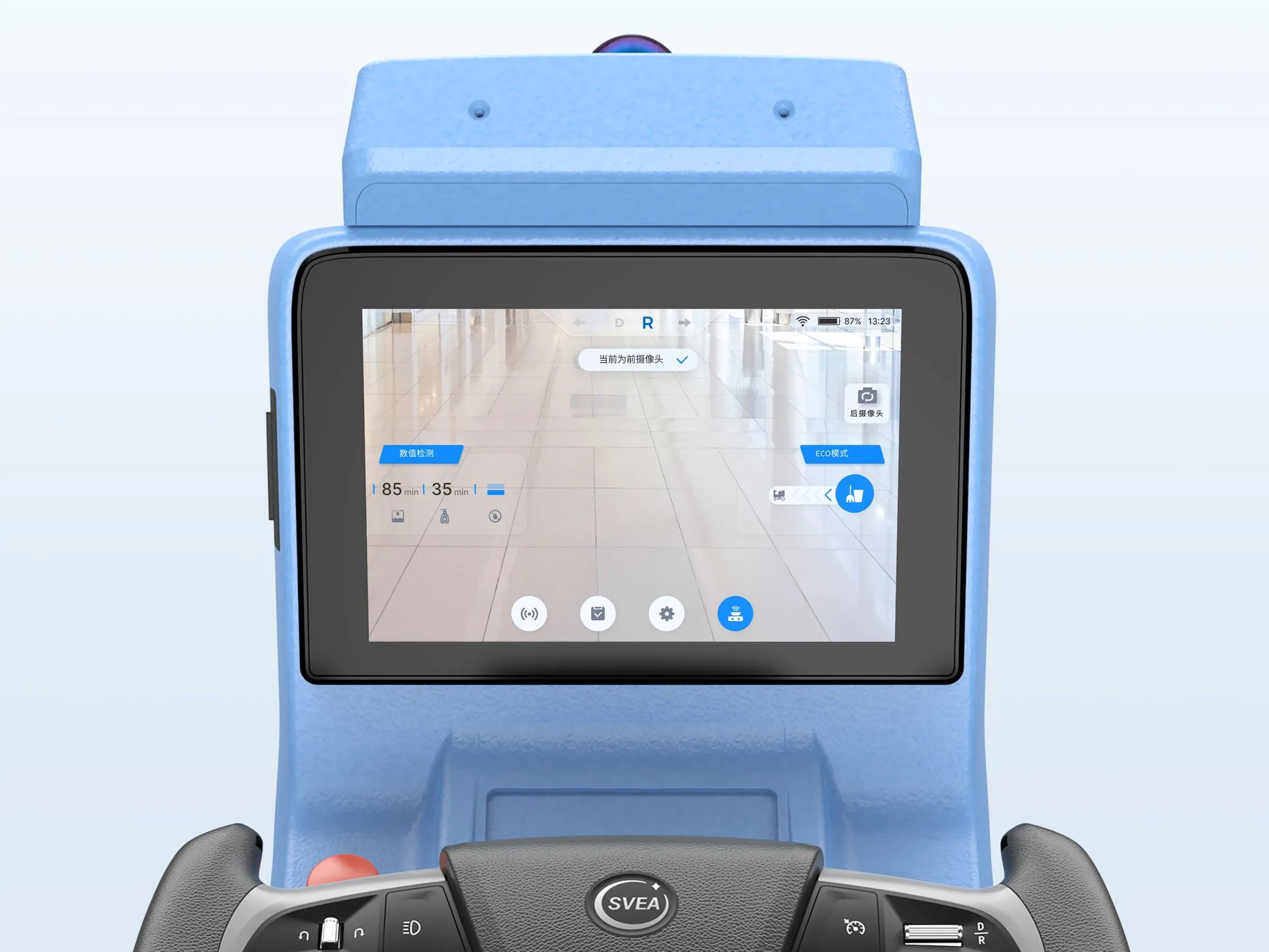

Advanced Navigation & Obstacle Detection - Set it and forget it.

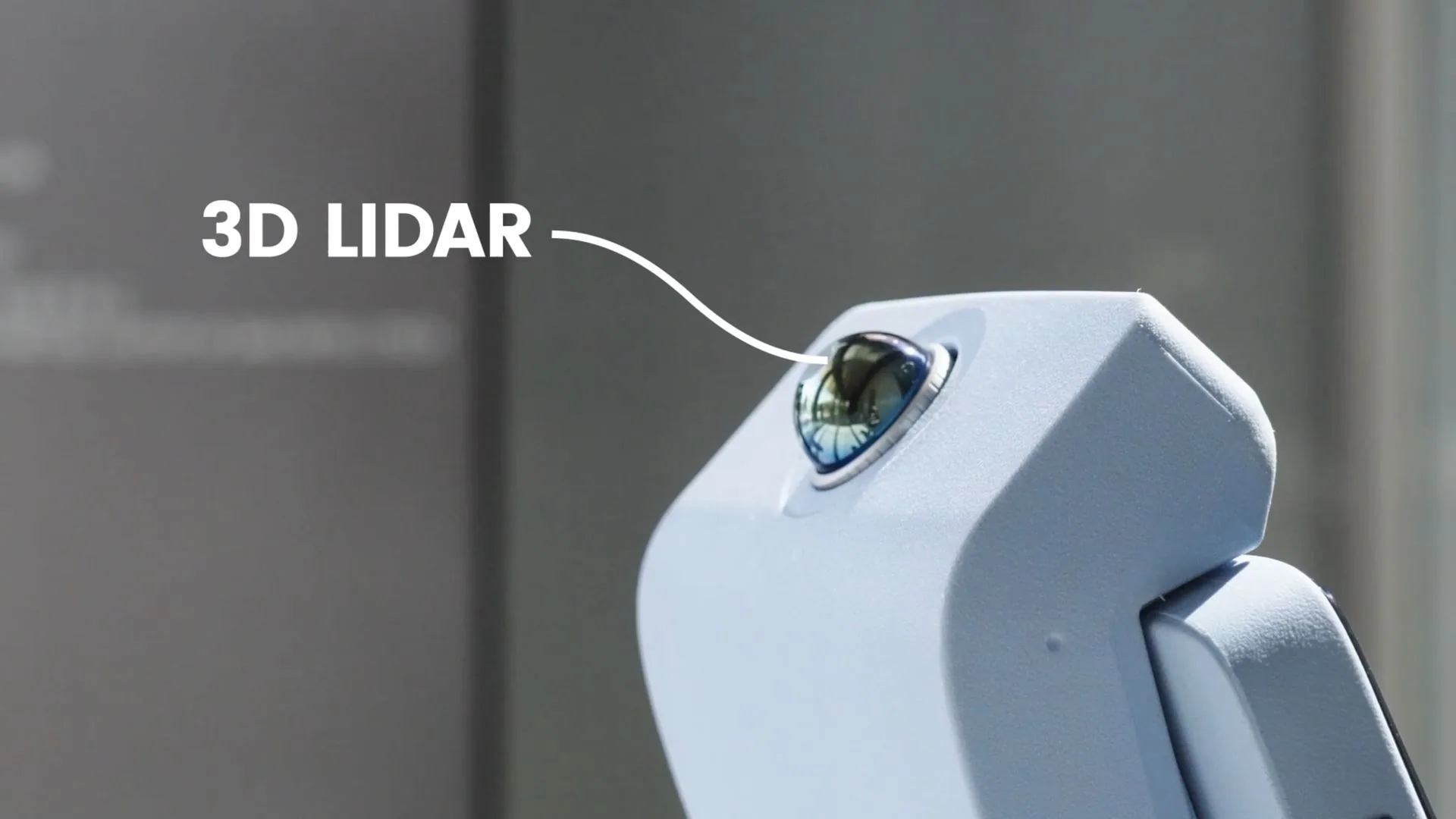

M100E's Autopilot Mode is your secret weapon for hands-free cleaning. Equipped with advanced 3D LiDAR technology, the M100E generates precise 3D point cloud maps of your facility. This advanced system provides comprehensive coverage, capturing both ground and ceiling features to enhance positioning and ensure superior accuracy.

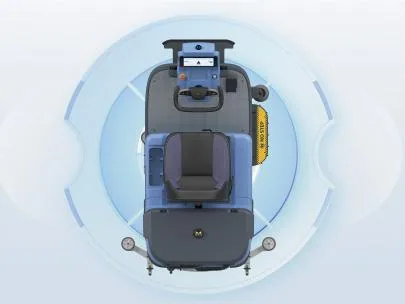

- And that’s not all — the M100E takes navigation to the next level with a powerhouse combination of 4 depth cameras , ultrasonic sensors and 2D LiDAR , which work in harmony with the 3D LiDAR sensor. Together, they create an all-encompassing view of your space, ensuring no detail escapes detection.
- The result? Effortless cleaning that saves you time and labor costs, while delivering exceptional results. You can focus on other tasks while the M100E takes care of the cleaning.
- The M100E senses where cliffs or edges lie in your floor plan, and has full safety functions enabled right from the first clean, with anti wheel lock, speed limits, and an emergency stop. All with immediate in-app alerts!
Automatic Charging Station: Always Ready to Go
With intelligent self-docking technology, the robot automatically returns to recharge when needed, and gets right back to work — all without lifting a finger.
Consistent Clean, Every Time
The M100E remembers your cleaning paths, ensuring a consistent and thorough clean every time you use it.

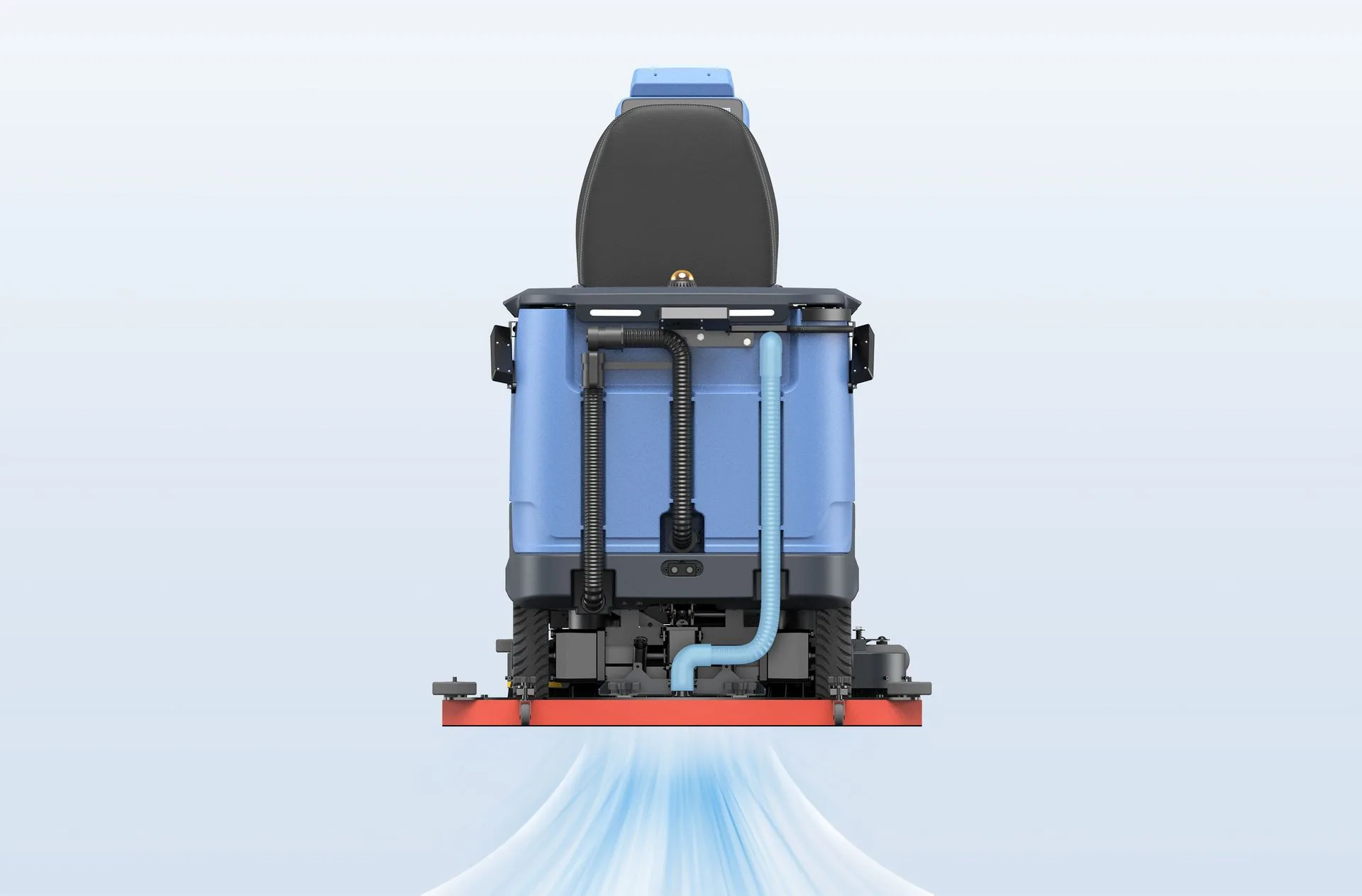

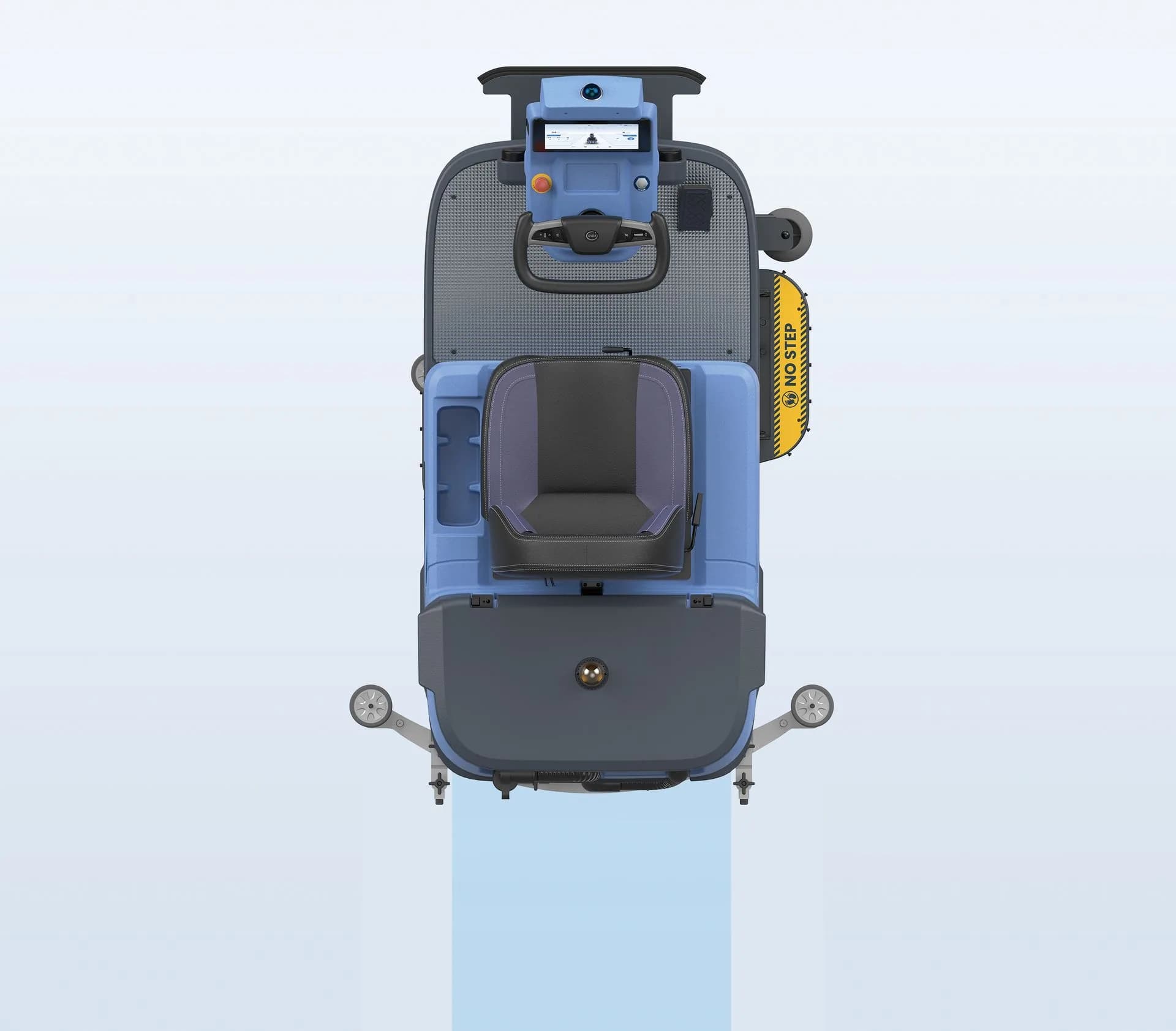

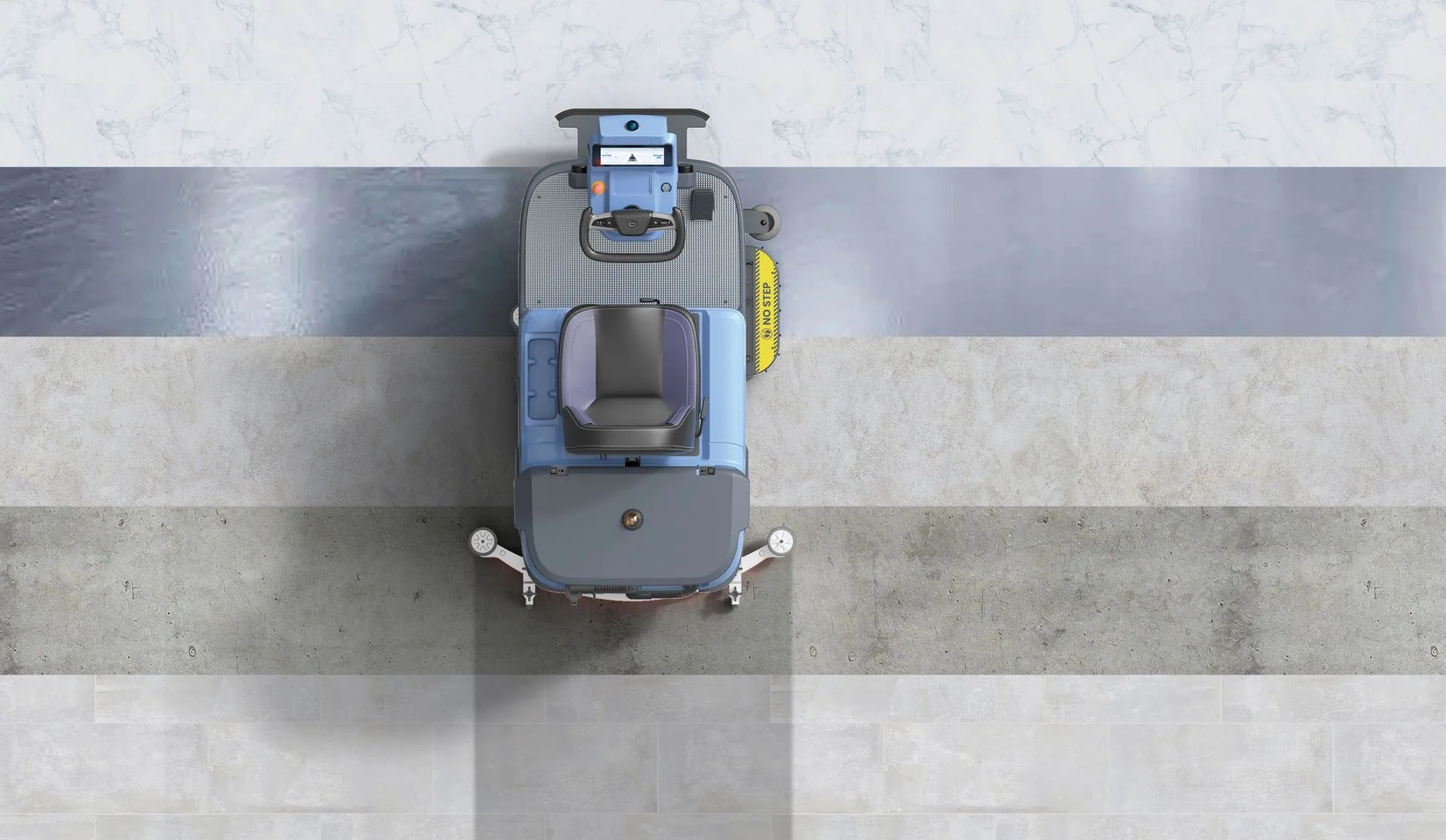

Unrivaled Cleaning Performance

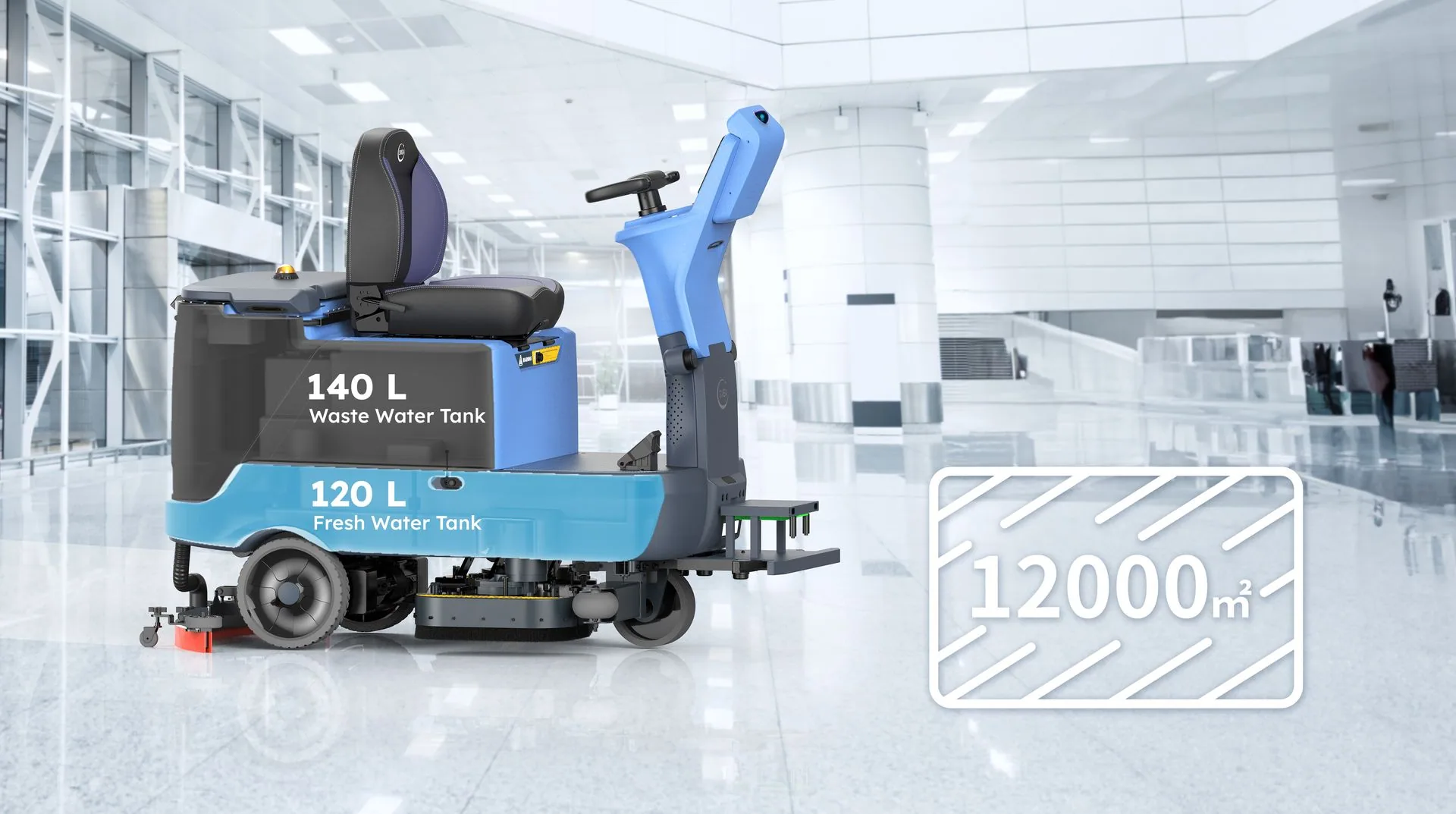

The M100E delivers unmatched efficiency, cleaning up to 12,000 m² on a single water refill , making it perfect for large-scale cleaning tasks.

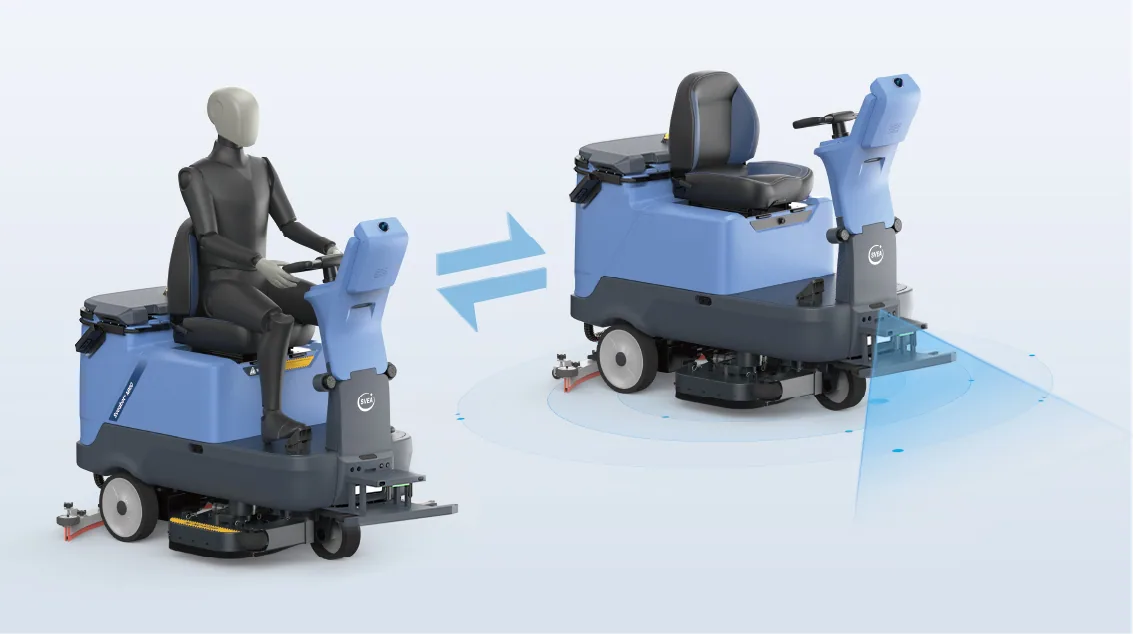

- Easy switching between ride-on and autonomous cleaning modes.

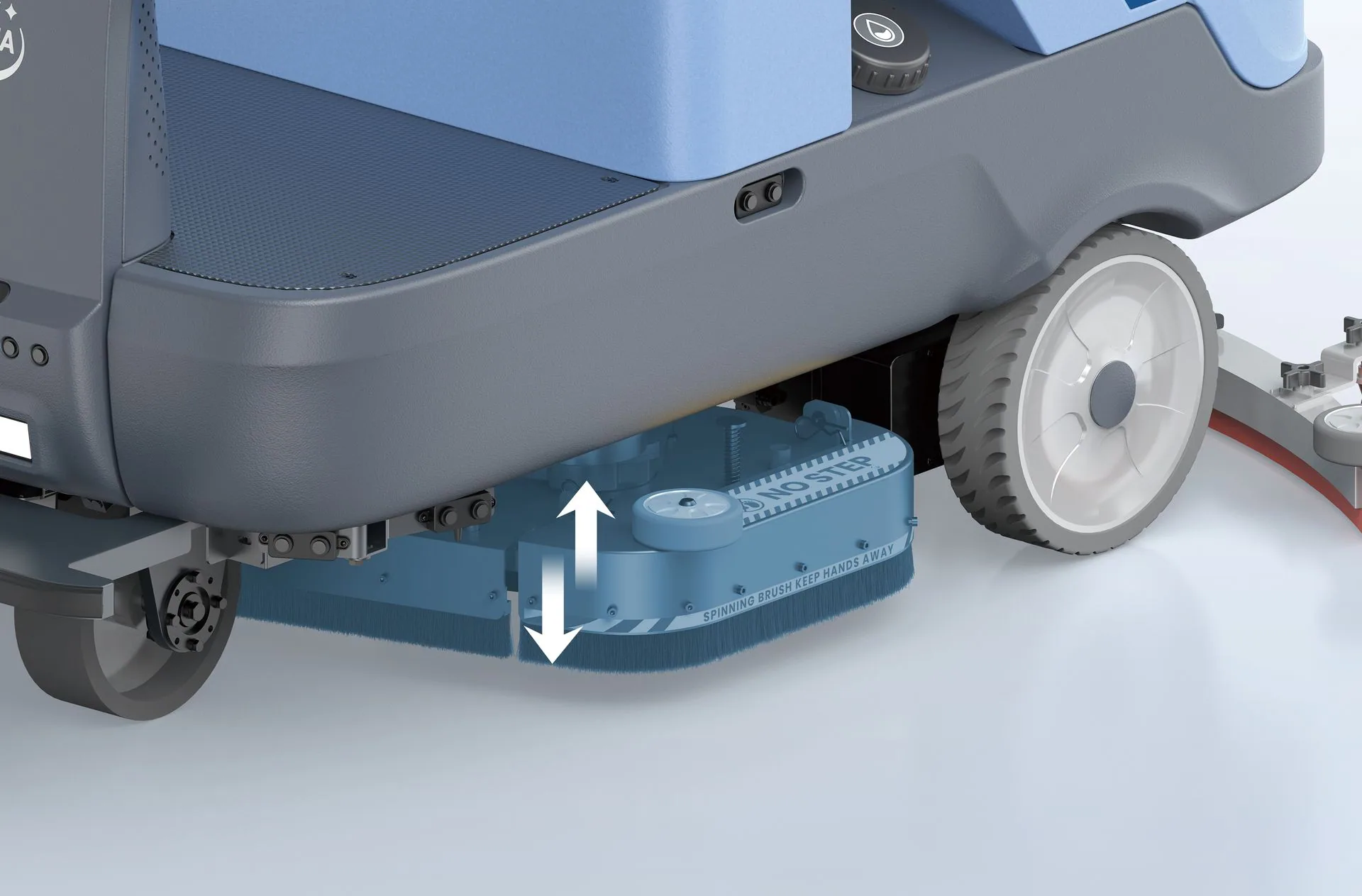

- Adjust cleaning strength for different floor types and dirt levels.

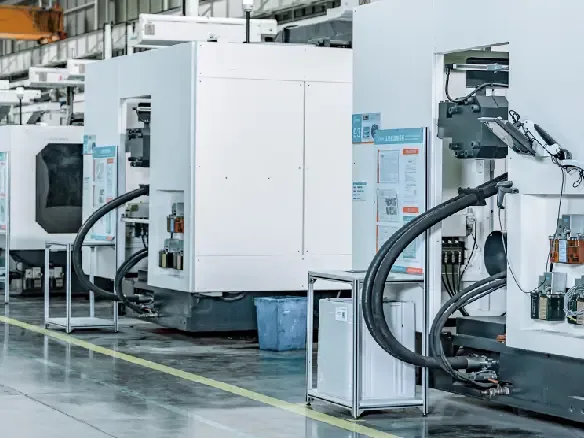

Perfect for Large, Complex Spaces

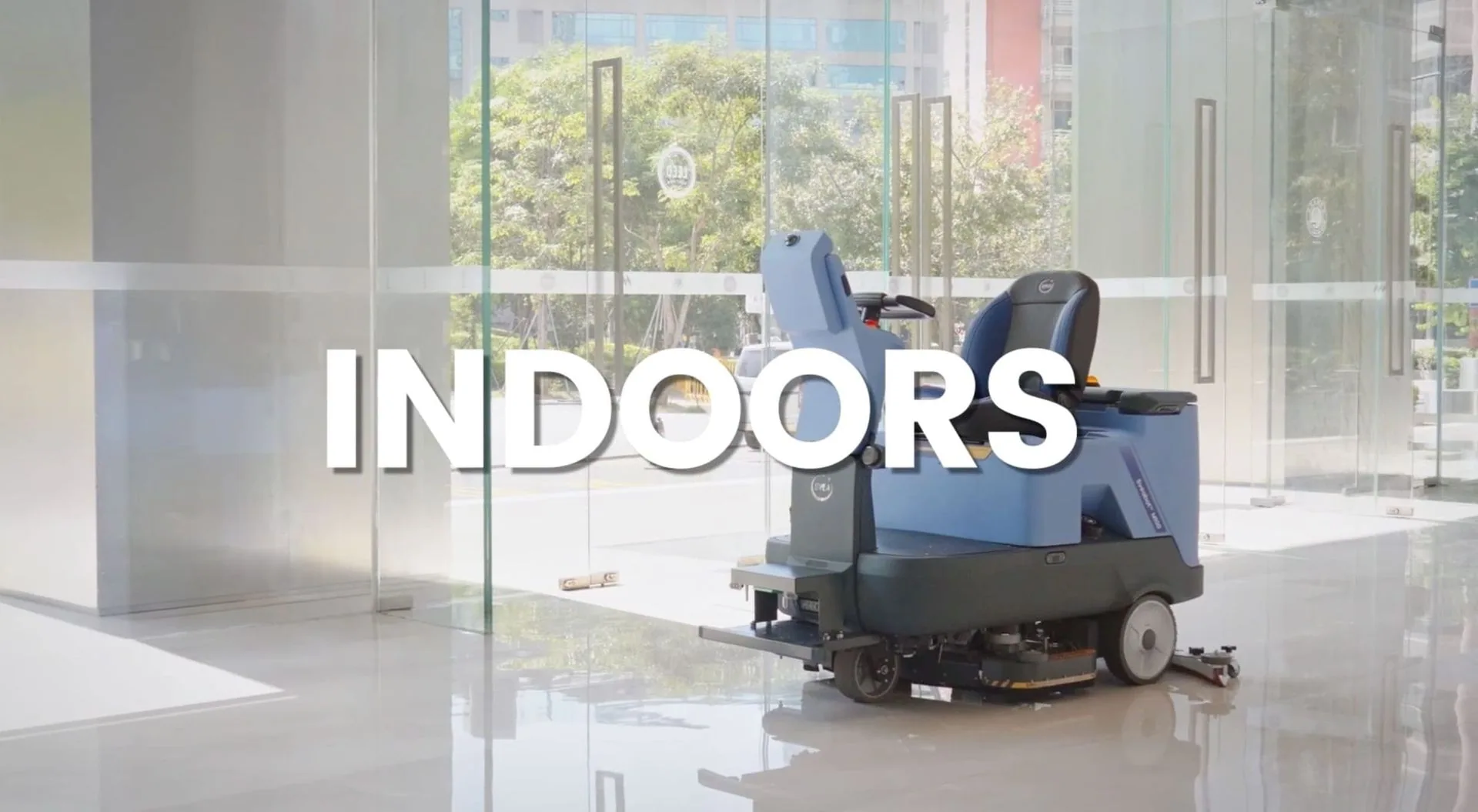

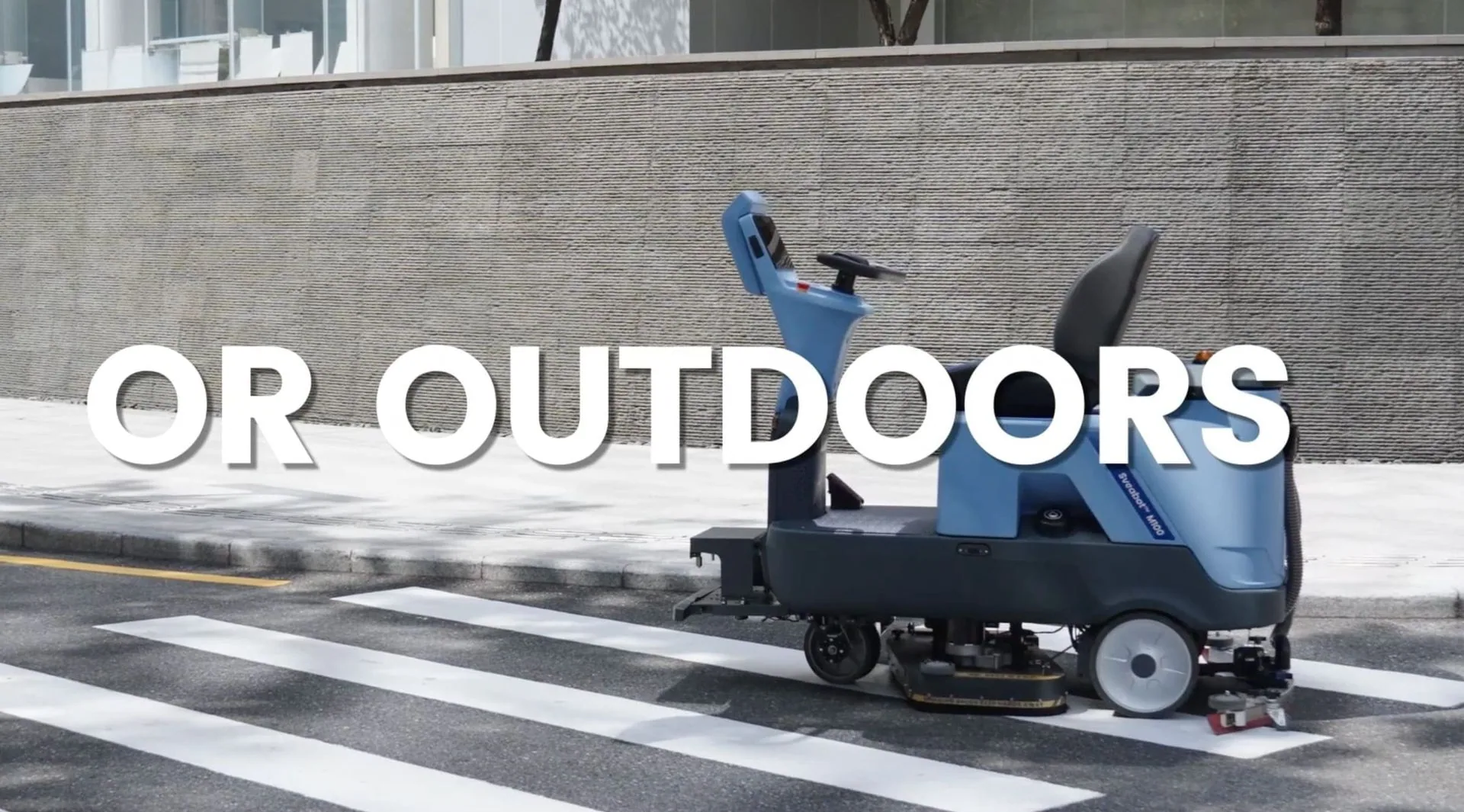

Built for versatility, it excels both indoors and outdoors, delivering exceptional performance in even the most challenging spaces.
- Whether it’s vast shopping malls or intricate factory layouts, the M100E is designed to masterfully handle large and demanding environments. With intelligent navigation, it effortlessly weaves around large moving obstacles, maintaining efficiency and consistency.
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Structural Specs
- Size (L x W x H)
- 1715 × 1120 × 1475 mm
- Max Slope
- 65% or 33°
- Net Weight
- 318 kg
- IP Rating
- IPX3
- Driving Mode
- Two rear-wheel drive
- Noise Level
- ＜75 dBA
- Maximum Speed
- 6.5 km/h
- Full Load Gradeability
- 15° (26%)
- Minimum Turning Radius
- 1211 mm
- Operating Temperature
- 0℃ - 45℃
- Operating Humidity
- ≤95%
Navigation & Safety
- 3D LiDAR
- ✓
- 2D LiDAR
- ✓
- Ultrasonic Sensors
- ✓
- Depth Camera
- ✓
- Infrared Sensor
- ✓
- Collision Detection Safety Edge
- ✓
- Anti-falling Cliff Detection
- ✓
- Emergency Stop Switch
- ✓
Cleaning Specs

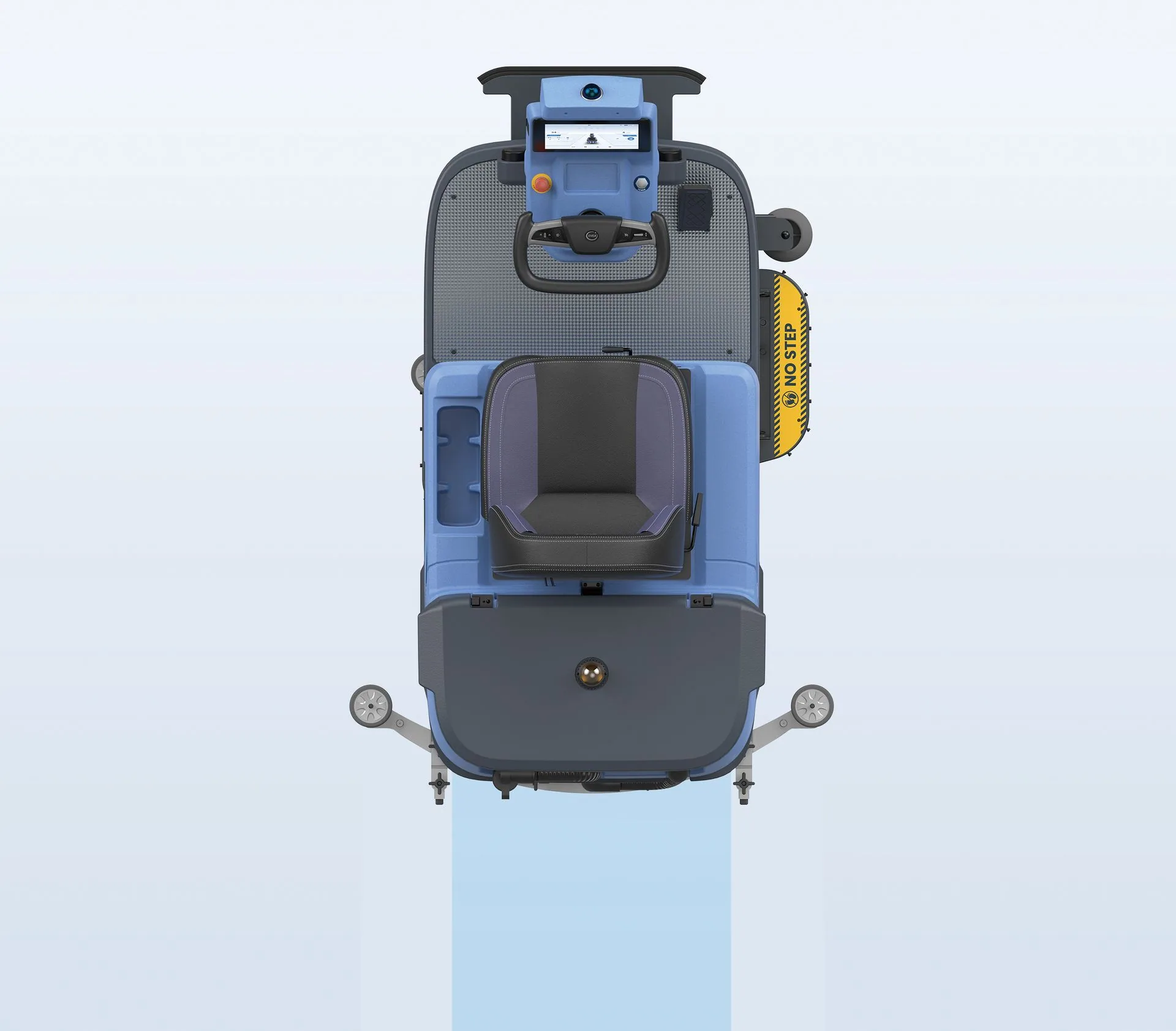

- Cleaning Width
- 860 mm
- Cleaning Speed
- 1238 ㎡/h (auto mode) 5590 m²/h (manual mode)
- Fresh Water Tank
- 120 L
- Waste Water Tank
- 140 L
- Detergent Tank
- 5 L
- Real-time Water Level Monitoring
- ✓
- Zero Turn
- ✓

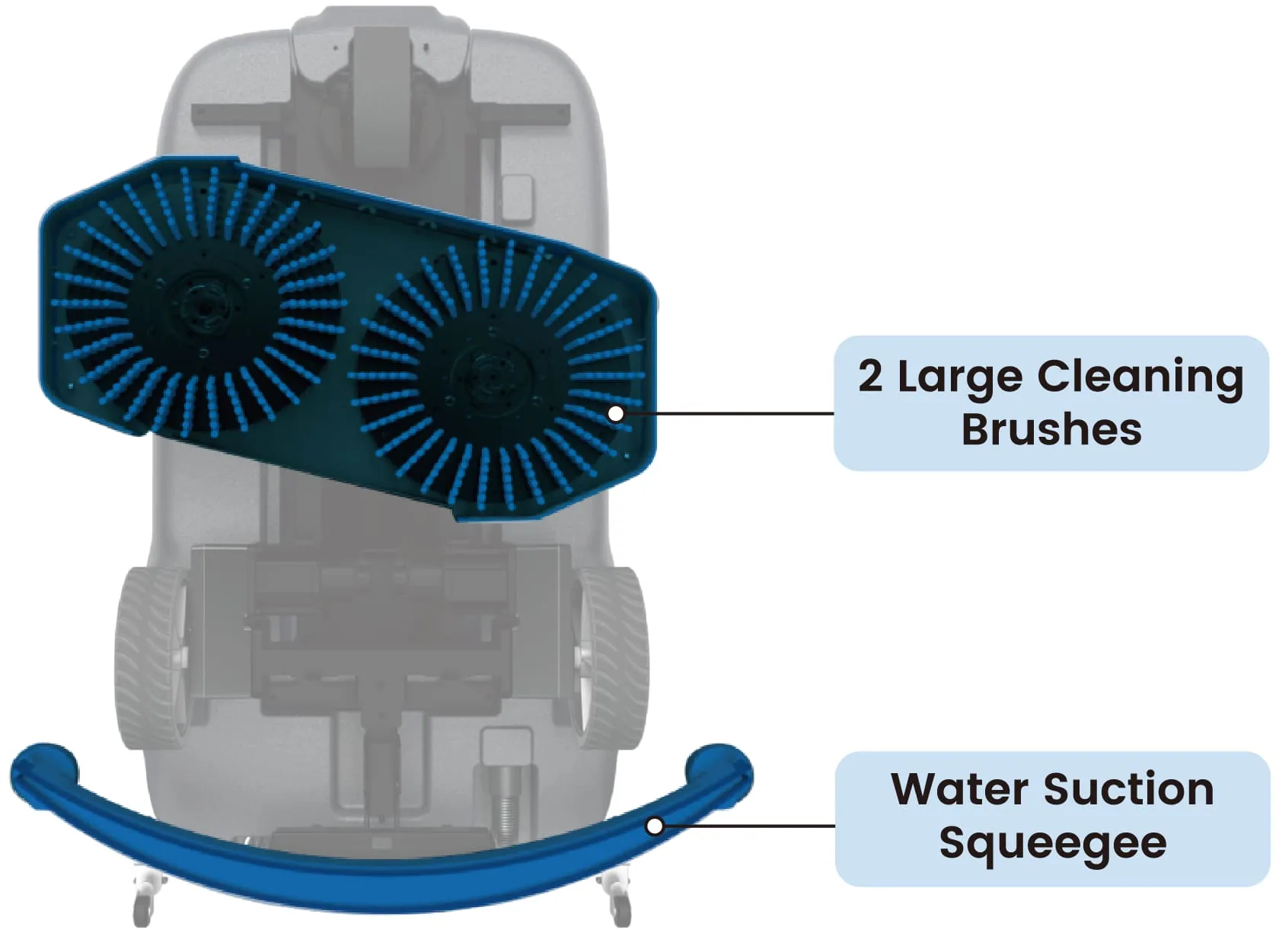

Disk Brush Specs
- Type
- Double disk brushes
- Brush Speed
- 200 rpm
- Down Pressure
- 30/40/50 kg
- Brush Diameter
- 406 mm
Battery Specs
- Battery Type
- Lithium-ion
- Charging Time
- 4.5 hrs
- Battery Life
- 3.5 hrs
- Automatic Recharge
- ✓
- Battery Capacity
- 4032 Wh
- Voltage
- 37.8 V - 58.8 V
Connectivity
- 4G
- ✓
- Wireless Connectivity
- ✓
- IoT
- ✓
- OTA
- ✓
- Remote Control
- ✓
See the Sveabot M100E on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
