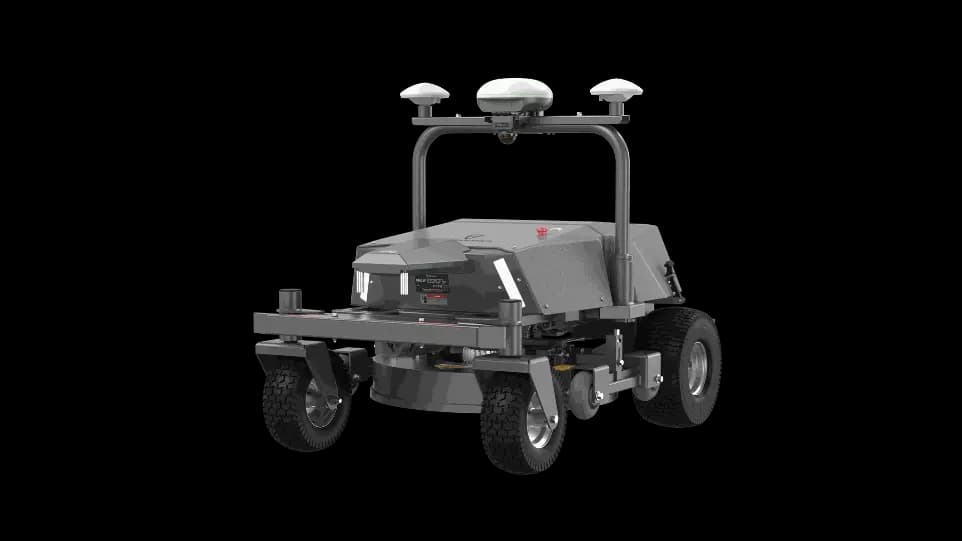

Rough Ranger Accessory

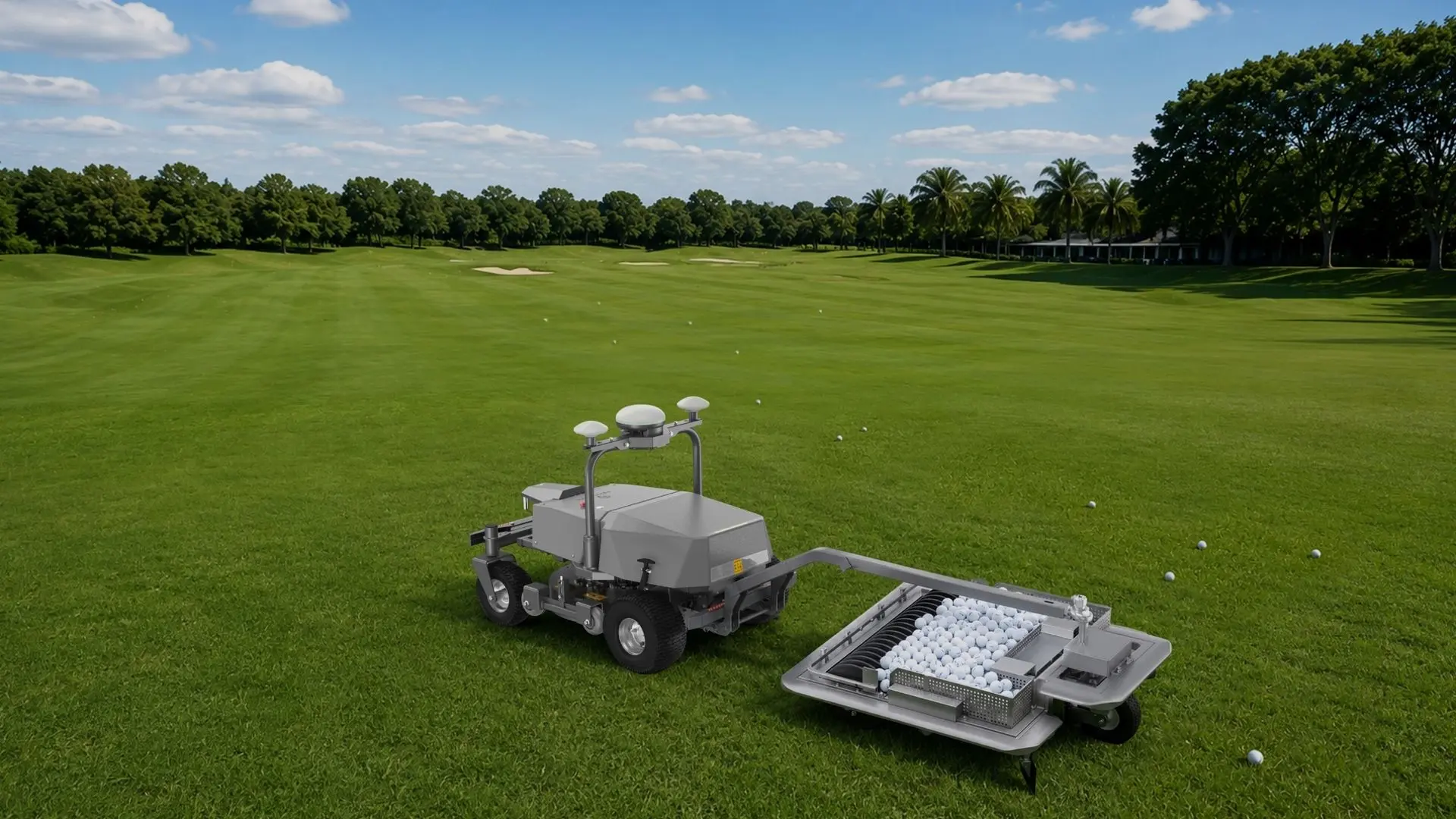

BP02 Ball Picker Kit
Smart Automation for Effortless Ball Collection.
Always on. Always picking.
BP02 turns Rough Ranger into an autonomous golf ball collection robot for driving ranges. It picks up balls, and returns for unloading, helping range teams reduce repetitive manual collection work during high-volume daily operations.
What it does

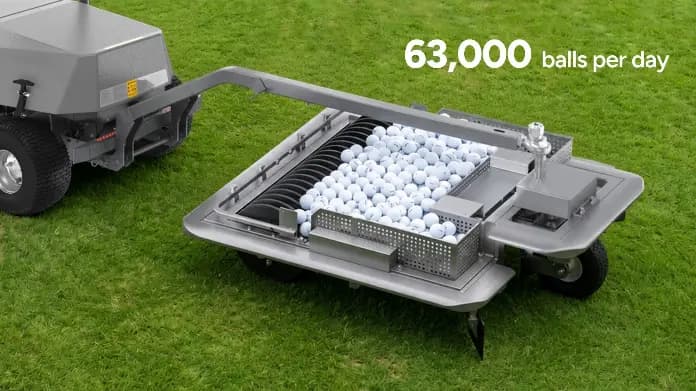

Full-Basket Detection & Auto Return
Collects up to 63,000 balls per day for high-volume driving range operations and automatically returns to the unloading area when the basket is full.

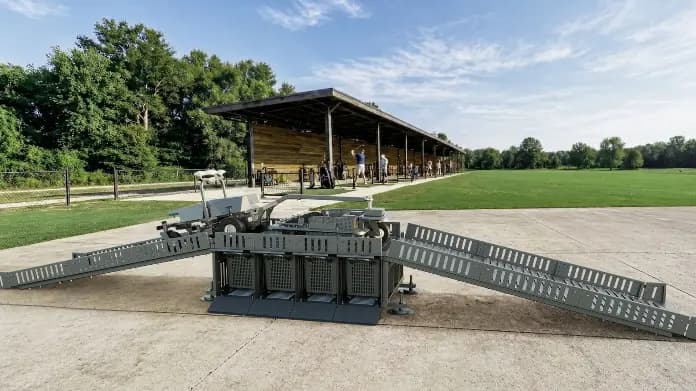

Automatic Station Unloading
Collected balls are unloaded at the station to reduce manual handling and keep range operations moving.

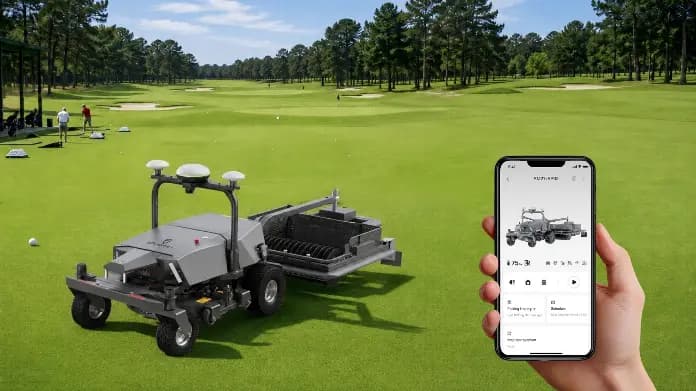

Manage Ball Collection in the App
Control the machine, set ball-picking tasks, and monitor live or historical operation data from the app.
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Operating Performance
- Picking width
- 900 mm.
- Max picking capacity per hour
- 3,000 golf balls
- Max daily picking capacity
- Up to 63,000 balls (based on 21 operating hours)
- Max picking time per charge
- 12 h
- Max picking capacity per charge
- 36,000 balls
- Basket count
- 1
- Capacity per basket
- 1,000 golf balls
Complete Unit
- Weight
- 120 kg
- Dimensions
- 1860 × 1275 × 610 mm / 73.2 × 50.2 × 24 in.
- IP rating
- IPX4
- Operating temperature
- 0–45°C
Fits your machine
Built for this platform's own attachment mount and workflow.
See the BP02 Ball Picker Kit on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
