Less input, greater output
Reduce Paint Usage by 50%+
For a full-size soccer field, manual line marking requires about 8L, while the robotic line marker only needs around 4L.
Cut Labor Costs by up to 90%
Create the layout, start with one click, no human intervention required, saving up to 90% in labor costs.
Mark up to 20 Full-Size Fields per Charge
A single full charge allows for continuous spraying of 20 full-size soccer fields.
What it does

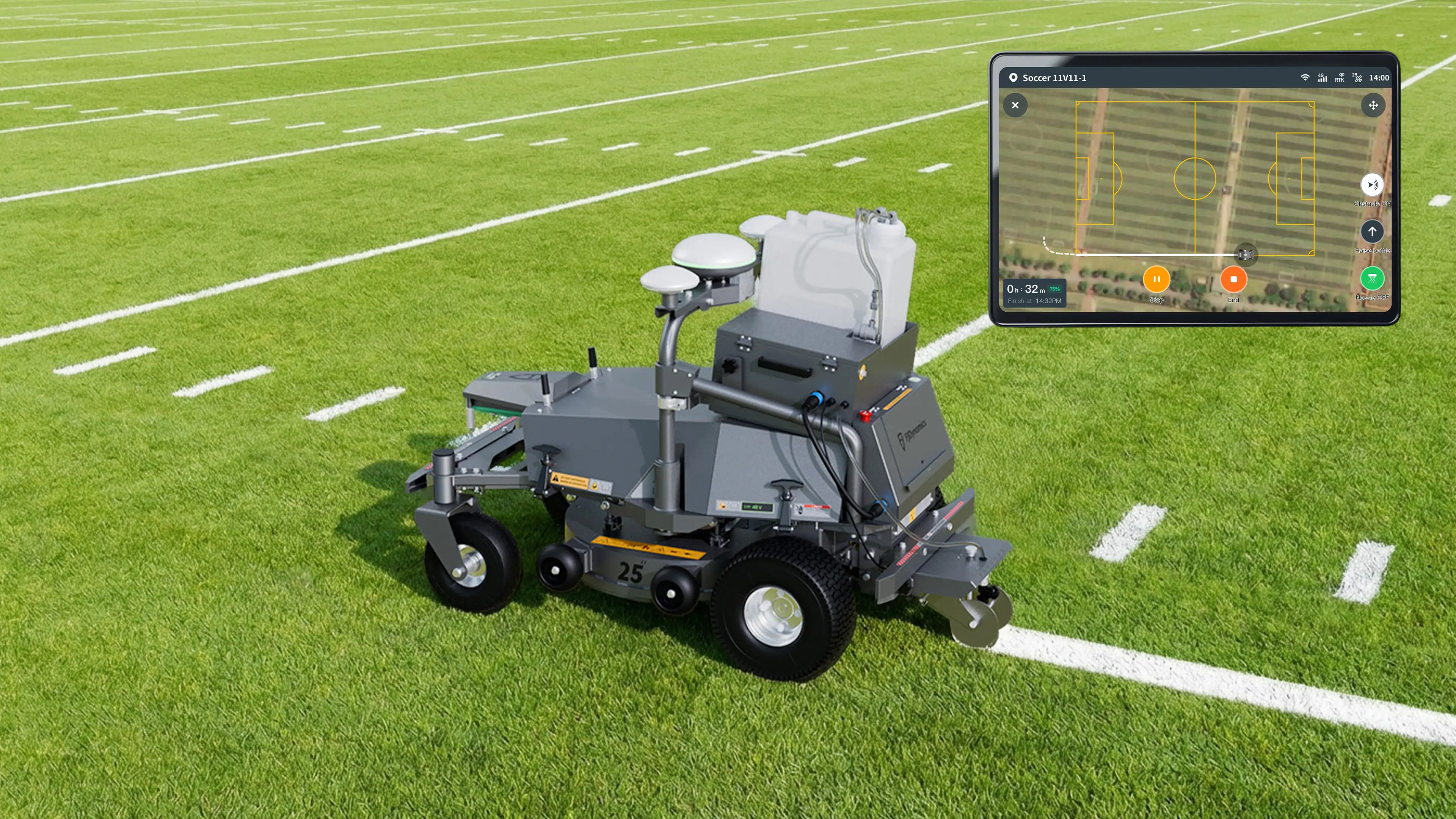

One-Tap Autonomous Operation
For daily marking tasks, simply start the entire workflow with one tap — no manual intervention required.

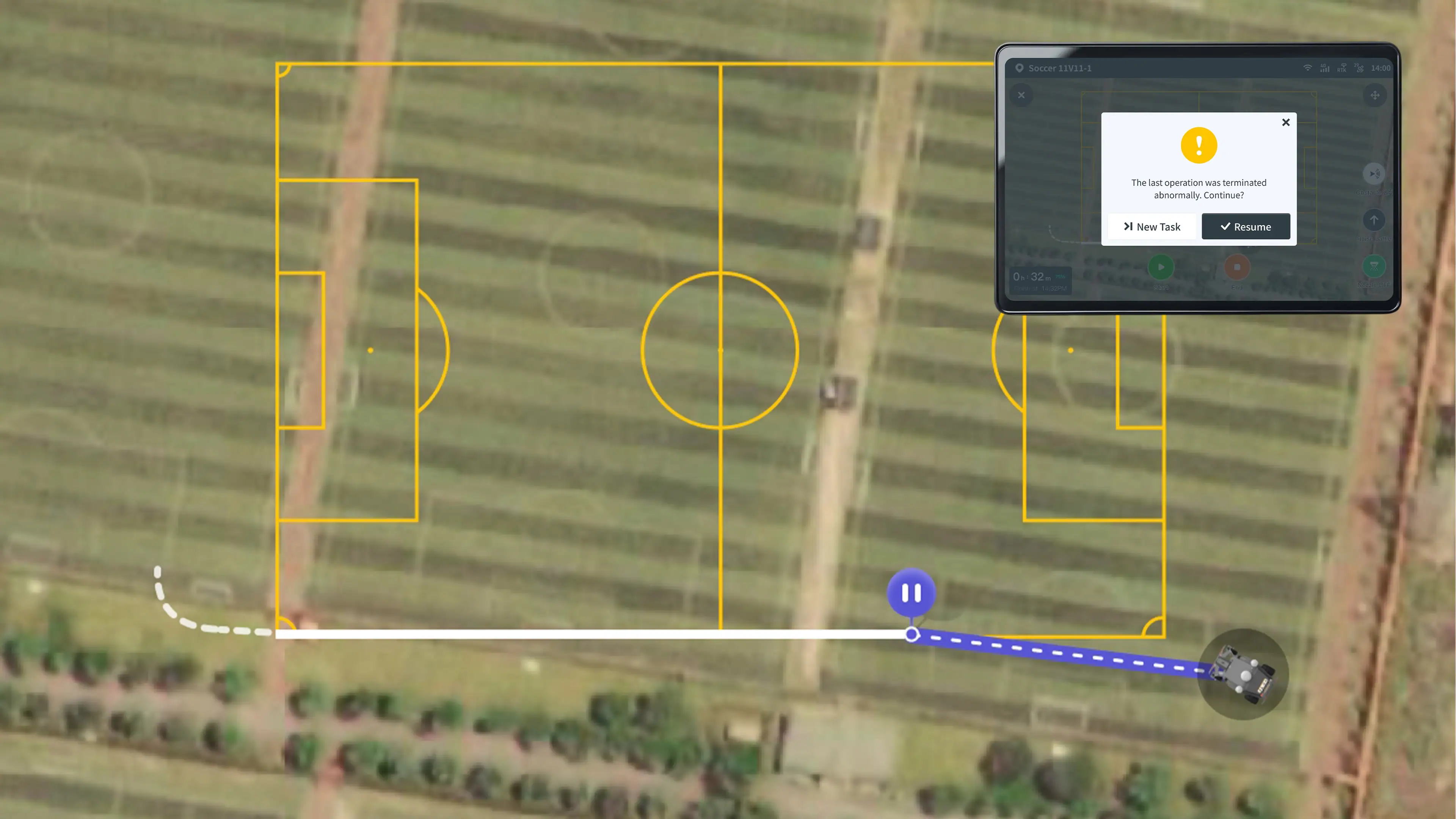

Seamless Spray Resume
Whether switching fields or pausing to refill paint, the robot resumes precisely where it left off — no overlapping, no wasted paint.

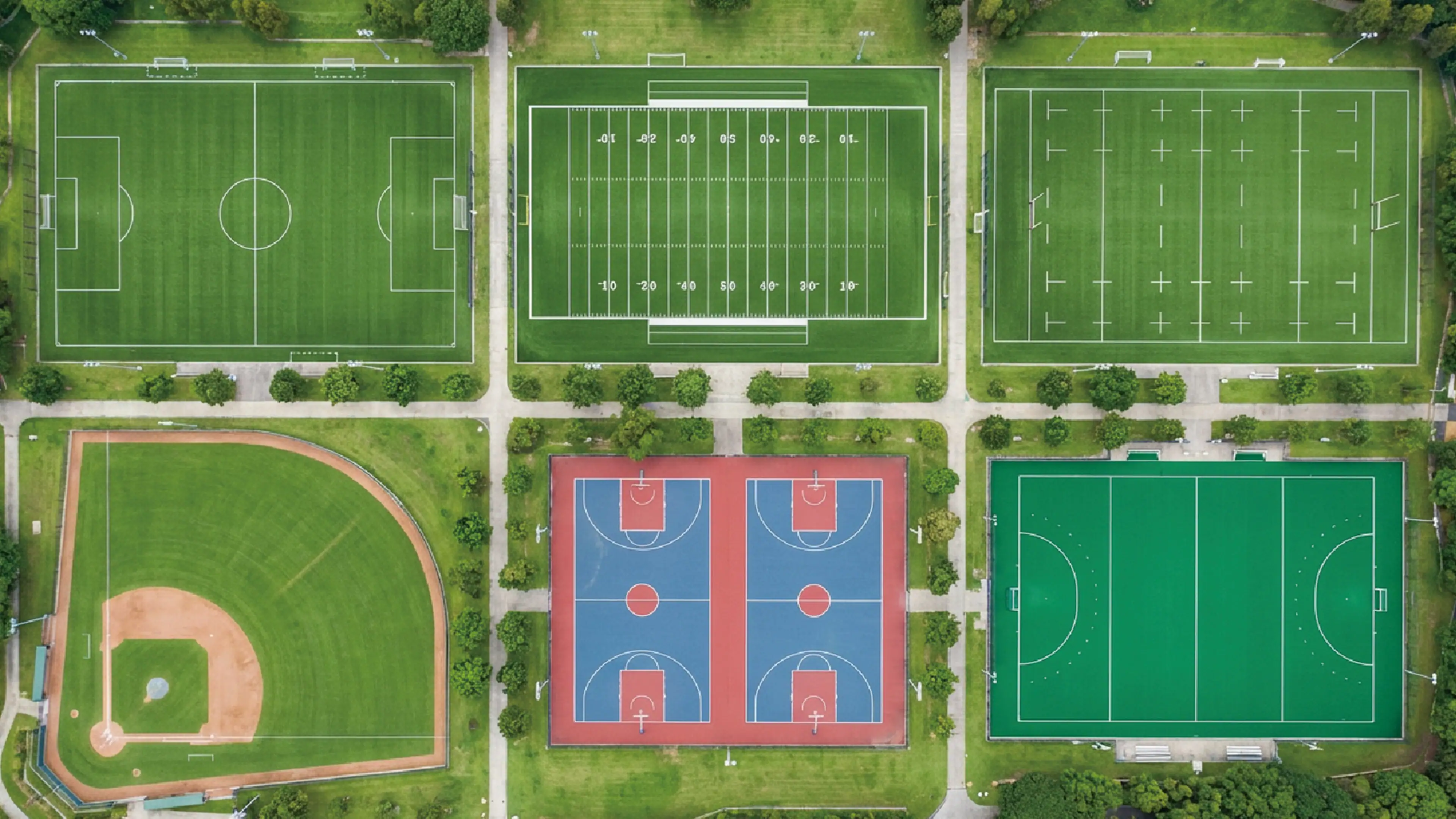

Customized Pattern for Every Field
Support multiple patterns for football, rugby, baseball, and more to suit your fields.
Application scenarios
Specifications
Manufacturer figures from FJDynamics, shown in metric.
Complete Unit
- Weight (without paint)
- 68 kg
- Dimensions
- 1515 × 853 × 1051 mm / 59.6 × 33.6 × 41.4 in.
- IP rating
- IPX4
- Operating temperature
- 5–35°C
Marking Performance
- Max marking speed
- 3 km/h
- Line width range
- 50–170 mm / 2–6.7 in.
- Nozzle height
- 30–80 mm / 1.2–3.1 in.
Paint System
- Paint tank capacity
- 25 L
Battery & Charging
- Max marking time per charge
- 20 h
Electrical System
- Rated power
- 150 W
Fits your machine
Built for this platform's own attachment mount and workflow.

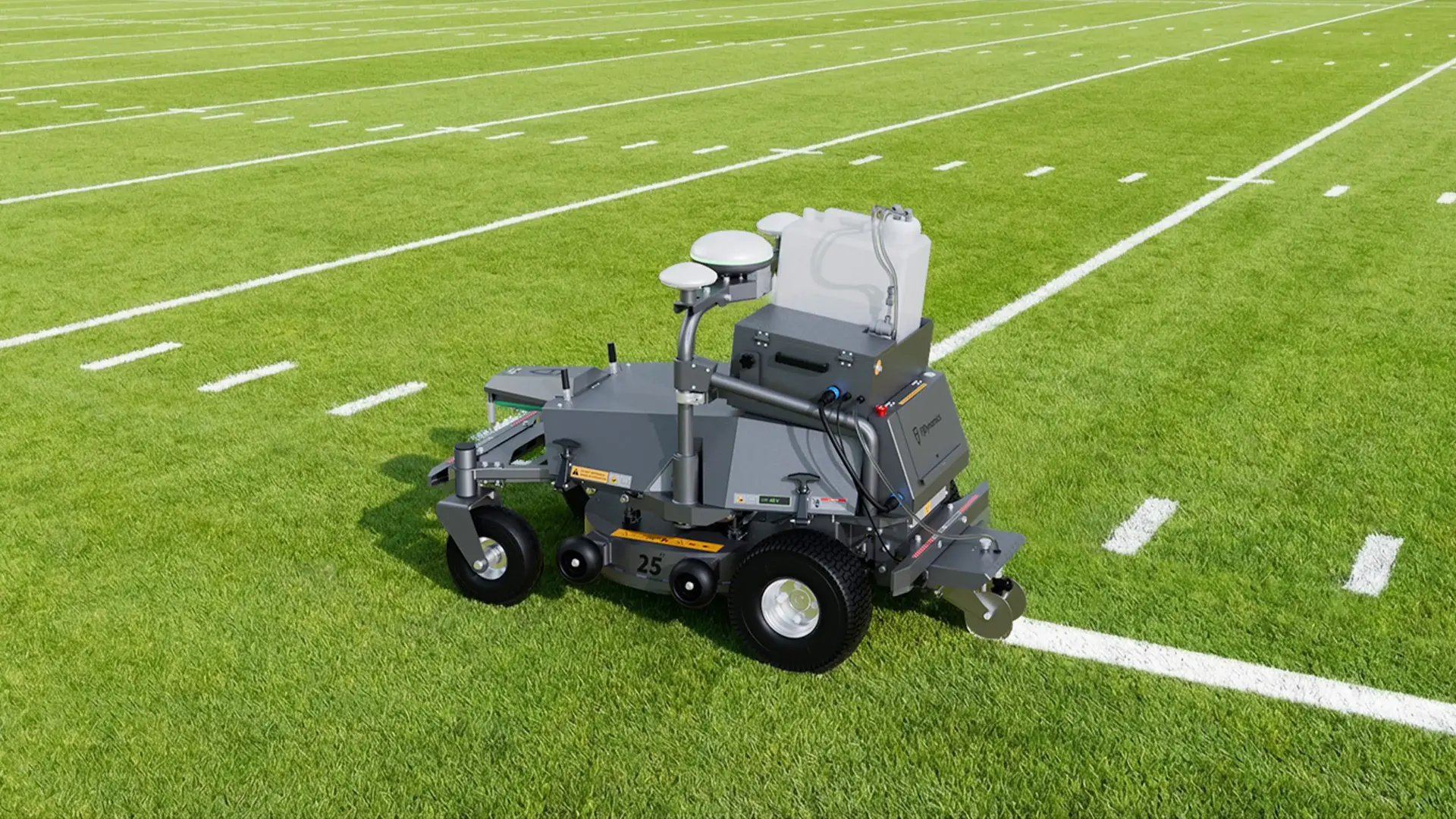

See the LM01 Line Marker Kit on your turf.
SmartTurf demonstrates, deploys and supports every machine we sell, here in New Zealand. Book a demo on your own site and see the numbers for yourself.
